RF Communication and Signals Experiments

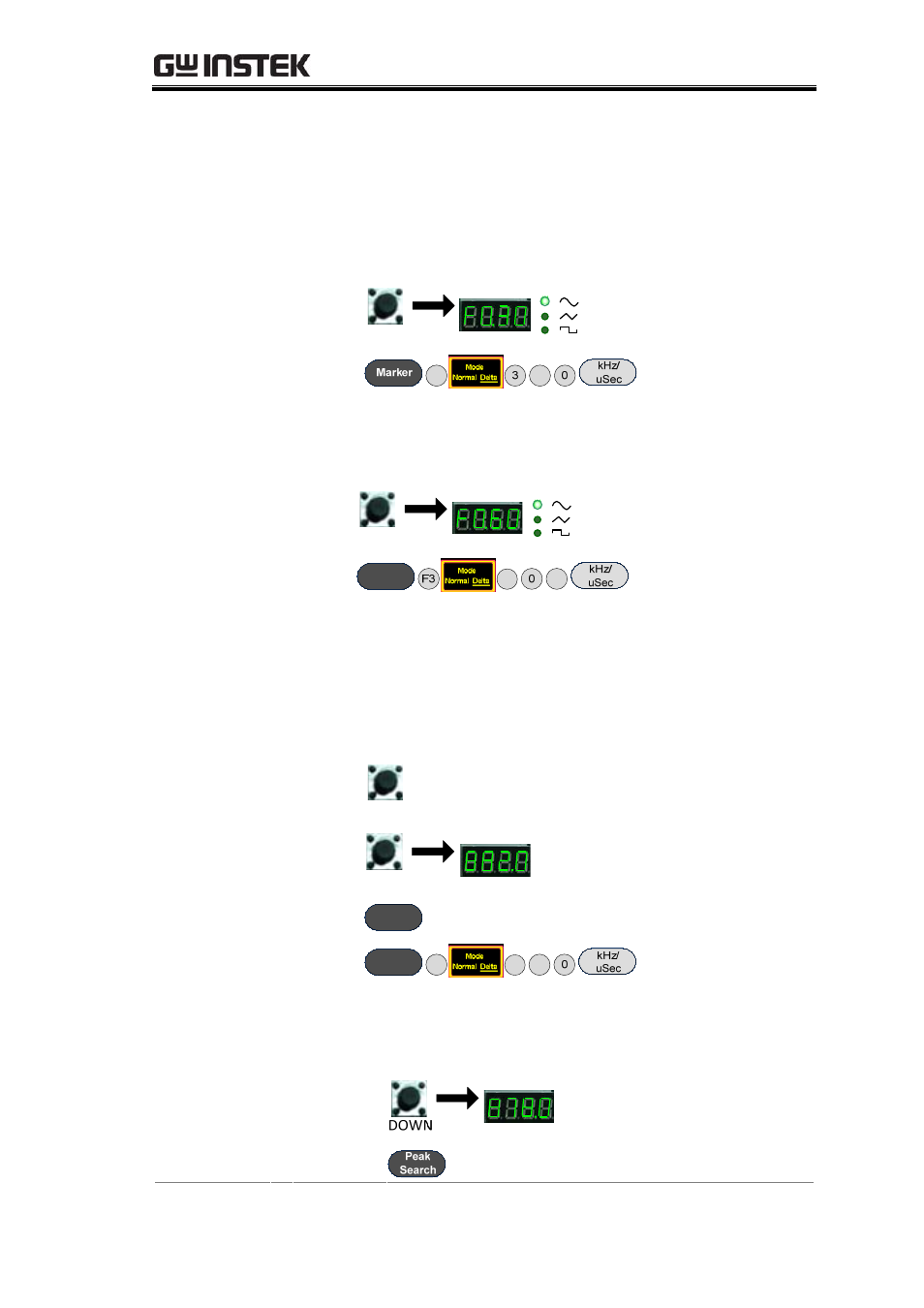

8. Turn the potentiometer clockwise to the maximum. Adjust the
UP button on the Baseband module to adjust the frequency of
modulating signal. Do you see any change in the AM wave
spectrum? Compare the experiment results with that of the
original baseband frequency of 100kHz and record it to Table 5-
5.
Step7
UP
Step8
F3 0
9. Use the UP button on the Baseband module to adjust the
frequency of the modulating signal. Do you see any change in
the AM wave spectrum? Record the result in Table 5-5.
Step9
UP
Step10 Marker
6 0
10. After completing the experiment steps above, press the Reset
button, and then use the UP button on the RF Synthesizer/FM
module to change the frequency of the carrier signal. Is there is
any change in the AM wave spectrum? Compare the experiment
result with that of the original carrier frequency of 880MHz and
record it to Table 5-6.
Step11
Reset
Step12
UP
Step13
Peak
Search
Step14 Marker
F3 1 0
11. Use the DOWN button on the RF Synthesizer/FM module to
change the frequency of the carrier signal. See if there is any
change to the AM wave spectrum and record it Table 5-6.
Step15
Step16
65
