For the last two steps, the span is quite large, and may produce
some errors. To find the second and third harmonic, you may
need to fine-tune the frequency. Record the results in table 4-2.
Measure the RF

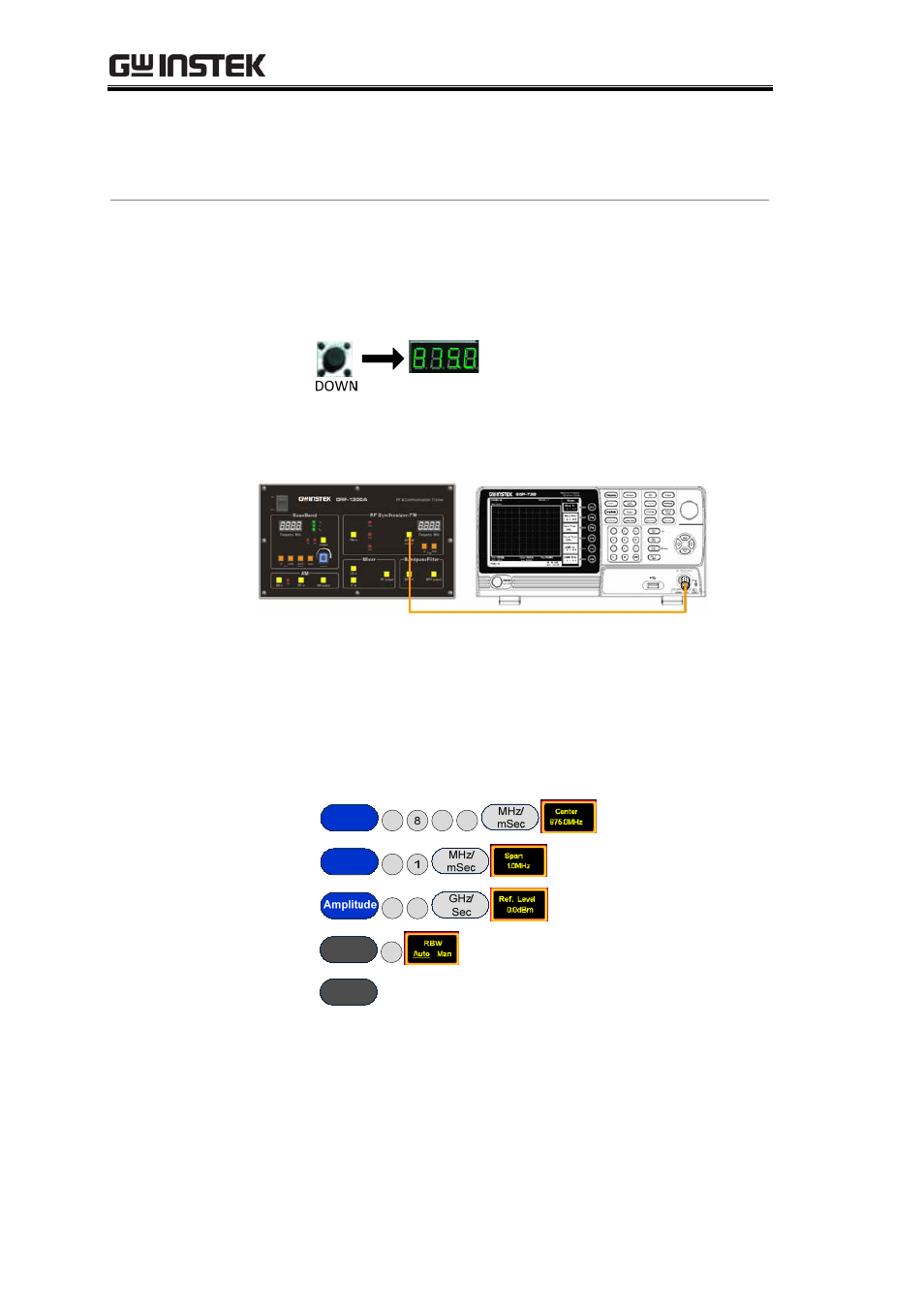

phase noise. 1. Turn on the GRF-1300A and the GSP-730.
2. Set the GRF-1300A RF Synthesizer/FM as follows:
• Carrier frequency: 875MHz
Step1
3. Connect the RF/FM output port on the GRF-1300A to the
input terminal on GSP-730 with the RF cable.
4. Set the GSP-730 as follows:
• Center frequency: 875MHz
• Span: 1MHz
• Reference level: 0dBm
• RBW: Auto (default state is 50kHz)
Step1 Frequency
F1 7 5
Step2 Span
F1
Step3
F1 0
Step4 BW
F1
Step5
Peak
Search
5. Record the carrier power. Set the deviation of the carrier
frequency f
m
to a deviation ( of 100kHz. Use the Delta
50
