Using the Multimeter
83
U
SING THE
M
ULTIMETER
This chapter describes the multimeter
functionalities in the GDS‐122. Functionalities
includes three major items (Voltage, Current,
Impedance) and three additional items (Diode,
Continuity, Capacitance). The current
measurement and capacitance measurement use
extension modules to deal with large current and
small capacitance, respectively. Delta
measurement and automatic range switching
features offer flexibility and convenience.
Activating the Multimeter .........................................
199H
84
Measuring Voltage ...................................................
200H
85
Measuring Current ...................................................
201H
87
Measuring Impedance ..............................................
202H
89
Measuring Diode .....................................................
203H
91
Measuring Continuity ...............................................
204H
92
Measuring Capacitance ............................................
205H
93
GDS-122 User Manual
84
12B
Activating the Multimeter

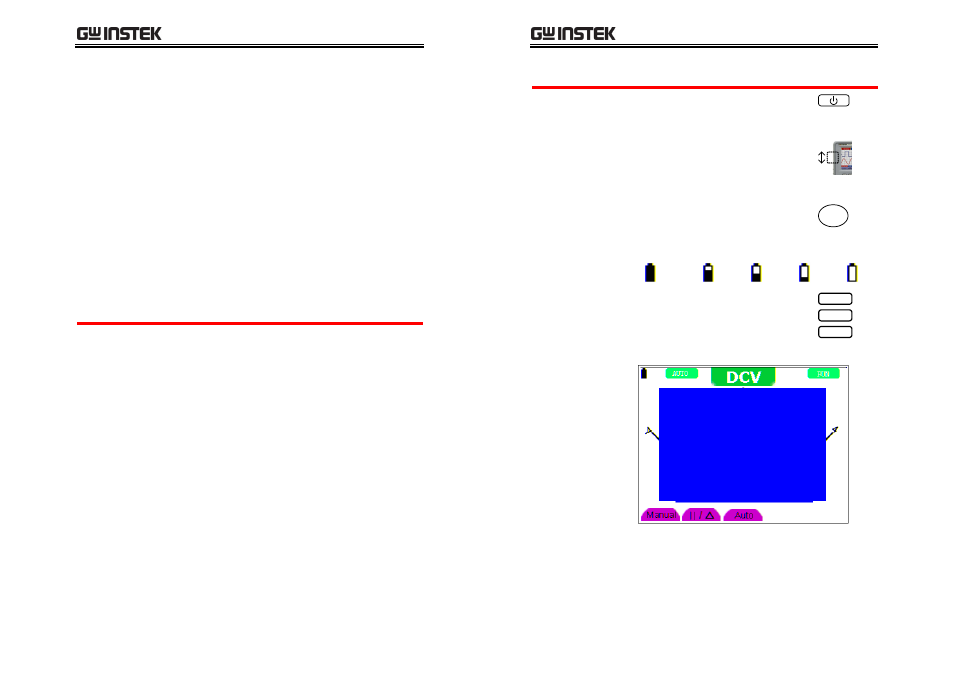

Panel operations 1. Press the power switch. The
welcome screen with the corporate
logo appears on the display.
2. To adjust display brightness, use
the switch on the side: up (bright)
or down (dark).
3. Press any key (example: MENU
key) to activate the display. The
battery icon at the top left corner of
the display shows the battery level.
(Example)
MENU
> 75% 75% 50% 25% < 25%
4. Press A (current), V (voltage), or R
(impedance, diode, continuity,
capacitance) switch to proceed. A
warning message might appear to
remind you of correct connections.
A
V
R
Plug the Multimeter
test leads in the
right position!
(Press any key to make sure)
5. Press any key to cancel the warning message
and resume the measurement.
