Using the Oscilloscope
79
66B

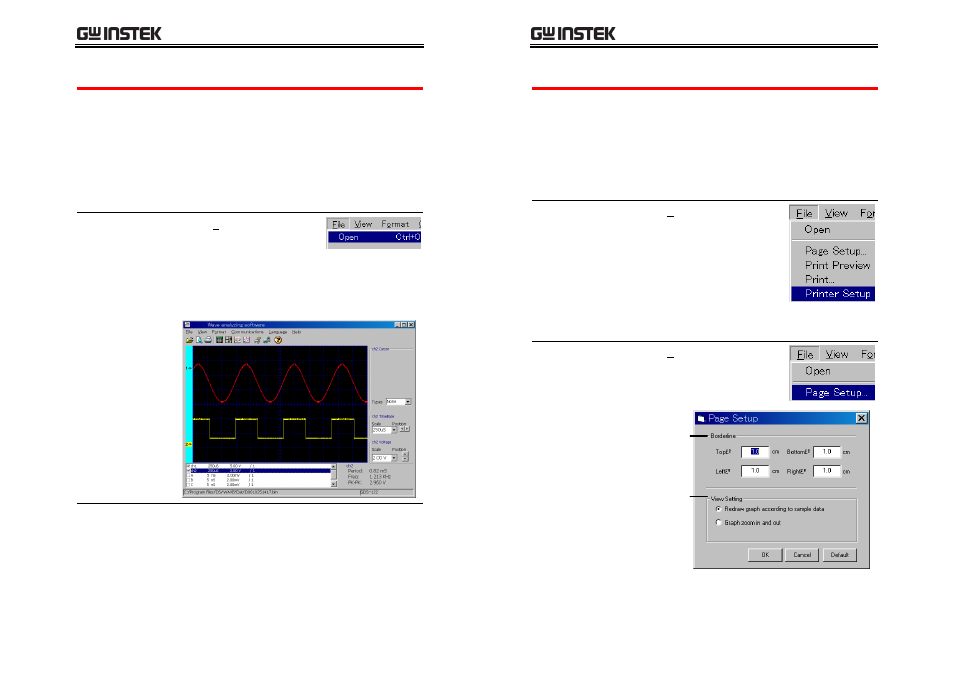

Recalling waveforms
Overview You can recall the waveforms from the PC in two
ways. For details of saving them, see page
197H
77.
• Recalling waveform data (*.bin file, for viewing
in the software)
• Recalling data points (*.txt file, for data
analysis such as in graphs and maps)
For details of recalling waveforms into the GDS‐
122 hardware, see page
198H
55.
Recalling the
waveform data
1. Select File > Open from the
menu or press the shortcut
key, Ctrl + O.
2. The File Open dialogue opens. Select one of the
SPB bin file (*.bin) and click OK.
3. The waveform(s) will be recalled in the screen.
Recalling the
data points
1. For recalling the data points, you need to open
a text editor or a spreadsheet program like
Excel, in which you can organize the data and
create graphs and maps for advanced analysis.
2. Open the saved *.txt file from the application.
GDS-122 User Manual
80
67B
Printing out waveforms
Overview You can print out the screen contents to a printer
connected to the PC. When you are printing the
waveform for the first time, follow all the steps in
the following order.
1. Setting up the printer
2. Setting up the page format
3. Printing out
Setting up the
printer
1. Select File > Printer Setup
from the menu. The standard
printer setting dialogue
opens.
2. Select the printer and its properties, paper size,
and orientation.
Setting up the
page format
1. Select File > Page Setup from
the menu. The Page Setup
dialog window opens.
Borderline
View Setting
2. Set the borderlines (print margins). The range
is 0 to 10.0cm each.
