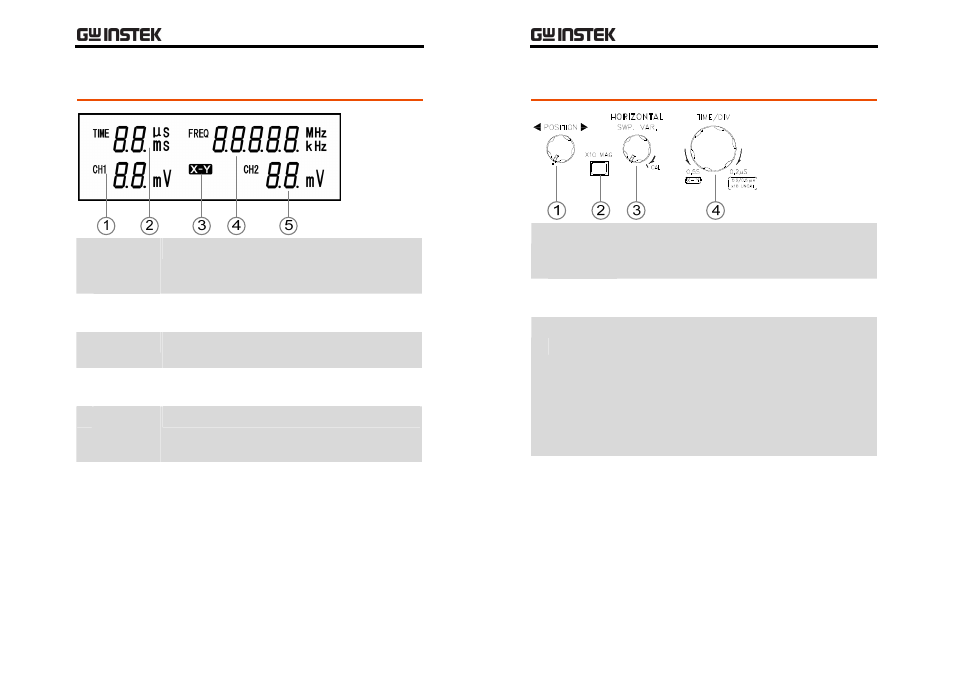

PANEL OVERVIEW
15
LCD Display
1 CH1
Vertical
Scale
Shows the CH1 vertical scale.
2 Horizontal
Scale
Shows the horizontal scale.
3 X-Y Mode When turned on, indicates that the X‐Y mode is
activated. For X‐Y mode details, see page32.
4 Signal
Frequency
Shows the waveform frequency. For frequency
measurement details, see page31.
5 CH2
Vertical
Scale
Shows the CH2 vertical scale.
GOS-630FC User Manual
16
Horizontal Controls
1 Horizontal
POSITION
Knob
Controls the horizontal position of traces and light
spots.
2 ×10 MAG
Switch
Magnifies the horizontal scale by a factor of 10. For
horizontal magnification details, see page33.
3 SWP VAR
Knob
Adjusts the horizontal scale.
At the minimum position, the horizontal scale
becomes 2.5 times wider than the original value
selected by the TIME/DIV knob. For example, if the
original scale is 1mS/DIV, the adjusted scale
becomes 2.5mS/DIV.
At the maximum (CAL) position, there is no
change in the horizontal scale.
4 TIME/DIV
Knob
Controls the horizontal scale from 0.2 μs/div to 0.5
s/div in 20 steps.
When “X‐Y” is selected, the oscilloscope works in
the X‐Y mode. For X‐Y mode details, see page32.
