PRODUCT OVERVIEW
11
Main Features
High intensity
and
acceleration
CRT The CRT incorporates high beam transmission,
high intensity, and a 2kV high acceleration voltage.
The CRT displays clearly readable traces even at
higher sweep speeds.
Wide
bandwidth and
sensitivity In addition to the DC‐30MHz (‐3dB) wide
bandwidth, the oscilloscope provides a 1mV/DIV
high sensitivity. The 30MHz frequency range is
obtained by an improved triggering
synchronization.
Frequency
Counter A built‐in 5‐digit frequency counter offers ±0.02%
accuracy between 1kHz and 30MHz, and ±0.05%
between 50Hz and 1kHz.
Automatic
timebase
adjustment Pressing the AUTO TIMEBASE key automatically
adjusts the sweep time to an appropriate range.
Alternate
triggering Even when observing two waveforms in different
frequencies, both waveforms can be stably
triggered using the alternate triggering mode.
TV sync
triggering: The oscilloscope has a sync separator circuit for
the TV‐V and TV‐H signal triggering.
CH1 output The CH1 signal is output from a rear panel
terminal, which can be applied to external devices.
Z-axis input Display intensity can be controlled via the TTL
compatible z‐axis input on the rear panel.
X-Y mode The X‐Y mode compares the CH1 and CH2 signal
amplitude. It is useful for comparing the phase
difference.
Buzzer alarm Incorrect operation generates a warning beep.
GOS-630FC User Manual
12

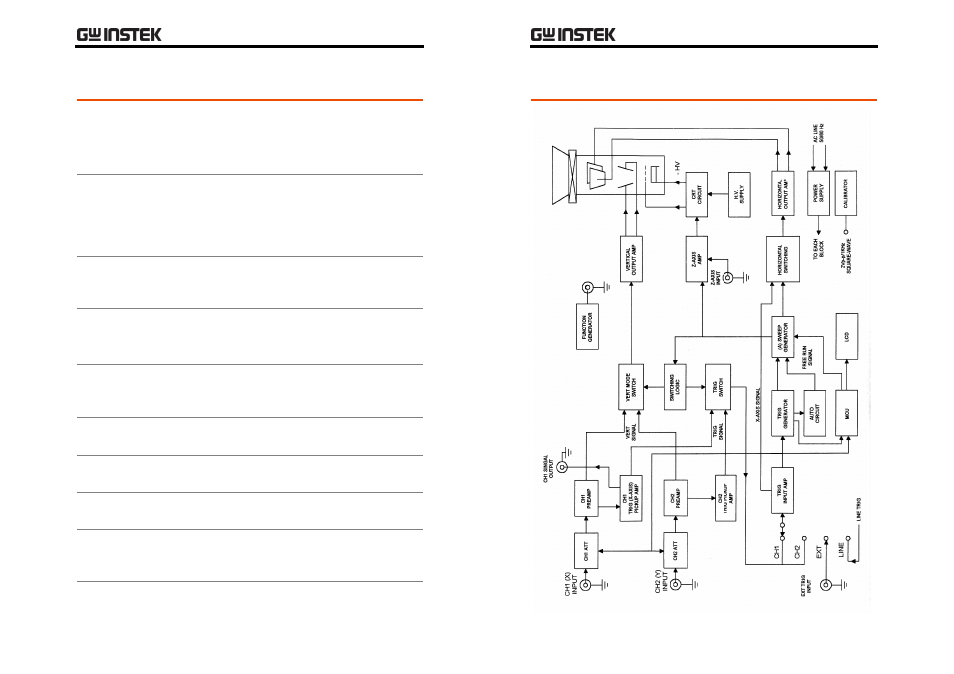

Block Diagram
