Model X40
Model X40 Instruction Manual Rev. 3.3 Page 37 of 64
SW2
MSD
SW3
LSD
SW1
RF Channel
Modbus Address

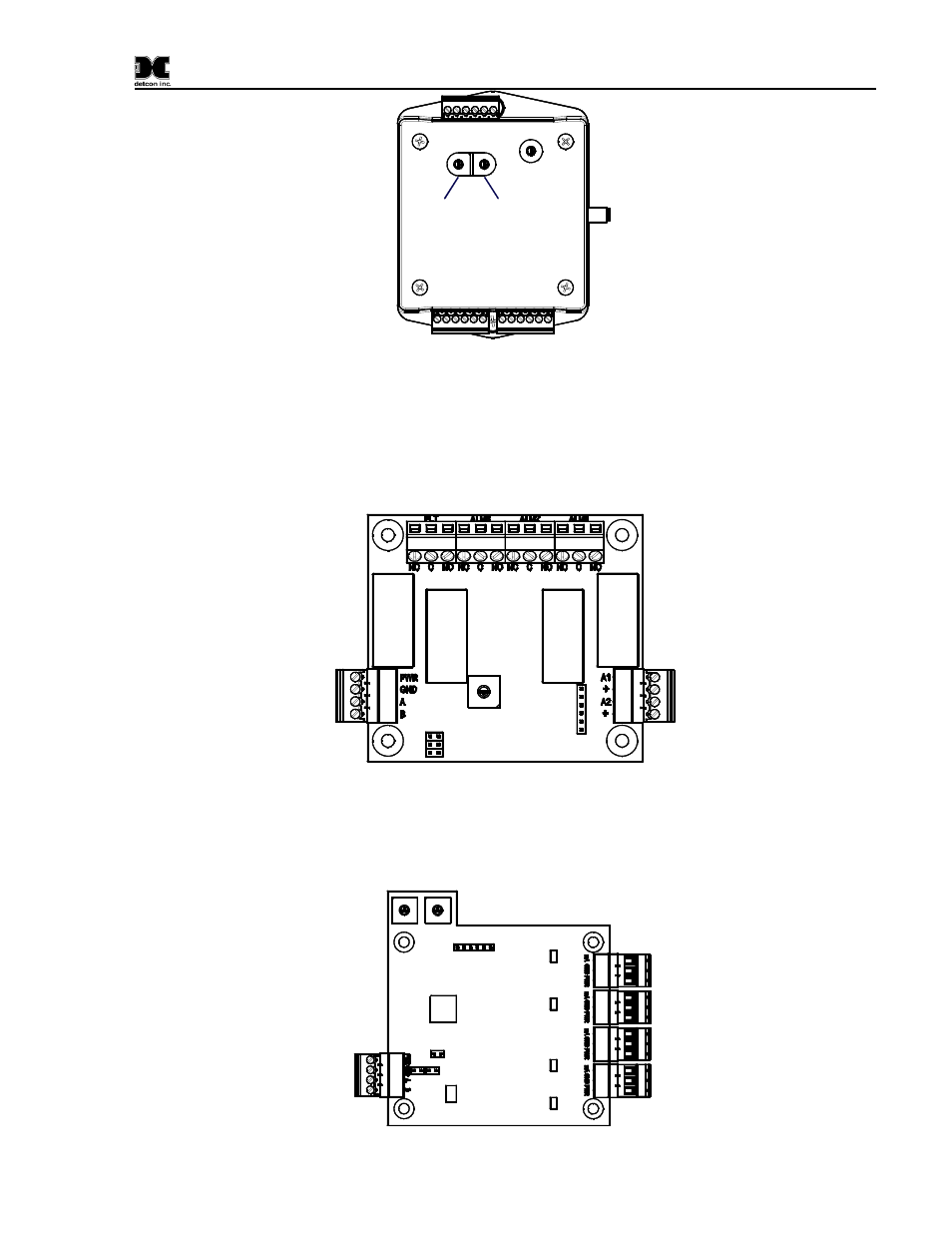

Figure 36 CX/CXT Wireless Transceiver
The CXT Slave Controller has the option of employing a Relay Output PCA. The relay output PCA of the
CXT Slave Controller is controlled by the CXT Slave Controller, and is not, and should not be considered
as part of the X40 Alarms. The X40 has no control over the CXT Slave Controller‘s relay output PCA.
This Relay Output PCA can only be set according to the Slave Controller, and can only be used to control
alarms that are set up by, and attached to the Slave Controller.
Modbus
Address
SW1
0x8+LSD
Figure 37 CX/CXT Relay Output PCA
The analog input card of the CXT Slave Controller functions similar to a DA4 module. It is found mounted
under the relay output PCA.
SW1
LSD
SW2
MSD
Modbus Address
Figure 38 CX/CXT Analog Input PCA
