Model X40
Model X40 Instruction Manual Rev. 3.3 Page 21 of 64
2.4 N7 Enclosure Installation
CAUTION
The X40-32-N7 controller can support up to a maximum of 32 sensors and any
associated I/O modules, but no I/O modules can be installed in the controller. All
I/O modules must be mounted separately by the customer. The N7 version does not
supply power to sensors. Power must be supplied by the customer for sensors and
any I/O modules. Damage to the controller may result if the maximum number of
sensors is exceeded.
1. Securely mount the X40-32-N7 controller in accordance with the mounting dimensions provided in
Figure 18.
11"
9.15"
3.25"
MODEL X40-32-N7
Controller

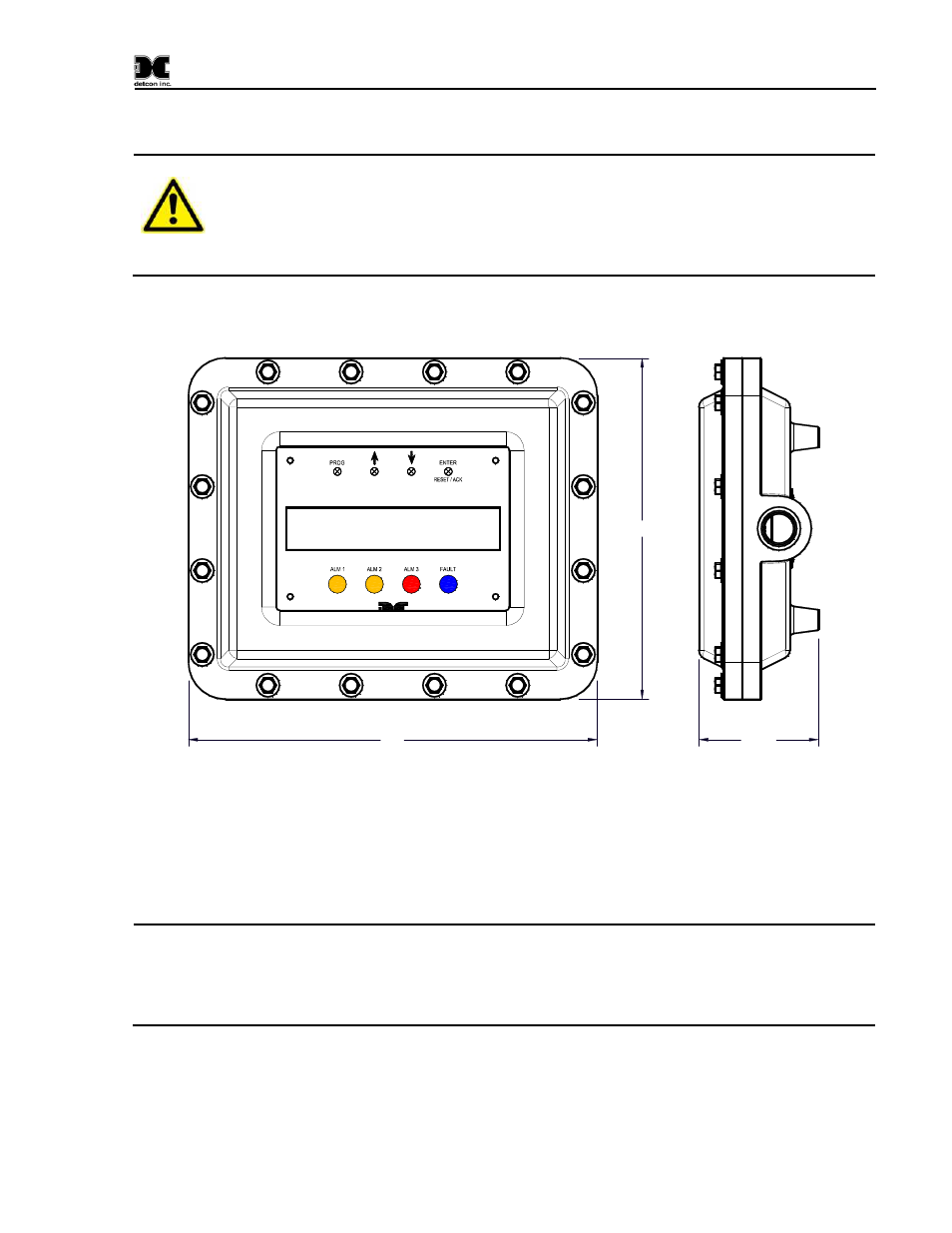

Figure 18 N7 Controller Mounting and Dimensional View
2. Verify that appropriate cable glands are used to maintain the enclosure rating.
3. If the N7 enclosure is not provided with a J-Box from the factory, remove the faceplate from the
controller enclosure to access the PCA (Figure 19). All appropriate wiring must be connected
directly to the PCA J7 in this configuration.
NOTE
J7 Connections are as follows:
PWR/GND
DC power connection to power X40-32-N7 controller
A2/B2 Secondary Modbus™ connection (COMM2 Slave)
A1/B1 Primary Modbus™ connection (COMM1 Master)
SW External switch connection for RESET/ACK function (Normally Open)
