Model X40
Model X40 Instruction Manual Rev. 3.3 Page 13 of 64
2.0 Installation
2.1 Safety Guidelines
If equipment is used in a manner not specified by Detcon, the protection provided by the equipment may be
impaired.
CAUTION
The user must consult this manual for more information about any location
marked with this symbol.
DANGER
Danger of electrical shock. User must ensure that power has been
disconnected prior to installation or servicing of the equipment.
PROTECTIVE
EARTH
TERMINAL This symbol identifies a terminal that is the connection point for a protective
earth conductor. Only the protective earth conductor should be connected
here.
2.2 N1P and N1R Enclosure Installation
CAUTION
The X40-32-N1P and X40-32-N1R units can power a maximum of 32 sensors.
Damage to the power supply may result if the maximum number of sensors is
exceeded.

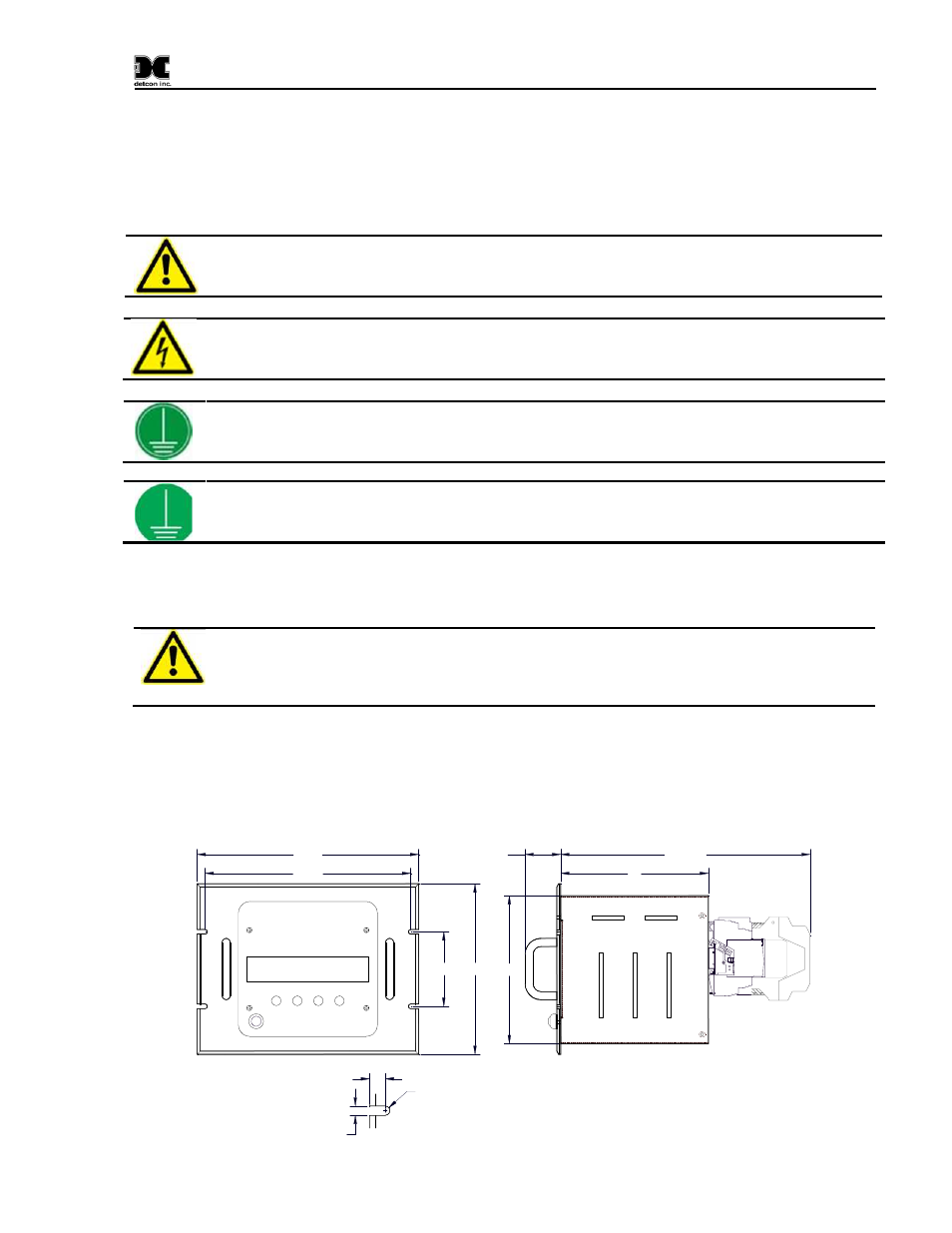

1. Provide a panel opening that is 9.25" wide by 7.5" high for the N1P controller. The N1R controller
is meant to be mounted in a 19” Rack.
2. Securely mount the X40-32-N1P or X40-32-N1R controller at an indoor location using the
mounting dimensions provided in Figure 6 and Figure 7. The N1R is made to fit a 19” Rack.
3.5" 8" 6.94"
7"
1.687" 11.825"
0.218"
0.375"
R0.109"
Slot Detail
I/O Modules
(Qty. of 2 Max)
9.75"
10.5"
FUNCTIONAL
EARTH
TERMINAL
This symbol identifies a terminal that provides an earth ground reference
point. These terminals are not for safety earthing purposes.
