Model X40
Model X40 Instruction Manual Rev. 3.3 Page 16 of 64
2.3 N4X Enclosure Installation
CAUTION
The power supply for the X40-08-N4X controller can power a maximum of
eight sensors even though the controller is capable of communicating with 32
devices. An additional power supply will be required if powering more than
eight sensors or an upgrade to Model X40-32-N4X is needed which can power
a maximum of 32 sensors. Damage to the power supply may result if the
maximum number of sensors is exceeded.
CAUTION
The wall attachments must be able to withstand a force four times the weight of the
equipment.
CAUTION
The X40 must be mounted in a location that does not impair the operation of the
external disconnection device. Internal Disconnect Terminal Blocks are provided
for the removal of power at the unit when needed.
1. Securely mount the enclosure in accordance with the dimensions provided in Figure 9 (X40-08-
N4X) or Figure 10 (X40-32-N4X).
8"
11.85"
13.75"
12.75"
6.5"
6.79"
Ø0.31"
Mounting
Bracket

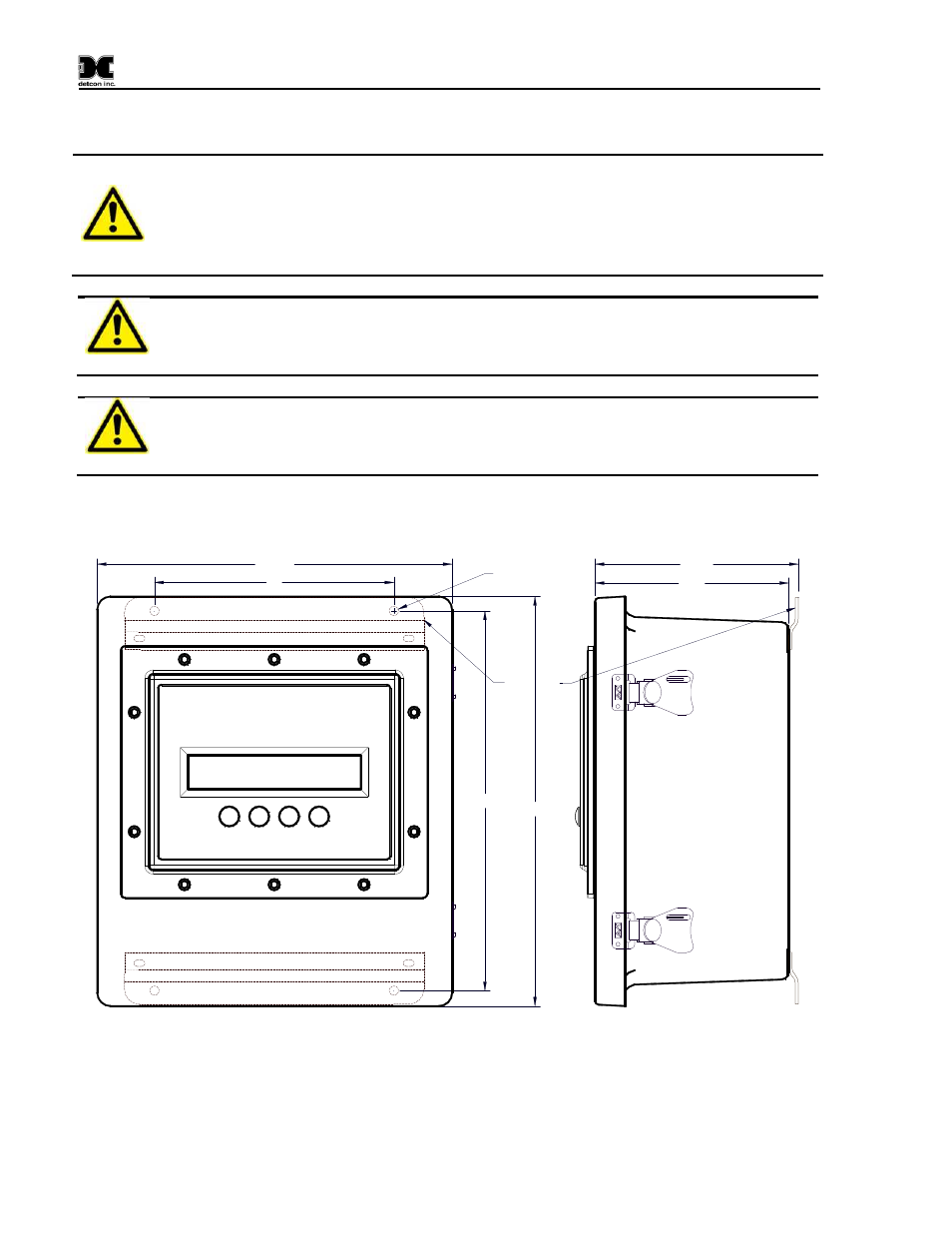

Figure 9 X40-08-N4X Controller Mounting and Dimensional View
