Model X40
Model X40 Instruction Manual Rev. 3.3 Page 7 of 64
1.9 Operator Interface
Reference the Menu Flow Chart (Figure 2) to learn how to easily navigate the menus and make changes.
MAIN DISPLAY
NORMAL OPERATION
UTILITY MENU
SET RF SILENCE
AND RF SLEEP
UTILITY MENU
SET COMM BAUD RATES
UTILITY MENU
SETUP CHANNEL DATA
MAIN MENU
SET CHANNEL ALARMS
UTILITY MENU
SET MODBUS TIMEOUTS
RF SILENCE: ON/OFF
RF SLEEP: ##:##
RF SLEEP: ON/OFF
COMM1 BAUD RATE: ####
COMM2 BAUD RATE: ####
RESPONSE TIMEOUT: ####
INTERPOLL DELAY: ####
SLAVE ID: ## in hex
DEVICE TYPE: XXXXXX
ANALOG INPUT: #
DECIMAL POINT: #
RANGE: #####
TYPE: XXXXXXXXX
RL4 BANK: XXX
ALM1 LEVEL: ##
ALM1 ASCENDING: Y/N
ALM2 LEVEL: ##
ALM2 ASCENDING: Y/N
ALM3 LEVEL: ##
ALM3 ASCENDING: Y/N
UTILITY MENU
SET MODBUS ADDRESS
MAIN MENU
SET RELAY FUNCTION
MAIN MENU
INHIBIT & ALARM TEST MODE
MAIN MENU
SYSTEM DIAGNOSTICS
UTILITY MENU
DISPLAY SETTINGS
MODBUS ADDRESS: ###
LATCHING (Bank1): Y/N
ENERGIZED (Bank1): Y/N
SILENCEABLE (Bank1): Y/N
LATCHING (Bank2): Y/N
ENERGIZED (Bank2): Y/N
SILENCEABLE (Bank2): Y/N
INHIBIT MODE: #:##
INHIBIT MODE: START/STOP
ALARM TEST MODE: ON/OFF
BRIGHTNESS: ###
BACKLIGHT TIMEOUT: #:##
CONTRAST: ###
Multiple Channels
Multiple Channels
Multiple Relays
(Fault, Alm1, Alm2, Alm3)
LCD DISPLAY TEST
LED DRIVER TEST
EXT RESET SWITCH TEST
RELAY DRIVER TEST
MODBUS DRIVER TEST
MAIN MENU
AUTO CONFIGURE SYSTEM
CHANNELS: ##
AO4S: #
RXT-320S:##
RL4/ALM BANK 1: #
RL4/ALM BANK 2: #
MAIN MENU
TIME AND DATE
TIME: HH:MM:SS
DATE: MM/DD/YY
MAIN MENU
VIEW TWA & PEAK
DATE,TIME,CHANNEL,
TWA:######,PEAK: ######
UTILITY MENU
UTILITY MENU
SET LOW BATTERY ALARMS
TTE(DD:HH:MM): ##:##:##
SOC(%): ###%
UTILITY MENU
SET CXT LOW BATTERY
THRESHOLD
THRESHOLD: 5-7 VDC
UTILITY MENU
SET MODBUS UPDATE INTERVAL
UPDATE INTERVAL: 0-5 mins
MAIN MENU
SETUP CHANNEL DATA MENU
SLAVE ID: ##
DEVICE TYPE:
ANALOG INPUT: #
DECIMAL POINT: #
RANGE: ###
TYPE:
RL4 BANK CNT: #
Multiple Channels

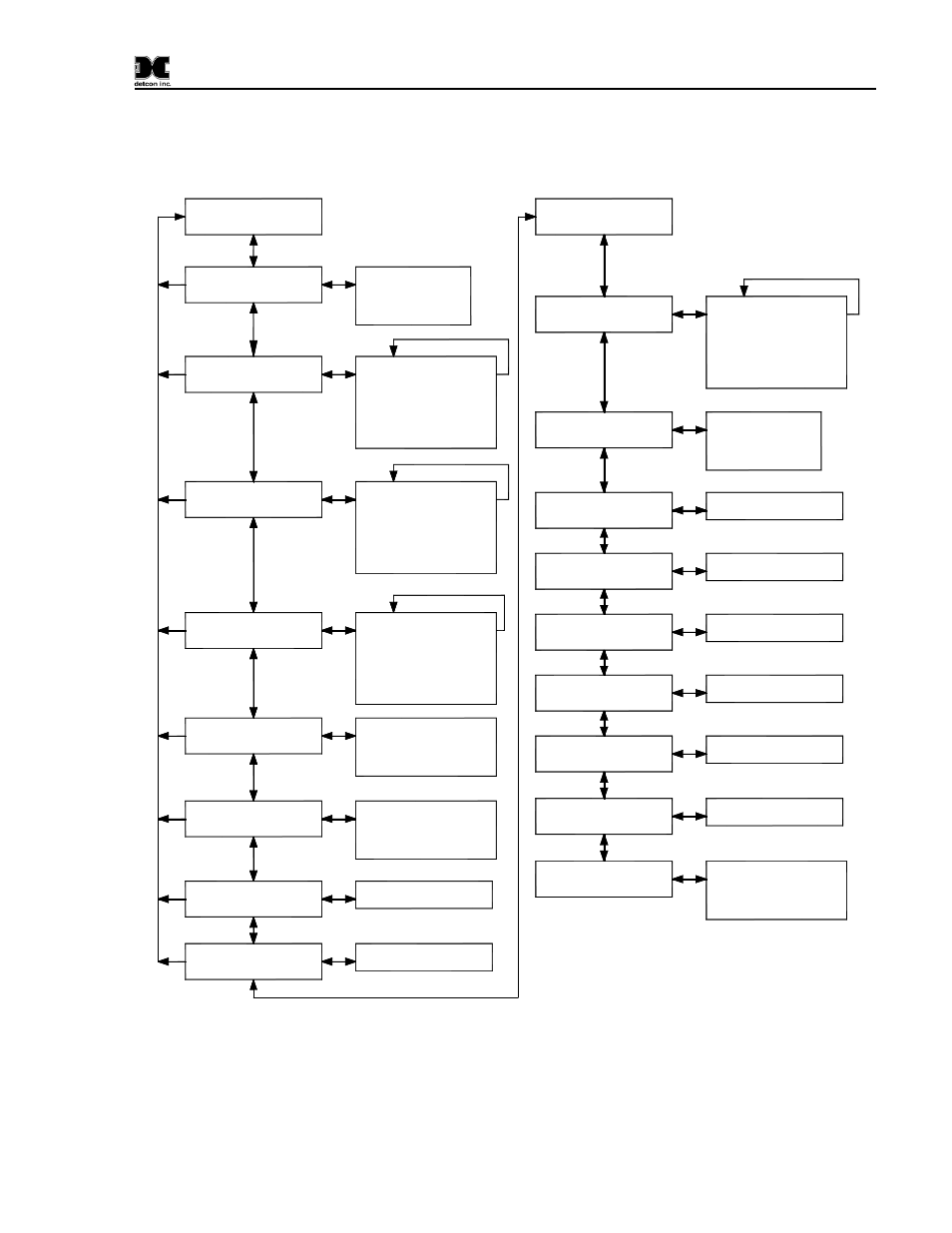

Figure 2 Menu Flow Chart
