Model X40
Model X40 Instruction Manual Rev. 3.3 Page 8 of 64

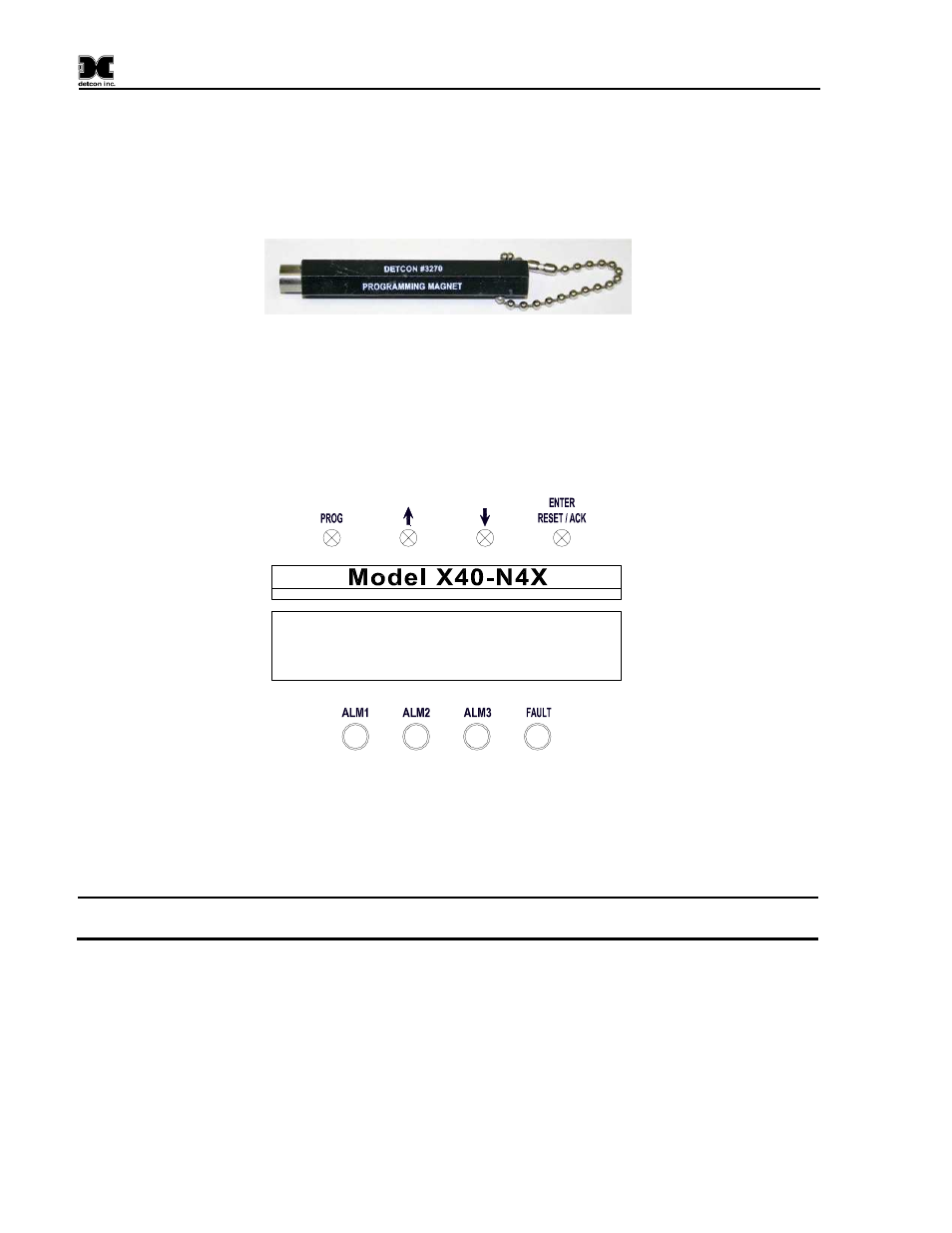

1.9.1 Magnetic Programming Tool
The magnetic programming tool (Figure 3) is used to operate the magnetic switches. For switch activation,
the programming magnet is briefly held on the switch marker (
) and then removed. This action will be
referred to as a "swipe" for the remainder of this manual.
Figure 3 Magnetic Programming Tool
1.9.2 Front Panel User Interface
The front panel user interface (Figure 4) contains four switches necessary to configure the X40 controller.
I n t e g r a t e d A l a r m & C o n t r o l S y s t e m
Figure 4 Front Panel User Interface
PROG Switch
From the Main Display, the PROG switch enters into the Main Menu. Once inside the Main Menu, the
PROG switch acts as an "Escape" switch that moves backwards in the menu flow chart.
NOTE
While in Main Menu mode there are no updates to gas readings and hence no alarms will
take place.
 Up Arrow Switch
This switch moves the user up the Main Menu flow chart. It is also used to change selected entries in
the menu selections in the upward direction.
 Down Arrow Switch
This switch moves the user down the Main Menu flow chart. It is also used to change selected entries
in the menu selections in the downward direction.
ENTER and RESET/ACK Switch
This switch has multi-purpose use:
