NOTE
Proper electrical installation of the wireless radio module assembly is critical for
conformance to Electrical Codes and to avoid damage due to water leakage. A conduit seal
is typically required to be located within 18" of the transceiver assembly if a conduit run is
required. Crouse Hinds type EYS2, EYD2 or equivalent are suitable for this purpose.
NOTE
Any unused ports should be blocked with suitable
3
/
4
" male NPT plugs. Detcon supplies one
3 /
4
" NPT male plug with each J-box enclosure. If connections are other than 3 /
4
" NPT, use
an appropriate male plug of like construction material.
NOTE
Use suitable cord connectors (cable glands) for cable entry to the X40 controller or the
connecting Junction Box.
NOTE
The Detcon Warranty does not cover water damage resulting from water leaking into the
enclosure.
5. If the unit comes with an AC/DC Adapter, ensure that the AC signal/wiring is not housed in the
same conduit as the DC signal/wiring.
V
A
C
(N
)
V
A
C
(L
)
G
N
D
AC Power from
External Voltage Source
Customer Supplied Wiring
(In)
G
rn
W
h
t
B
lk
B1(-)
A1(+)
PWR(+)
GND(-)
Customer Supplied Modbus Wiring to
I/O Modules and Sensors
Wiring to
X40-32-N7 Controller
J7 Connector
A1(+)
B1(-)
A2(+)
B2(-)
B2(-)
A2(+)
Not Used
Not Used
A1 and B1 are the
RS-485 Master Port
A2 and B2 are the
Slave RS-485 Port
Power to I/O Modules
and Sensors must be
provided separately.
+24V
GND
A
C
D
B
D
C
B
GND
+24V
A
J1 J2
J3
U1
N L E
AC IN

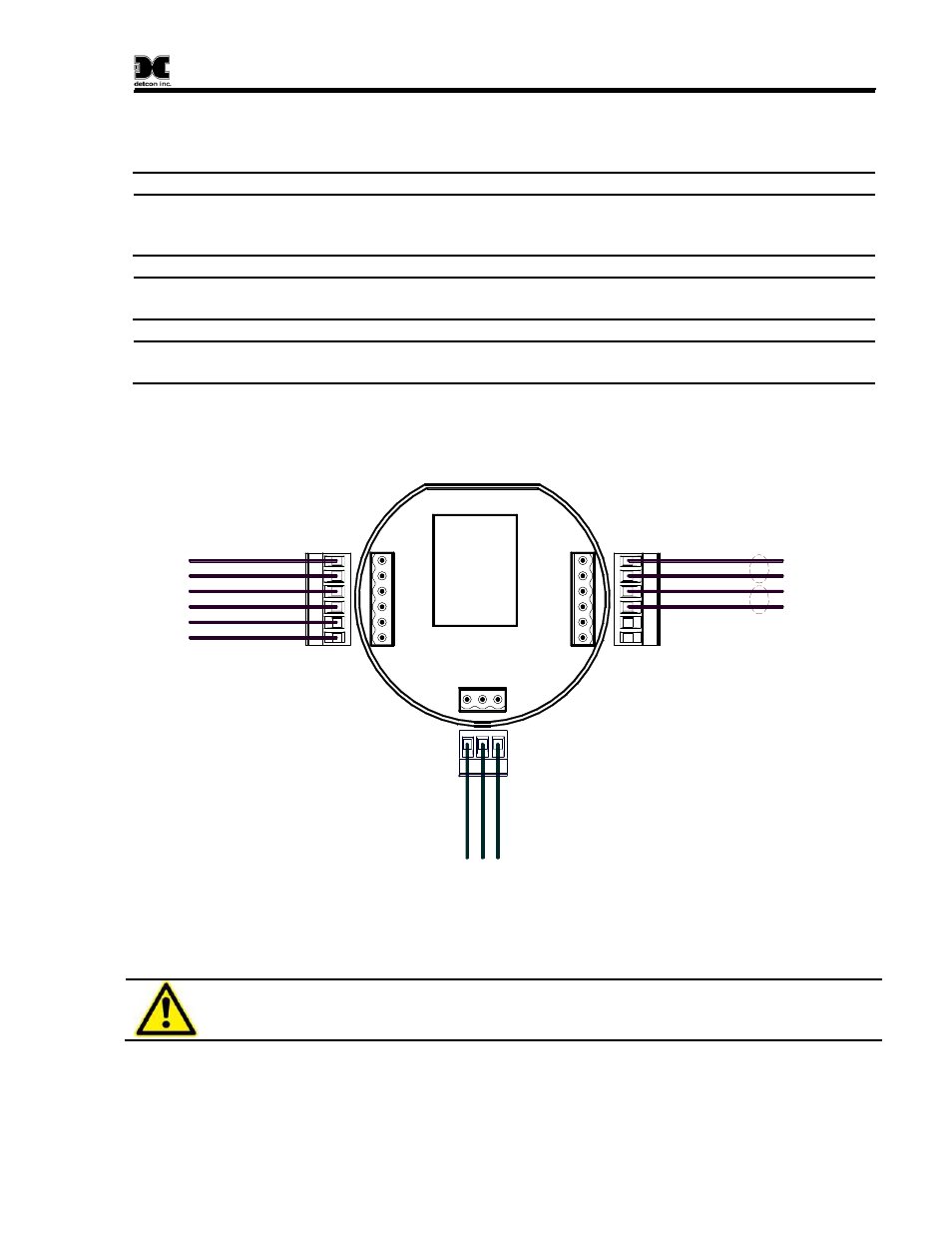

Figure 21 N7 AC/DC Converter Board Wiring
CAUTION
The cable used to connect to the terminals of the X40-32-N7 must be rated for a
minimum of 105ºC.
6. Install AC power and I/O connections when the N7 is supplied with a J-Box and an AC/DC
converter as follows:
a. Connect 100-240VAC input wiring to the J3 connector (labeled AC IN) of the converter
board.
