Chapter 4
78 Seed Hawk™ Viper Pro™ Installation & Operation Manual

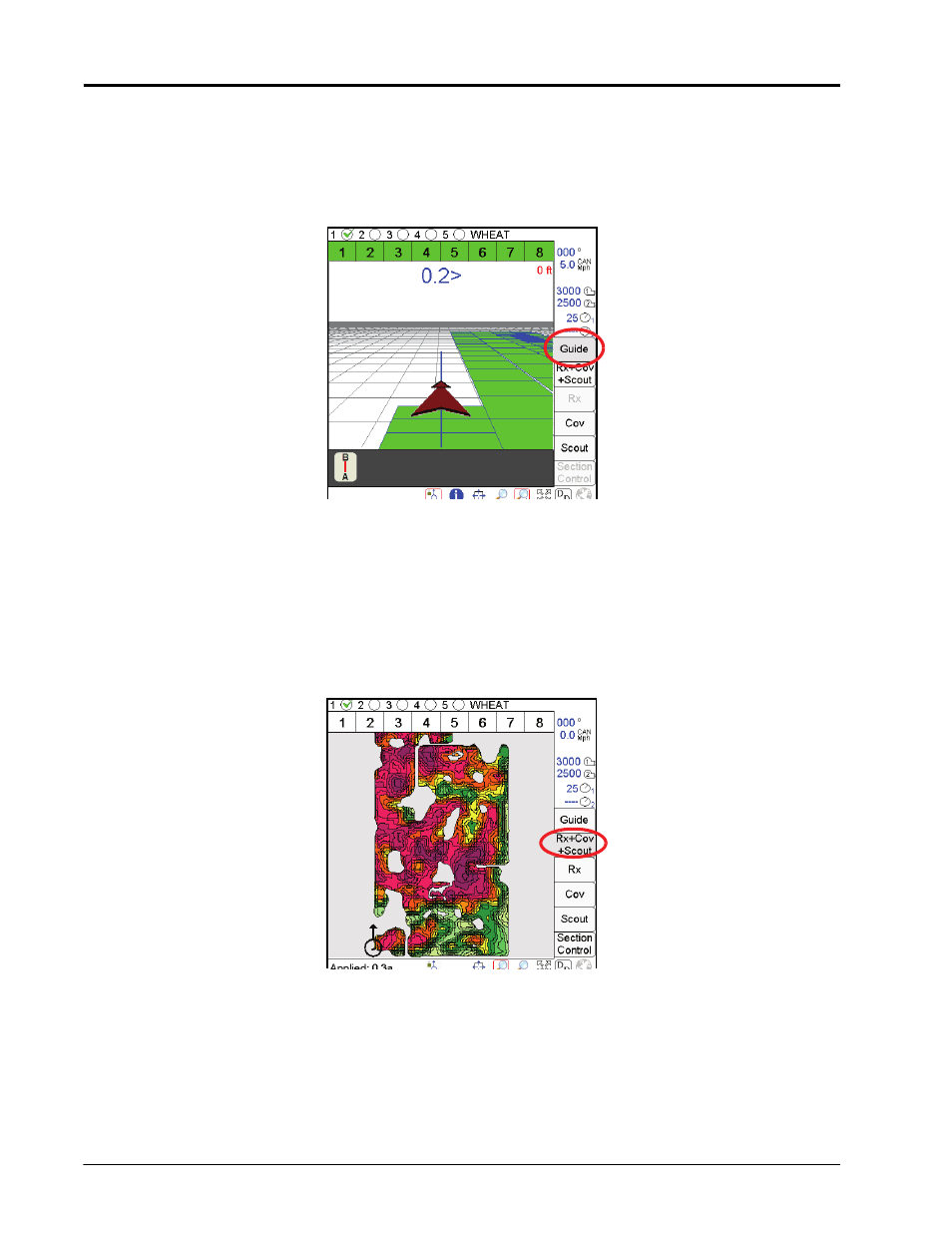

Guide Tab
Swath guidance is a standard feature with the Viper Pro console. During a job, the Guide tab displays guidance
information such as the guidance path and swath number for certain guidance paths. The Guide tab is only
available if the operator selects the Swath Guidance option during the Start Job procedure. Refer to Chapter 8,
Viper Pro Guidance for more details on using the Viper Pro Guidance features and available swath patterns.
Rx+Cov+Scout Tab
The Rx+Cov+Scout tab displays scouting and coverage map information on the same screen. Scouting
information such as weed or insect infestations and field boundaries or water ways may be pre-recorded and
recalled for following jobs. In addition to the coverage map and scouting information, the Rx+Cov+Scout tab
may also display prescription map information for the selected field. The coverage map displays over the top of
the prescription map as a reference. Scouting information is only displayed on this tab. To edit or create
scouting zones, access the Scout tab.
