Page 106
Chapter 4
96
Seed Hawk™ Viper Pro™ Installation & Operation Manual
4.

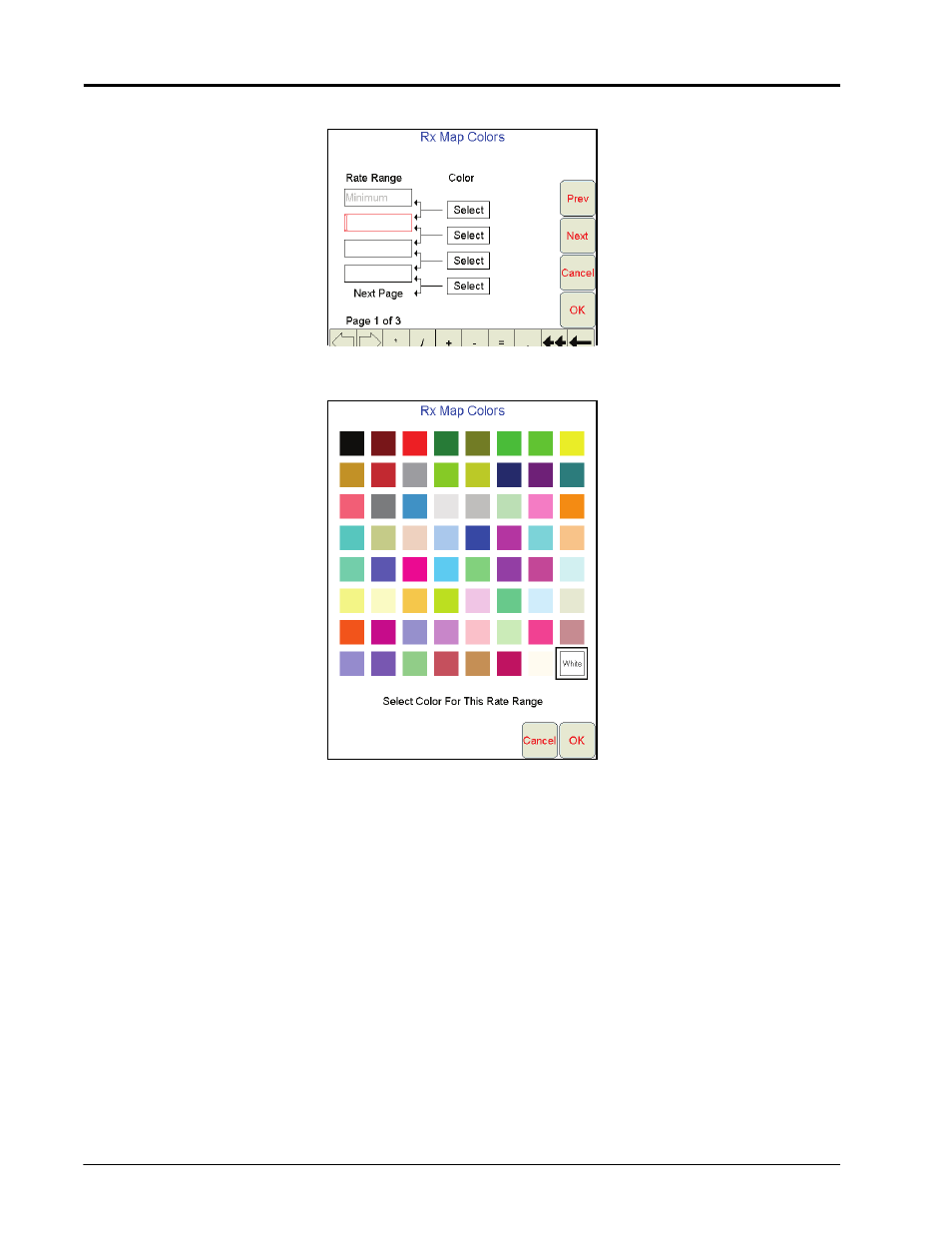

Press Next. The Rate Range and Color selection screen displays.
5.
Using the screen keyboard, enter a value for the upper limit in the first Rate Range field.
6.
Press Select. The Rx Map Colors screen displays.
7.
Select a color and press OK.
8.
To add more values as ranges, repeat step 4 through 7.Making sure to select a color for the Minimum Rate
Range.
Note:
The last range you enter will be the maximum value for the range. You can enter up to 10 ranges
for the color template.
9.
Press OK. A confirmation screen displays.
10.
Press OK. Viper saves the Template.
Editing a Rx Color Template
1.
Select Menu, then Setup, Maps, Rx Maps, and Rx Colors. The Select Rx Map Colors Template screen
displays.
