Seed Hawk Raven 2011 - Manual (Page 15)

Manual No. 016-3001-003 5
Introduction
1
Rear Panel
The following is a brief introduction to the ports and connectors available on the back of the Viper Pro console.
The rear panel offers additional USB Ports as well as a port for connecting an optional wireless router for future
wireless capabilities.

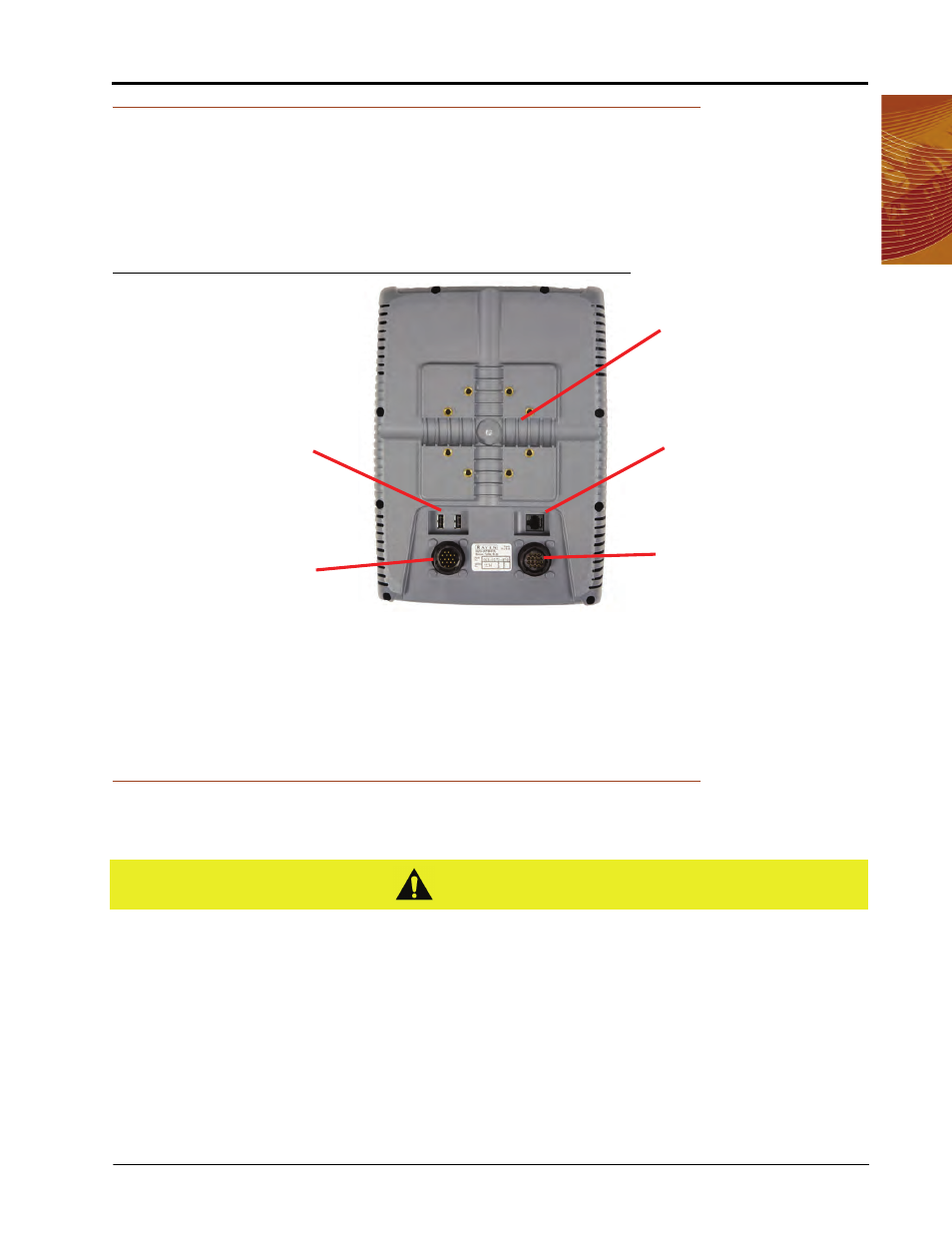

FIGURE 4. Viper Pro Rear Panel
The connectors for the Main and Auxiliary Interface Cables are also located on the back of the Viper Pro.
The console’s Part and Serial Numbers, and Revision Letter, are printed on the tag located on the back of the
console. Please have this information available should you need to contact customer support.
Viper Pro Care and Use
Refer to the following guidelines for proper care and use of the Viper Pro console.
• Do not apply any type of liquid or glass cleaner directly to the surface of the touch screen. Harsh chemicals
may damage the touch screen. Clean the touch screen and console exterior as needed with a soft cloth
dampened with glass cleaner. Apply the cleaner to the cloth and then wipe the screen gently.
• Do not use any type of pointed or sharp instrument on the Viper Pro touch screen. Only your fingertip or
approved stylus should be used when interfacing with the console.
• Do not expose the Viper Pro console to precipitation or other forms of liquid.
• Mount the console securely and route cables to prevent pinching or a tripping hazard.
• When temperatures are expected to be below 10° Fahrenheit [-12° Celsius], the Viper Pro console should
be removed from the vehicle and stored in a temperature controlled environment.
CAUTION
Built-In Mounting Bracket
USB Ports
Ethernet Port
Main Interface
Cable Connector
Auxiliary Interface
Cable Connector
