1. Blade status LED
2. Blade power LED
3. Fibre Channel port
4. Port status LED

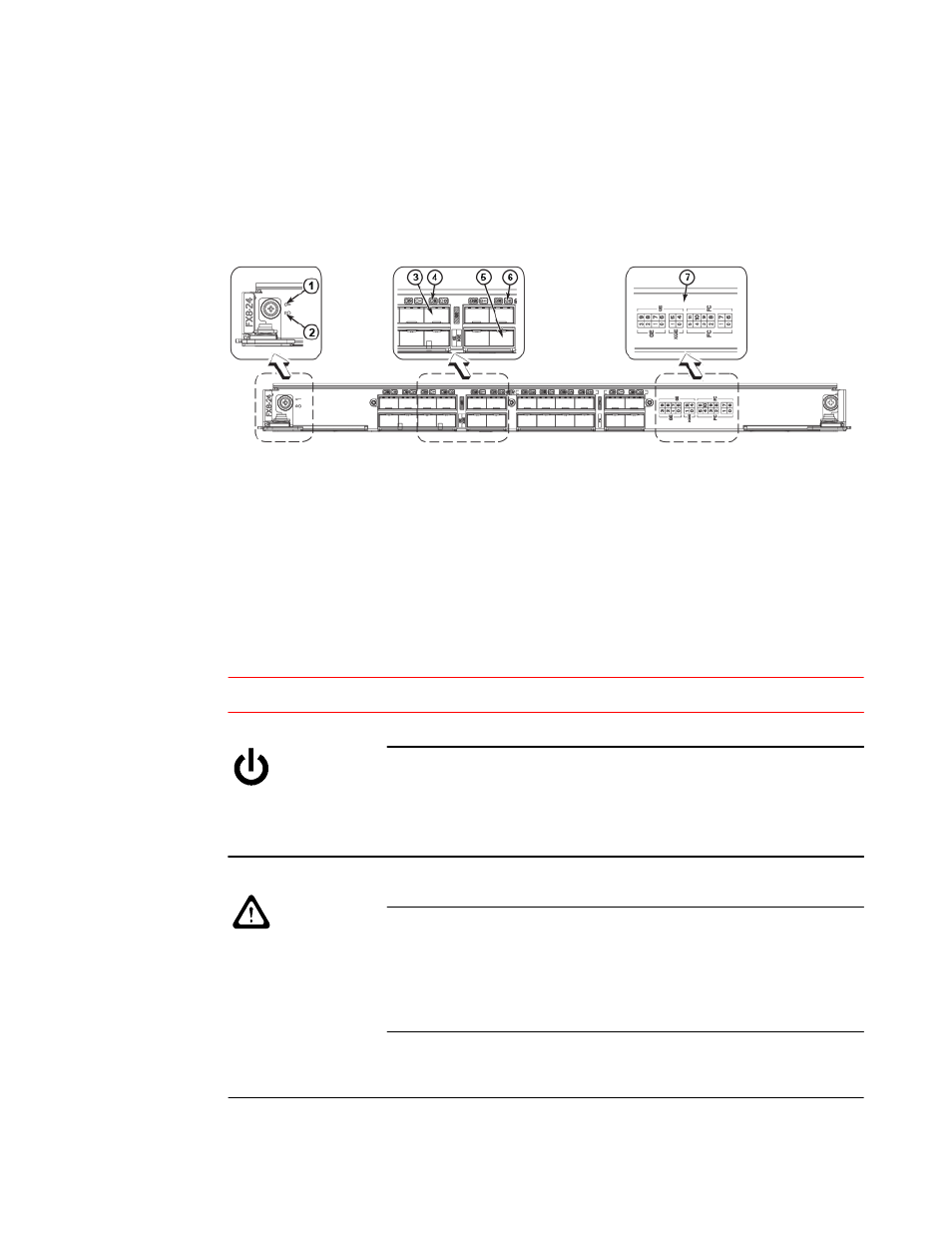

FIGURE 13 FX8-24 extension blade
1. Blade status LED
2. Blade power LED
3. GbE (GE) port 6
4. Port status LED for GbE port 6
5. GbE (XGE) port 0
6. Port status LED for 10-GbE port 0
7. Port map
The following table describes the port and application blade LED patterns and the recommended
actions for those patterns.
Port and application blade LED descriptions
TABLE 4
LED purpose
Color
Status
Recommended action
Power LED
Steady green
Blade is enabled.
No action required.
No light (LED is off)
Blade is not powered on.
Ensure that the blade is
firmly seated and either
the thumbscrew is fully
engaged or the slider is
pushed up and the
ejectors are fully engaged.
Status LED
No light (LED is off)
Blade is either healthy or
does not have power.
Verify that the power LED
is on.
Steady amber
Blade is faulty.
Ensure that the blade is
firmly seated and check
the status by entering the
slotShow command. If
LED remains amber,
consult the Brocade DCX
8510-4 supplier.
Slow-flashing amber (on 2
seconds, then off 2
seconds)
Blade is not seated
correctly or is faulty.
Pull the blade out and
reseat it. If LED continues
to flash, replace the blade.
Monitoring System Components
52
Brocade DCX 8510-4 Backbone Hardware Reference Manual
53-1002177-07
