Port side of the brocade dcx 8510-4 – Brocade DCX 8510-4 Backbone Hardware Reference Manual User Manual
Page 15

• Blades that are serviced from the port side of the Brocade DCX 8510-4. Blowers, power supplies,
and power cables that are serviced from the nonport side.
• World Wide Name (WWN) cards on the nonport side, with WWN status LEDs located under the
bezel.
• Two vertical cable management finger assemblies and a redesigned chassis door for improved cable
management.
Port side of the Brocade DCX 8510-4
NOTE
Airflow in the Brocade DCX 8510-4 is from the nonport side to the left side and port side of the chassis
(viewed from the port side) and out the exhaust vents. If you use the Port Side Exhaust Kit, the air vents
are all on the port side of the chassis (refer to
).

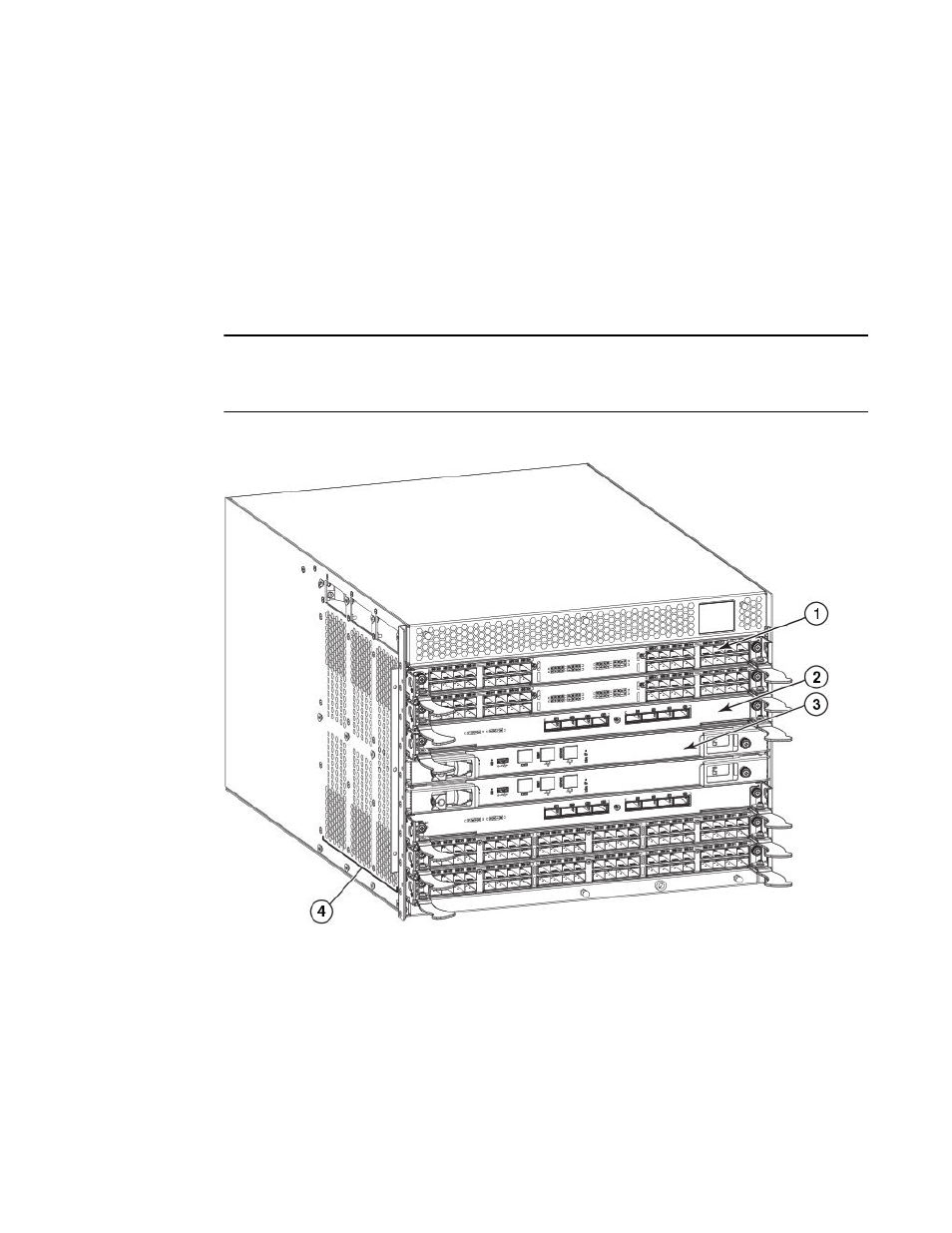

FIGURE 1 Port side of the Brocade DCX 8510-4 (sample configuration)
1. Port blade (FC16-32)
2. Core switch blade (CR16-4)
3. Control processor blade (CP8)
4. Exhaust vent
Port side of the Brocade DCX 8510-4
Brocade DCX 8510-4 Backbone Hardware Reference Manual
15
53-1002177-07
