Fabric OS Encryption Administrator’s Guide (LKM/SSKM) 181
53-1002925-01
Multiple paths, DEK cluster, no HA cluster
4
The configuration details shown in Figure 90 are as follows:
• There are two fabrics.
• There are four paths to the target device, two paths in each fabric.
• There are two host ports, one in each fabric.
• Host port 1 is zoned to target port 1 and target port 2 in fabric 1.
• Host port 2 is zoned to target port 3and target port 4 in fabric 2.
• There are four Fabric OS encryption switches organized in HA clusters.
• HA cluster 1 is in fabric 1, and HA cluster 2 is in fabric 2.
• There is one DEK cluster, and one encryption group.
Multiple paths, DEK cluster, no HA cluster

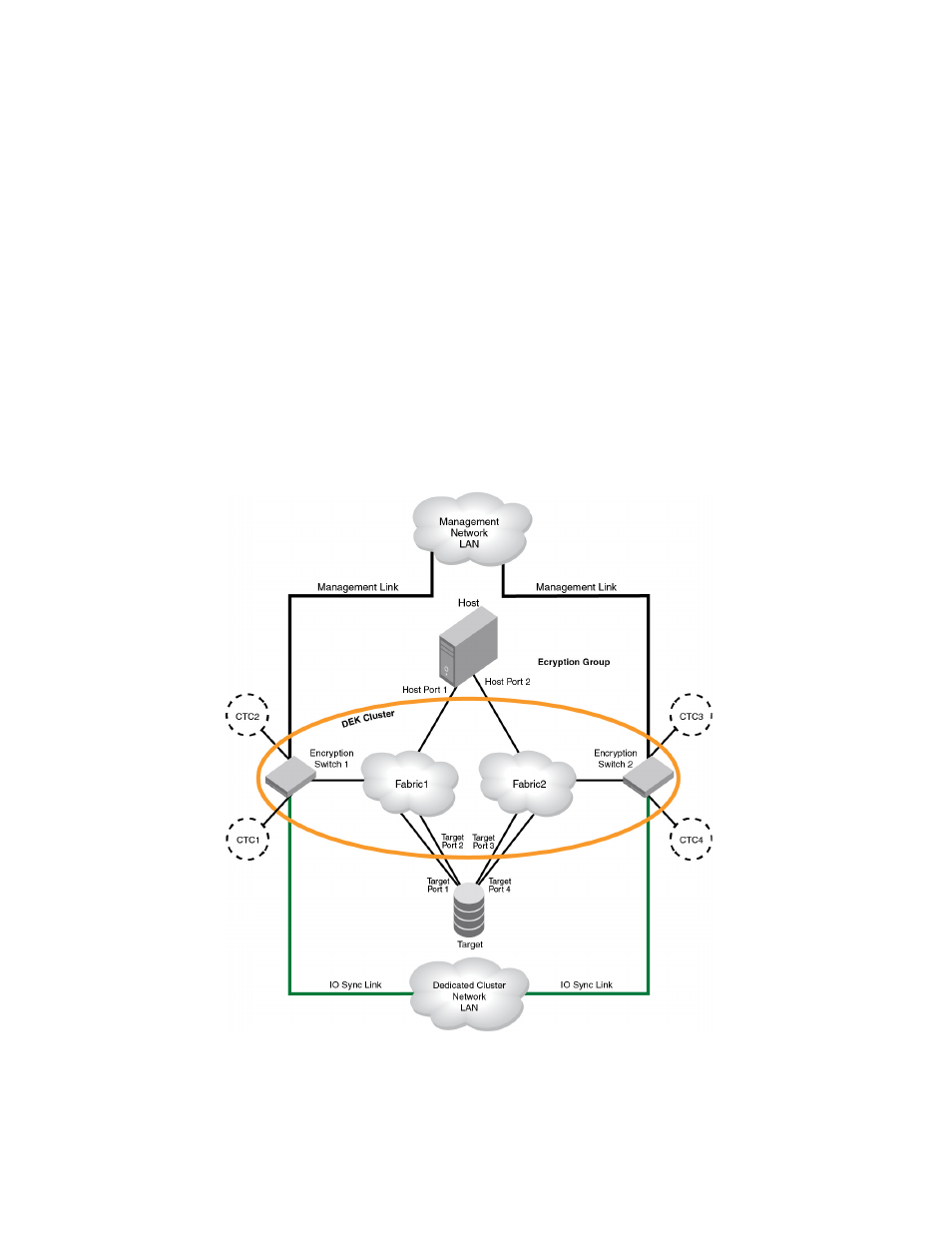

Figure 91 shows a configuration with a DEK cluster with multiple paths to the same target device.
There is one encryption switch in each fabric.
FIGURE 91 Multi-path, DEK cluster, no HA cluster
