11
IM 04L41B01-02E

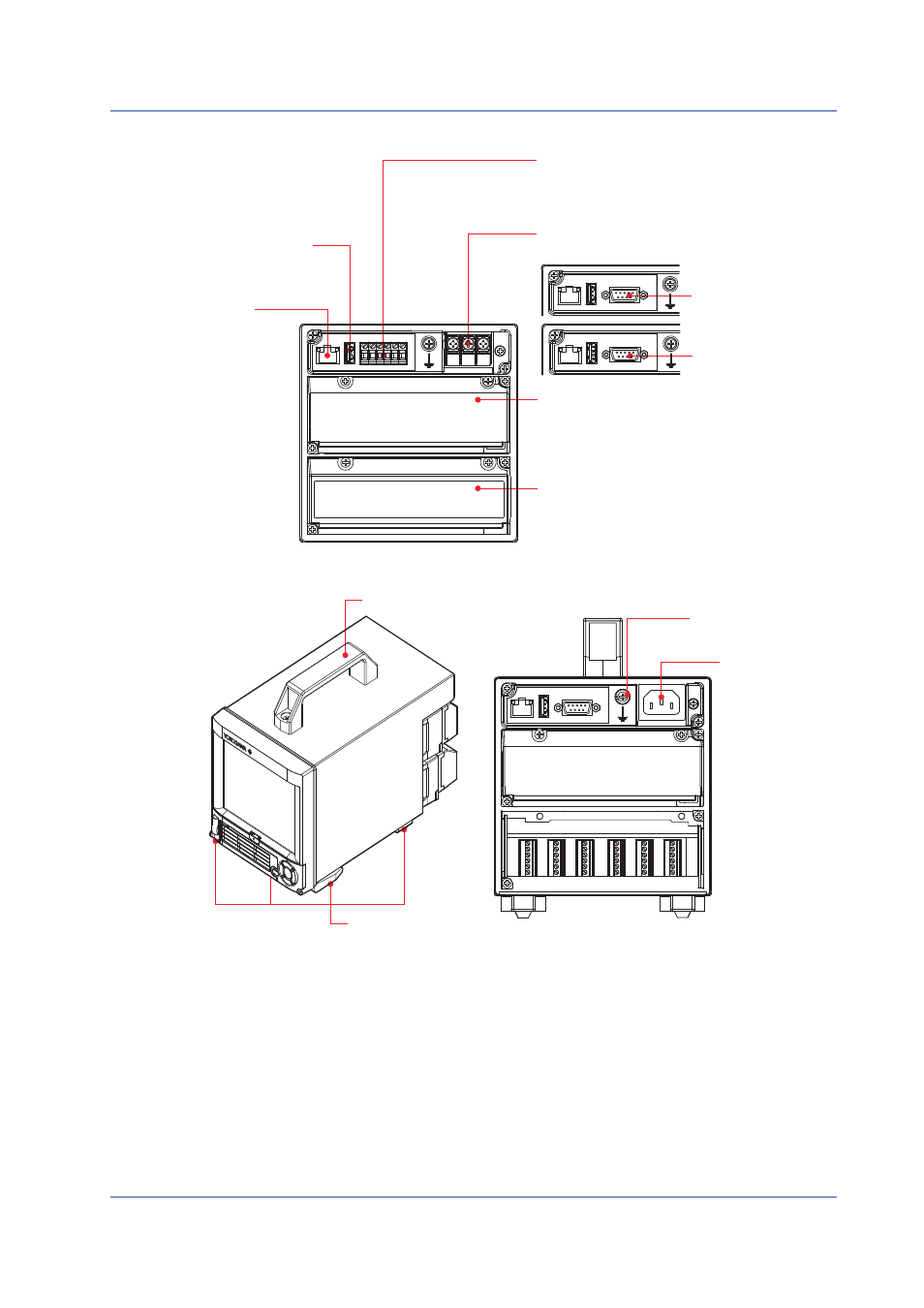

Rear Panel
Ethernet port
A 10Base-T port.
USB port (/USB1 option)
A USB Rev. 1.1 compliant port.
Optional terminals (/A[ ], /F1, /R1,
/TPS[ ], and /PM1 options)
Used to connect optional
input/output signal wires.
Power supply terminals
Serial port
(/C3 option)
RS-422/485 port.
Serial port
(/C2 option)
RS-232 port.
Input terminals (screw
terminals or clamped
terminals; /H2 option)
Used to connect input signal.
PROFIBUS-DP port
(/CP1 option)
PROFIBUS connector.
Desktop Type (/H[ ] Option)
Power
connector
Handle
Feet and Stand
Functional ground
terminal
Names of Parts
