<5. Installation>
5-1
IM 01S01C01-01EN
5. Installation
5.1 Precautions
Before installing the indicator, read the cautionary
notes in section 2.4, “Selecting the Installation
Location.” For additional information on the ambient
conditions allowed at the installation location, refer
to section 13.1 “Functional Specifications.”
IMPORTANT
• When welding piping during construction,
take care not to allow welding currents to
flow through the indicator.
• Do not step on this instrument after
installation.
5.2 Mounting

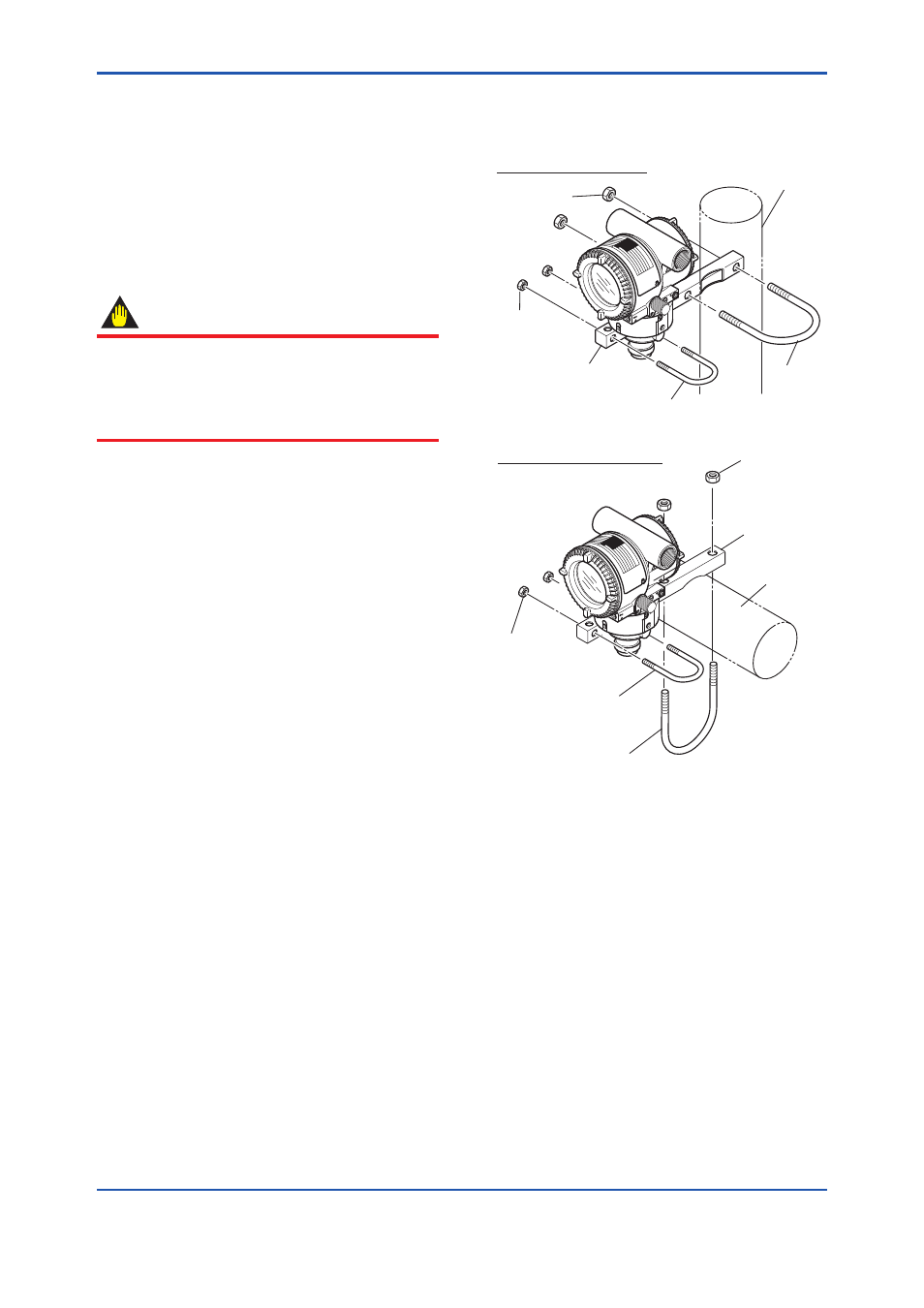

■ The Indicator can be mounted on a nominal 50
mm (2-inch) pipe using the mounting bracket
supplied, as shown in Figure 5.1.
Horizontal pipe mounting
Vertical pipe mounting
F0501.ai
50 mm (2-inch) pipe
U-bolt (L)
U-bolt (S)
Mounting bracket
U-bolt nut (S)
U-bolt nut (L)
U-bolt nut (L)
Mounting bracket
50 mm (2-inch) pipe
U-bolt (L)
U-bolt (S)
U-bolt nut (S)
Figure 5.1 Indicator Mounting
