A6-1
IM 01S01C01-01EN
Appendix 6. Multiple Analog Output
(MAO) Block
The MAO function block passes multiple input signal data.
The FVX uses it as a means to pass data to LCD Transducer Block.

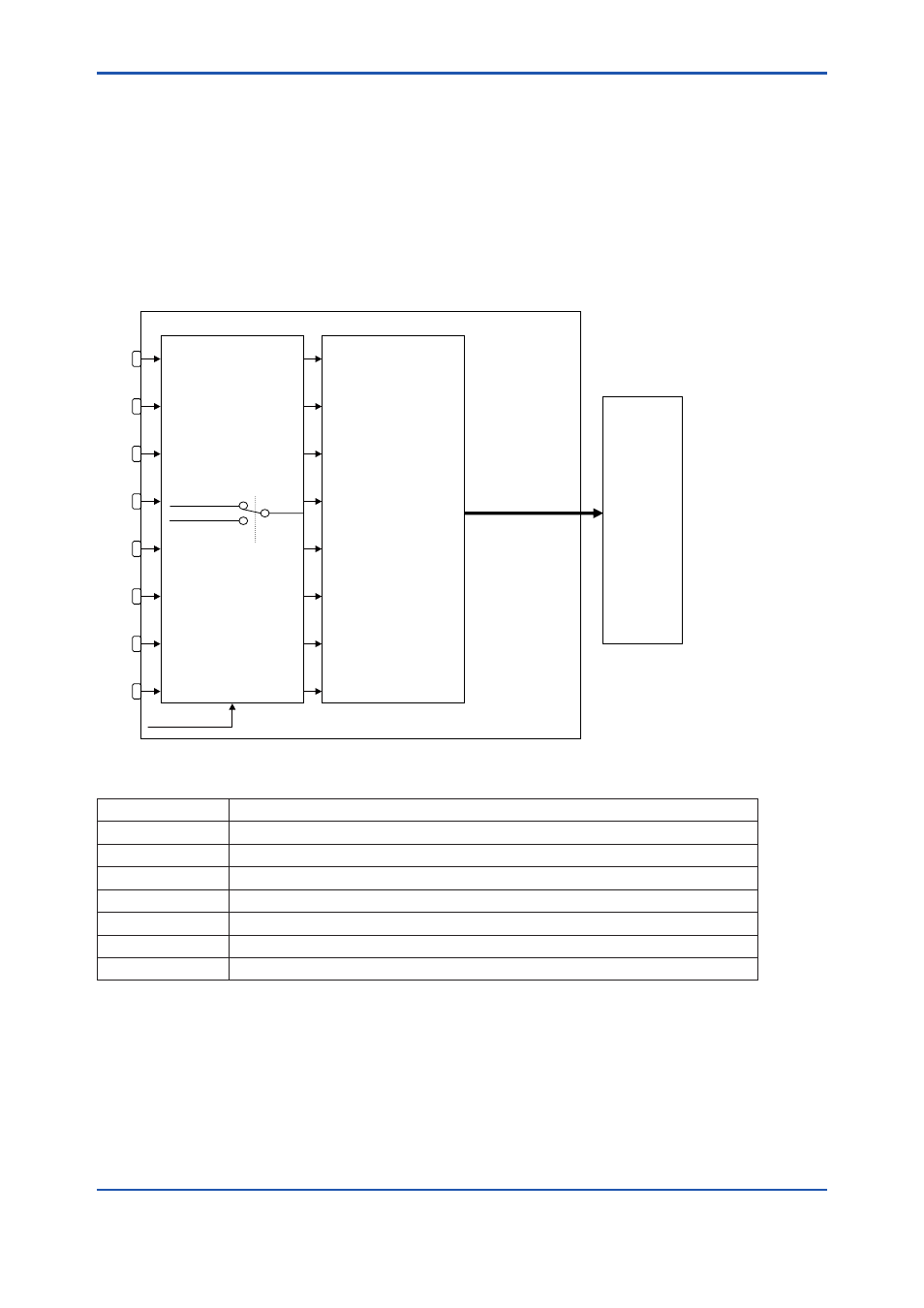

A6.1 Function Block Diagram
IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_8
IN_7
Transfers data to
LCD Transducer Block
via CHANNEL
FSTATE_VAL1 to 8
SELECTOR
FSTATE_VALX
IN_X
FSTATE_STATUS
OUTPUT SNAP
TO
TRANSDUCER
BLOCK INPUTS
LCD
TRANSDUCER
BLOCK
MAO – Multiple Analog Output
FA0601.ai
Input parameter (input)
IN_1 Input 1 (status, value)
IN_2 Input 2 (status, value)
IN_3 Input 3 (status, value)
IN_4 Input 4 (status, value)
IN_5 Input 5 (status, value)
IN_6 Input 6 (status, value)
IN_7 Input 7 (status, value)
IN_8 Input 8 (status, value)
