<10. EXPLOSION PROTECTED TYPE INSTRUMENT>
10-7
IM 01F06F00-01EN

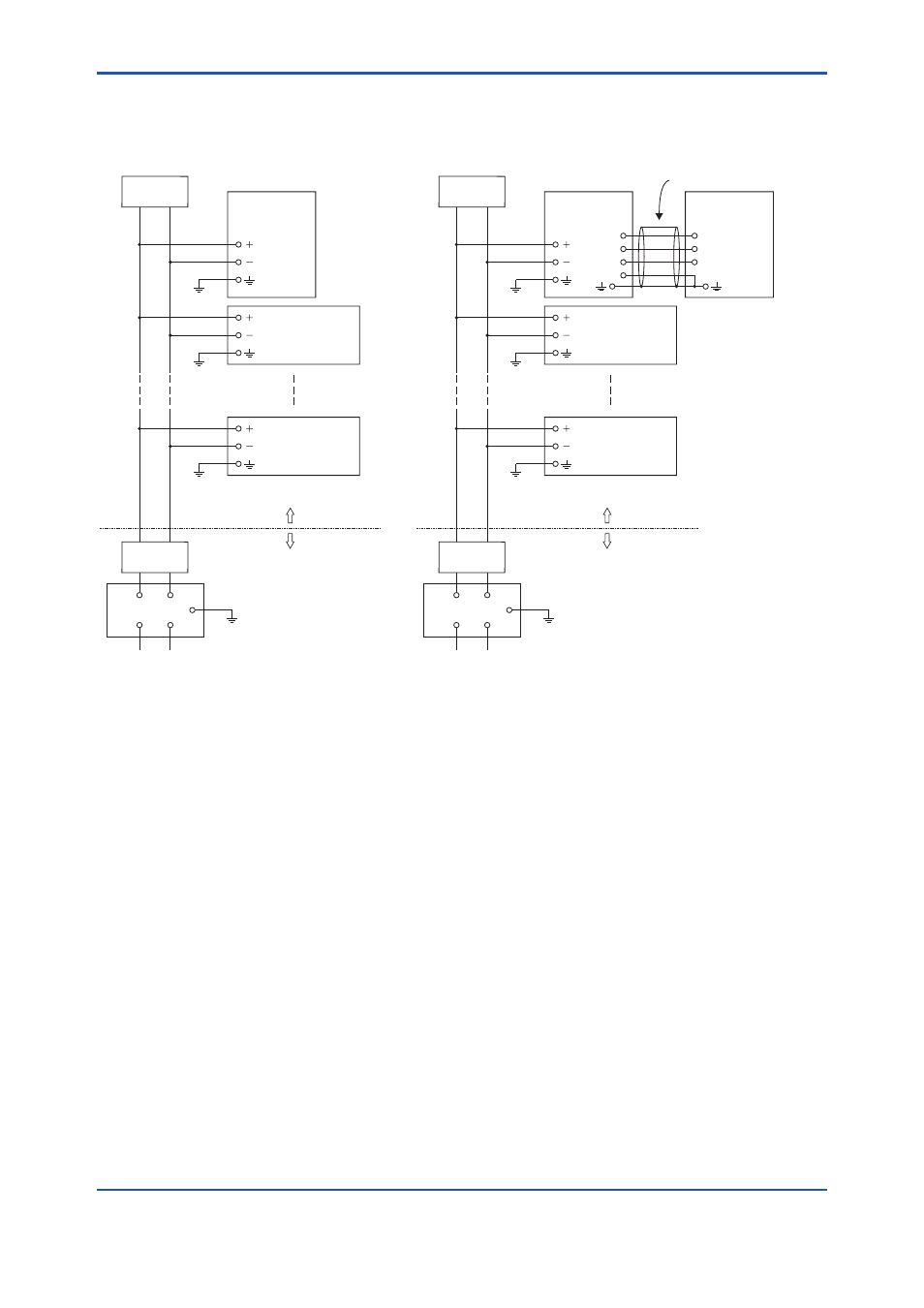

 Installation Diagram
Intrinsically Safe (and WARNING)
DY
(Flowmeter)
Terminator
Terminator
Safety Barrier
Field Instrument
Field Instrument
Hazardous Location
Non Hazardous Location
DYA
(Converter)
DY-N
(Flowmeter)
Terminator
Terminator
Safety Barrier
Field Instrument
Field Instrument
Hazardous Location
Non Hazardous Location
F1004.ai
A
B
T(*1)
(*1) Wire for T terminal
With Temperature sensor type : installed
Without Temperature sensor type : not installed
A
B
T
C
DYC (Signal Cable)
[ Integral type ] [ Remote type ]
