A12-1
IM 01F06F00-01EN
APPENDIX 12. DEVICEVIEWER WINDOW
EXECUTED FROM PRM (Plant
Resource Manager)
With DeviceViewer, it is possible to display whether or not the hardware status and confi guration are normal as
the result of self-diagnosis performed by an FF-H1 device. (Please refer to IM 33Y05Q10-11E.)

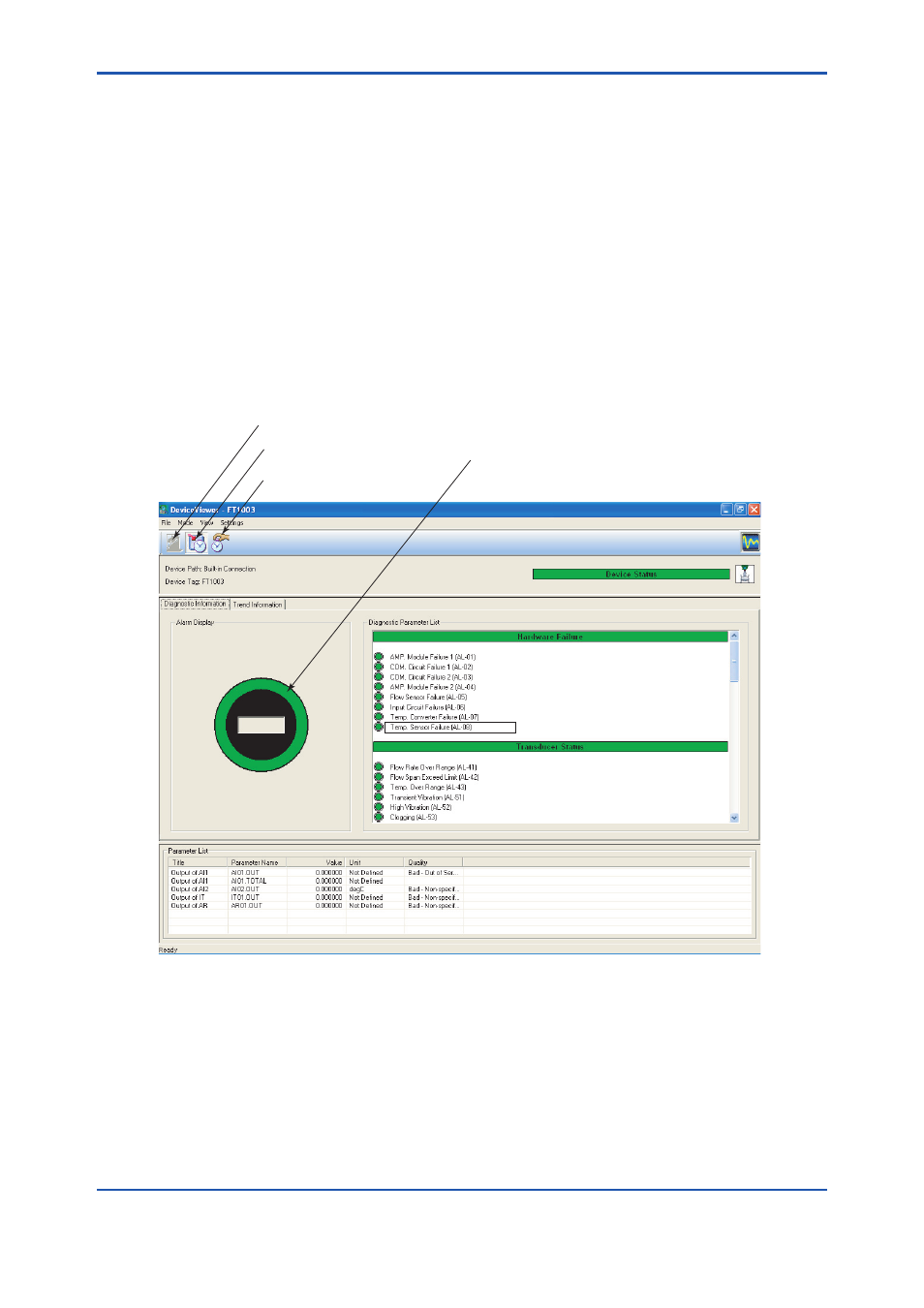

The following fi gure shows an example of the DeviceViewer window displayed for the digitalYEWFLO module.
[Refresh] button
[Stop] button
[Set Refresh Period] button
If several alarms were generated,
the items are displayed in sequential cycles.
FA1201.ai
