Programming NetMaster
89 210140 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
45. Warm Rinse Enable/Disable
“+045”
This option allows the owner to program an optional
warm fill temperature for the final rinse fill. If this
option is enabled and HOT or WARM water is
selected for the wash fill, warm water will be used for
the final rinse fill.
How to Program the Warm Rinse Enable/
Disable
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the DELICATES (+) or the COLD (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

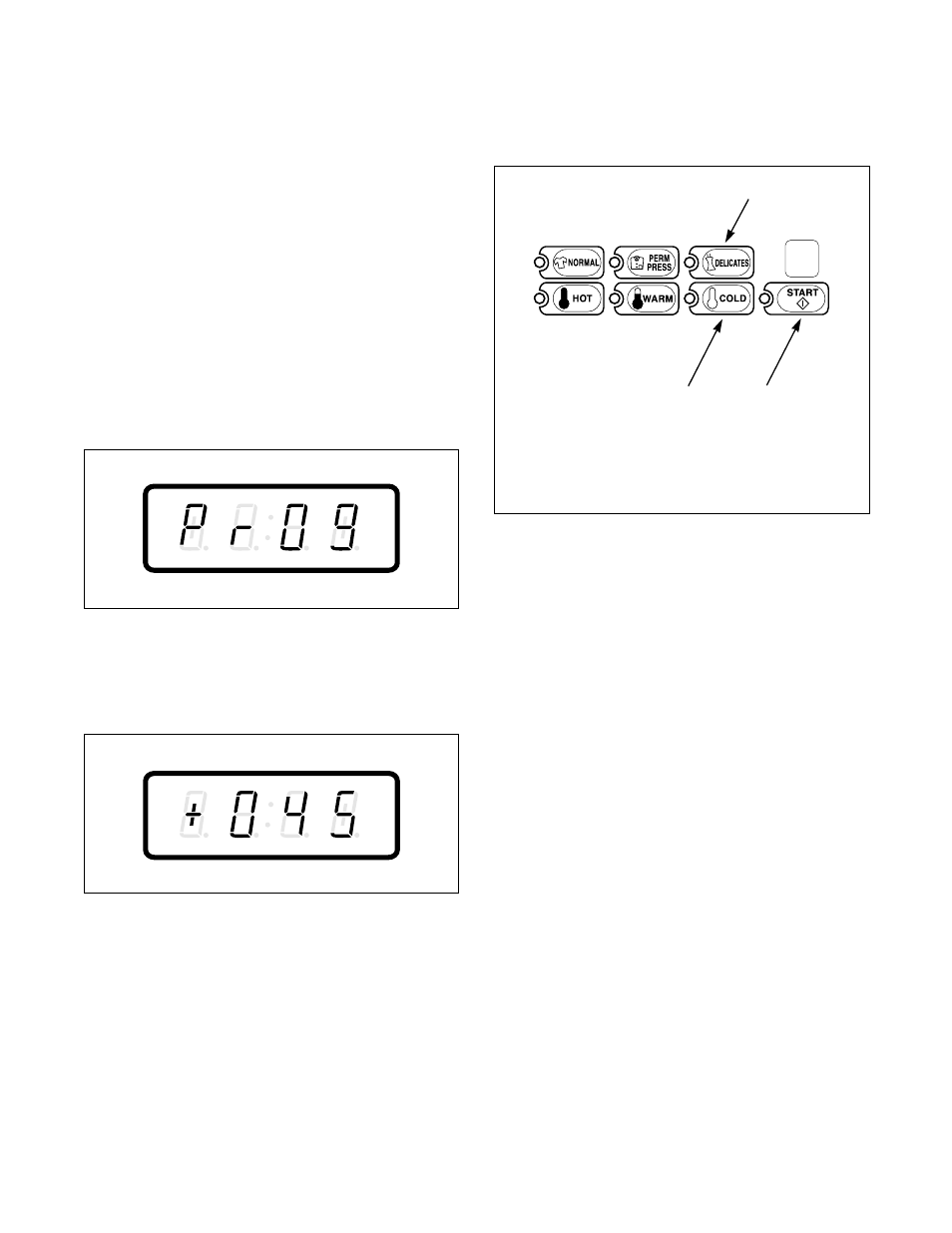

Figure 165
3. Press the DELICATES (+) or the COLD (-)
keypad to scroll through the programmable
options until “+045” appears in the VFD. Refer
to Figure 166.
Figure 166
4. When “+045” appears in the VFD, press the
START (enter) keypad. A number will appear in
the VFD. This number (found below) corresponds
to the current Warm Rinse Enable/Disable Value.
One (1) = Option Enabled
Zero (0) = Option Disabled
5. Press the DELICATES (+) or the COLD (-) keypad
to increase or decrease the current number to the
desired number. Refer to Figure 167.
Figure 167
6. Press the START (enter) keypad when the
correct number appears in the VFD. The next
option, “+046”, will appear in the VFD.
NOTE: To program “+046” (Control Configuration
Data #1), refer to option 46. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the NORMAL
keypad with one hand, press the PERM PRESS
keypad with the other hand. The control will
revert back to the ready mode. Refer to Figure 2.
C762I
C806I
C860I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
1
3 2
