Programming NetMaster
107 210140 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
55. Start Pulse Mode “+055”
This option allows the owner to program the Start
Pulse Input. The Start Pulse Mode can be used for
after-market central pay or card systems. The central
system sends the start pulse to the Start Pulse Input of
the control to start the cycle. If set for single pulse, one
start pulse from the central system will start the cycle.
If set for multiple pulses, each pulse will deduct from
the vend price the value set up in option 23 (Start
Pulse Value) until the vend is satisfied.
How to Program Start Pulse Mode
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the DELICATES (+) or the COLD (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

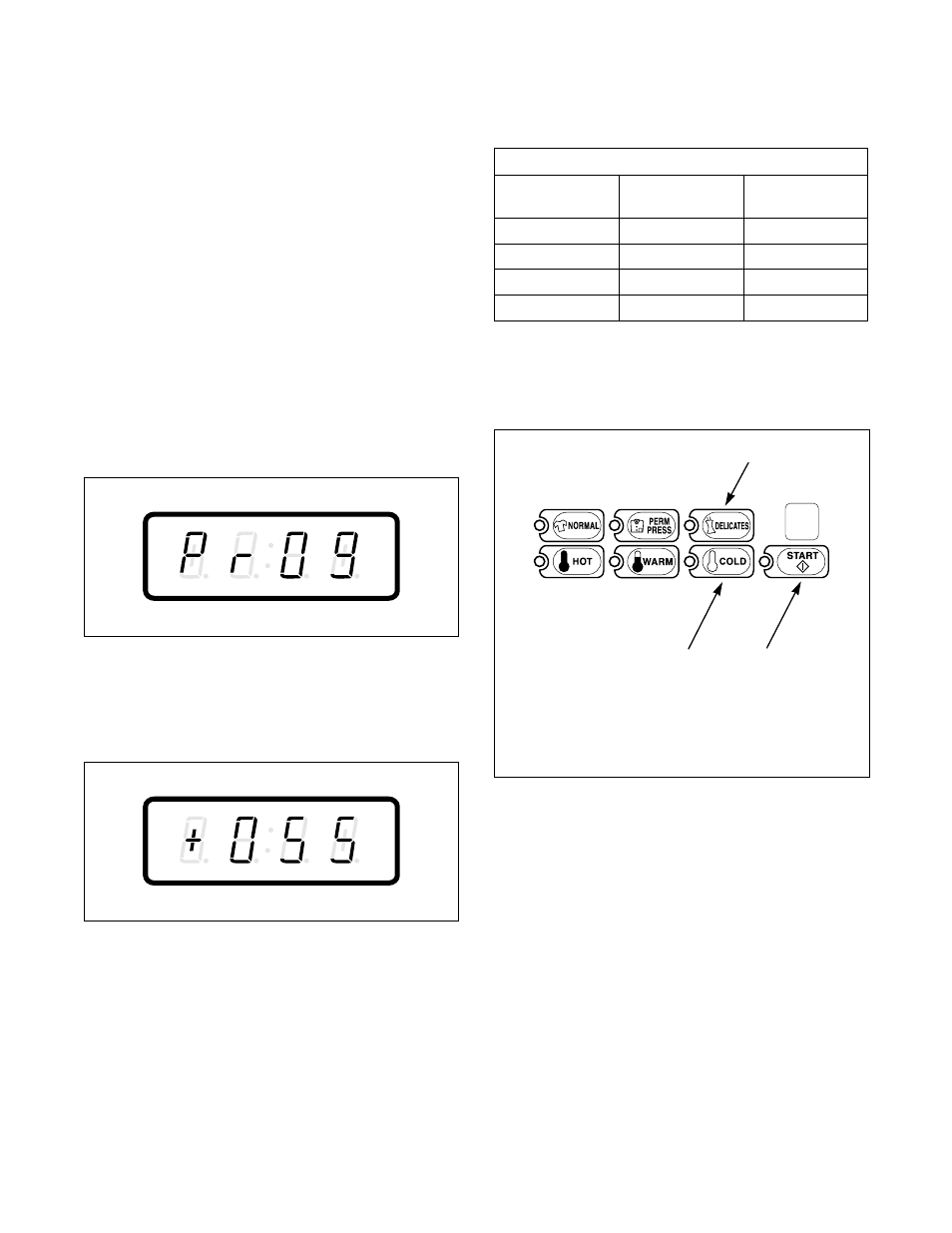

Figure 199
3. Press the DELICATES (+) or the COLD (-)
keypad to scroll through the programmable
options until “+055” appears in the VFD. Refer
to Figure 200.
Figure 200
4. When “+055” appears in the VFD, press the
START (enter) keypad. A number will appear in
the VFD. This number corresponds to the current
Start Pulse Mode Programming Value.
5. Locate the desired number in the first column of
Table 10 below.
6. Press the DELICATES (+) or the COLD (-)
keypad to increase or decrease the current
number until correct. Refer to Figure 201.
Figure 201
7. Press the START (enter) keypad when the correct
number appears in the VFD.
NOTE: To program other options, refer to the
appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the NORMAL
keypad with one hand, press the PERM PRESS
keypad with the other hand. The control will
revert back to the ready mode. Refer to Figure 2.
C762I
C816I
C816I
“+055”
Start Pulse
Mode Value
Start Pulse
ON/OFF
Single Pulse/
Multiple Pulses
0 OFF Single Pulse
64 OFF Multiple Pulses
128 ON Single Pulse
192 ON Multiple Pulses
Table 10
C860I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
1
3 2
