Figure 4-9: ttl connector – IEI Integration PM-LX2-800 User Manual
Page 66
PM-LX2-800 User Manual
Page 66

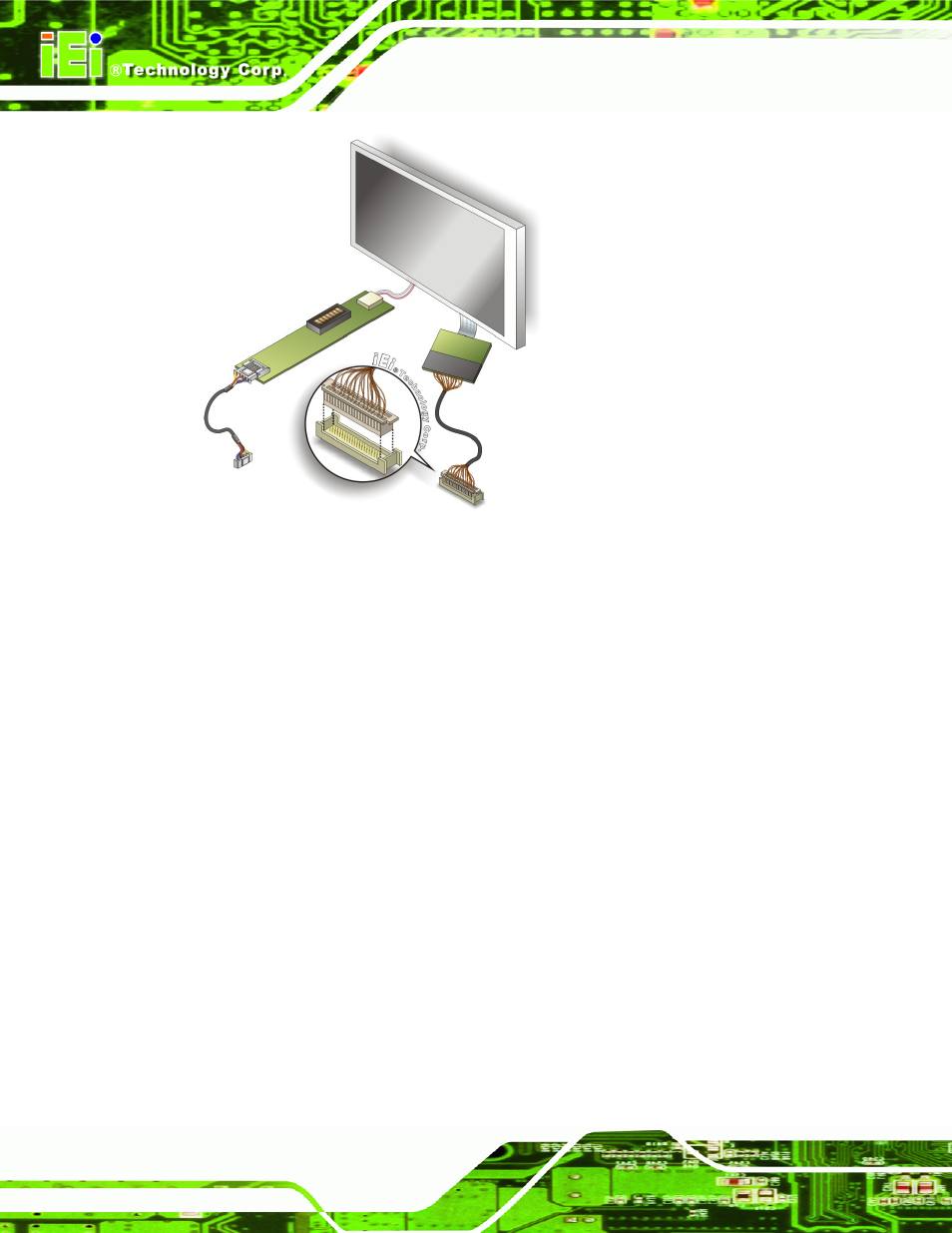

Figure 4-9: TTL Connector
Step 7:
Locate the backlight inverter connector. The location of the backlight inverter
connector is shown in Section 3.1.1.
Step 8:
Connect backlight connector. Connect the backlight connector to the driver
TFT LCD PCB as shown in Figure 4-10. When inserting the cable connector,
make sure the pins are properly aligned.
Step 0:
