PM-LX2-800 User Manual
Page 36
3.2.7 IDE Connector (Primary, 44-pin)
CN Label: CN2
CN Type: 44-pin box header
CN Location: See Figure 3-9
CN Pinouts: See Table 3-8
One primary 44-pin IDE device connector on the PM-LX2-800 CPU board supports
connectivity to Ultra ATA/33/66/100/133 IDE devices with data transfer rates up to
133MB/s.

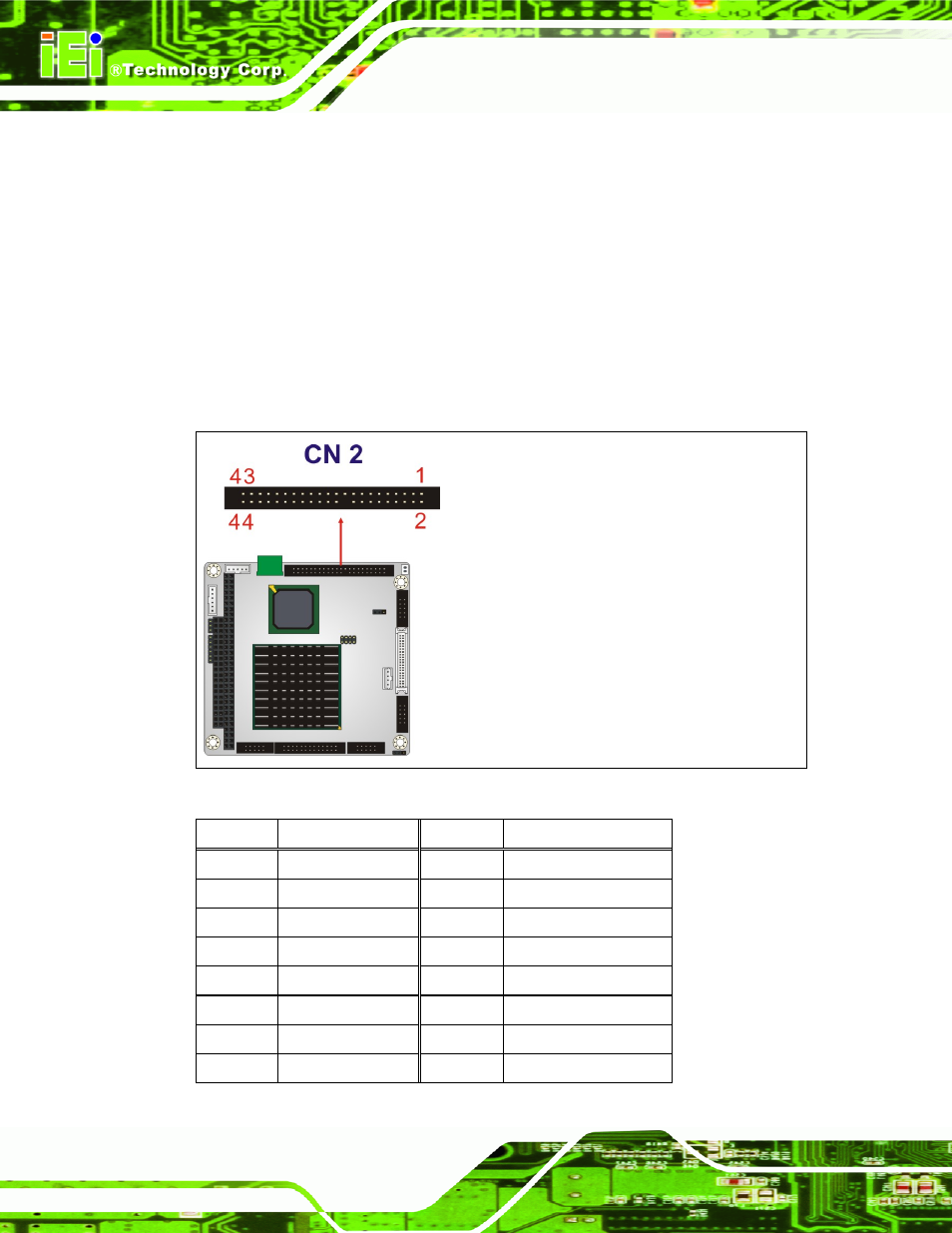

Figure 3-9: Primary IDE Device Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
