PM-LX2-800 User Manual
Page 61
side of the cable to one or two IDE devices. Make sure that pin 1 on the cable
corresponds to pin 1 on the connector Step 0:
4.8.2 Keyboard/Mouse Y-cable Connector
The PM-LX2-800-R11 is shipped with a keyboard/mouse Y-cable connector. The
keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the
PM-LX2-800-R11 and branches into two cables that are each connected to a PS/2
connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse
Y-cable connector, please follow the steps below.
Step 1: Locate the connector. The location of the keyboard/mouse Y-cable connector
is shown in Section 3.1.1.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the PM-LX2-800-R11 keyboard/mouse connector. See Figure 4-5.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the keyboard/mouse connector on the PM-LX2-800-R11, connect the cable
connector to the onboard connectors. See Figure 4-5.

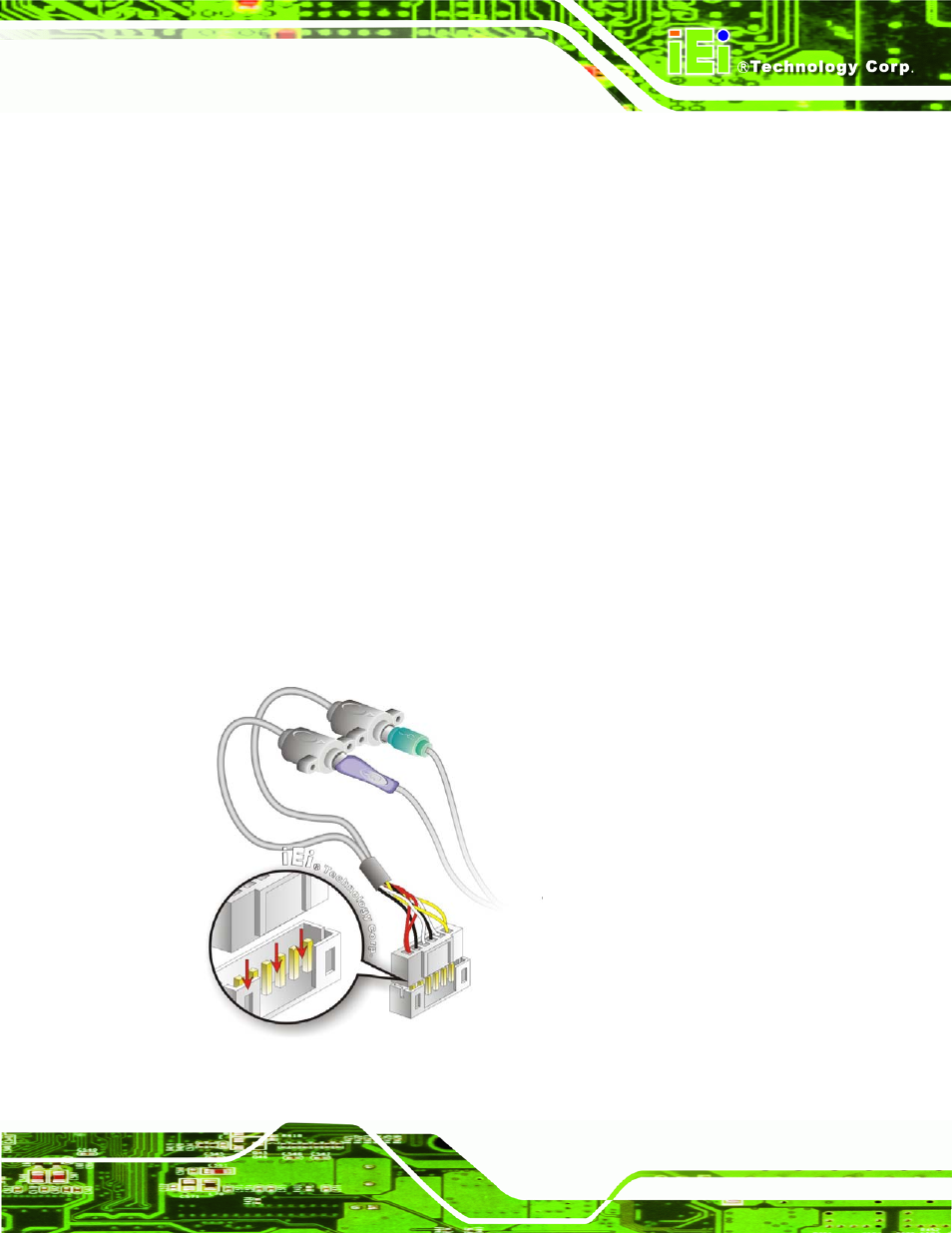

Figure 4-5: Keyboard/mouse Y-cable Connection
