PM-LX2-800 User Manual
Page 28

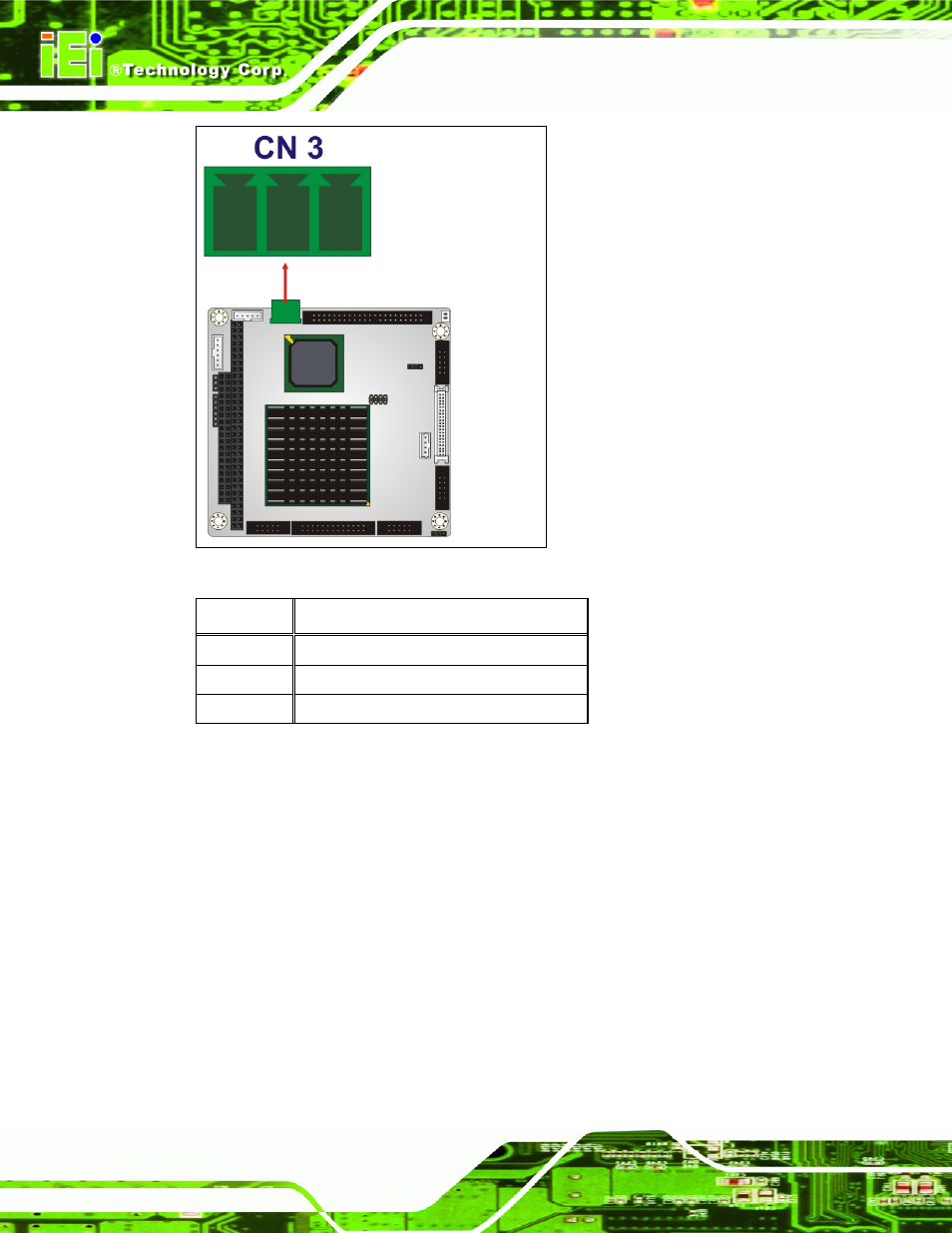

Figure 3-3: 12V / 5V Power Connector Location
PIN NO. DESCRIPTION
1 VCC12
2 GND
3 VCC5
Table 3-2: 12V / 5V Power Connector Pinouts
3.2.2 -12V / -5V Input Connector
CN Label: CN4
CN Type: 3-pin box header
CN Location: See Figure 3-4
CN Pinouts: See Table 3-3
The -12V power supply provides an additional power output connector for other
applications.
