PM-LX2-800 User Manual

Page 49

The internal VGA connector connects to an external VGA display for system monitoring.

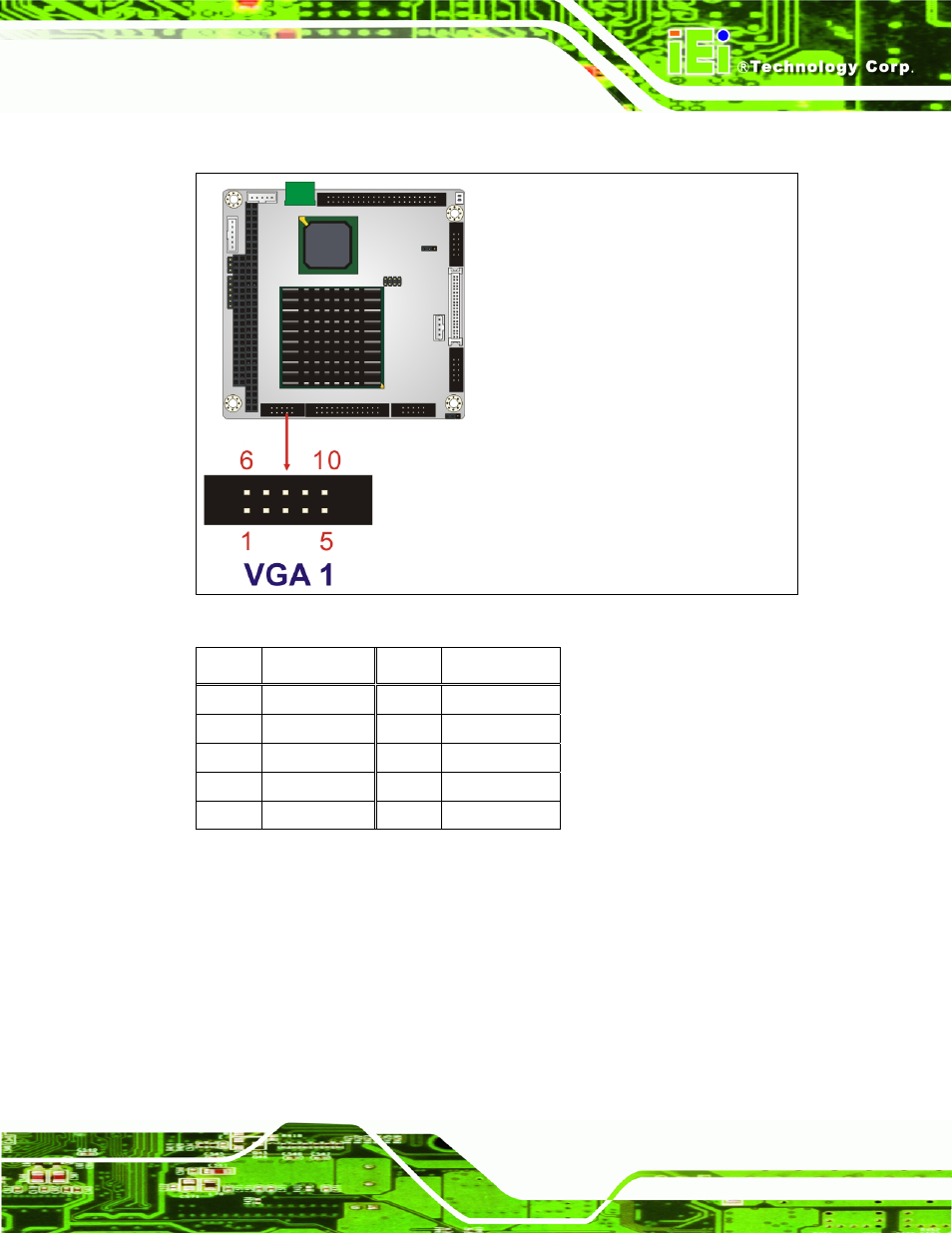

Figure 3-20: VGA Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED

6 DDCCLK

2 GREEN 7 DDCDAT

3 BLUE

8 GND

4 HSYNC 9 GND

5 VSYNC 10

GND

Table 3-19: VGA Connector Pinouts
