PM-LX2-800 User Manual
Page 29

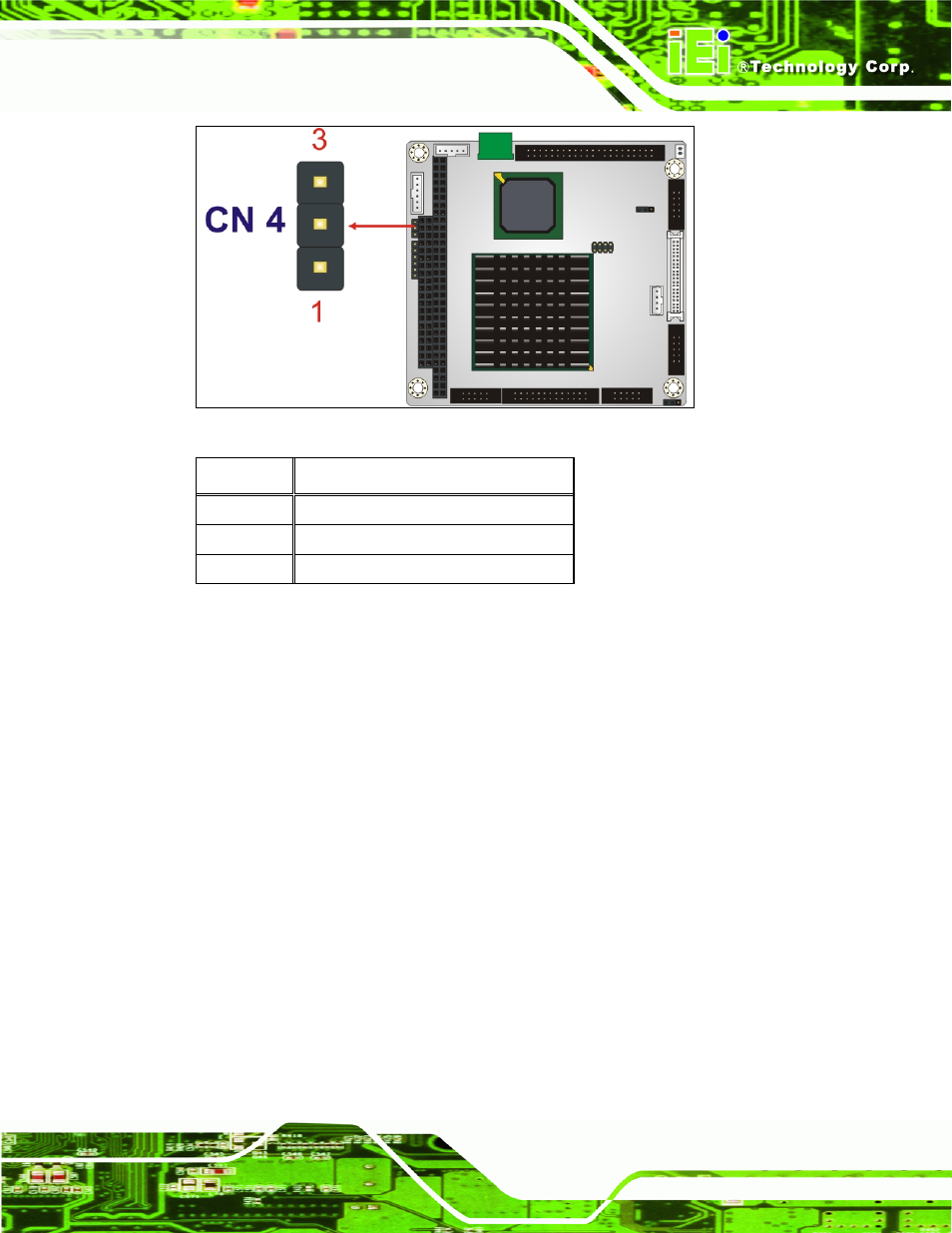

Figure 3-4: -12V Power Connector Location
PIN NO. DESCRIPTION
1 -5V
2 GND
3 -12V
Table 3-3: –12V Power Connector Pinouts
3.2.3 200-pin DDR SO-DIMM Socket
CN Label: CN11 (solder side)
CN Type: 200-pin socket
CN Location: See Figure 3-5
CN Pinouts: See Table 3-4
The 200-pin DDR SO-DIMM socket receives a DDR 266MHz SO-DIMM module.
