PM-LX2-800 User Manual
Page 55
4.4.1 SO-DIMM Module Installation
The PM-LX2-800 motherboard has one 200-pin DDR SO-DIMM socket. To install the
DDR SO-DIMM module, follow the instructions below.
Step 1: Turn the PM-LX2-800 over so that the SO-DIMM socket is facing up.
Step 2: Push the SO-DIMM chip into the socket at an angle. (See Figure 4-1)
Step 3: Gently pull the arms of the SO-DIMM socket out and push the rear of the
SO-DIMM module down. (See Figure 4-1)
Step 4: Release the arms of the SO-DIMM socket. They clip into place and secure the
SO-DIMM module in the socket.

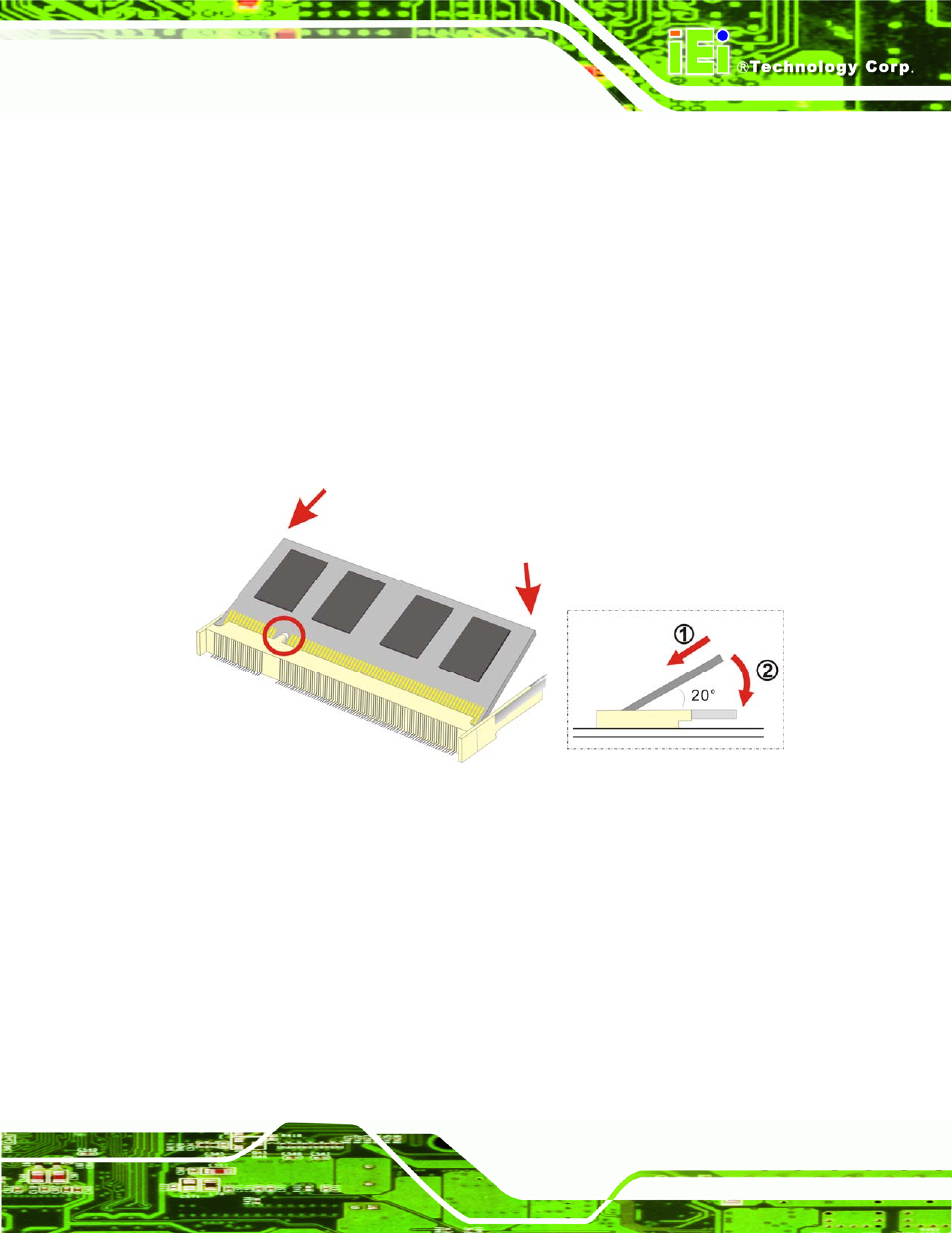

Figure 4-1: SO-DIMM Module Installation
The SO-DIMM is a critical component of the PM-LX2-800 and cannot be run if it is not
installed.
4.5 CompactFlash® Card Installation
A CompactFlash® Type 2 (CF Type II) card slot is located on the solder side of the CPU
board. When appropriately formatted, a CF Type II card can serve as a bootable hard
drive in applications where installation space is limited. The CF Type II card occupies a
secondary IDE channel. Configuration options can be found through the BIOS
configuration utility.
