PM-LX2-800 User Manual
Page 41

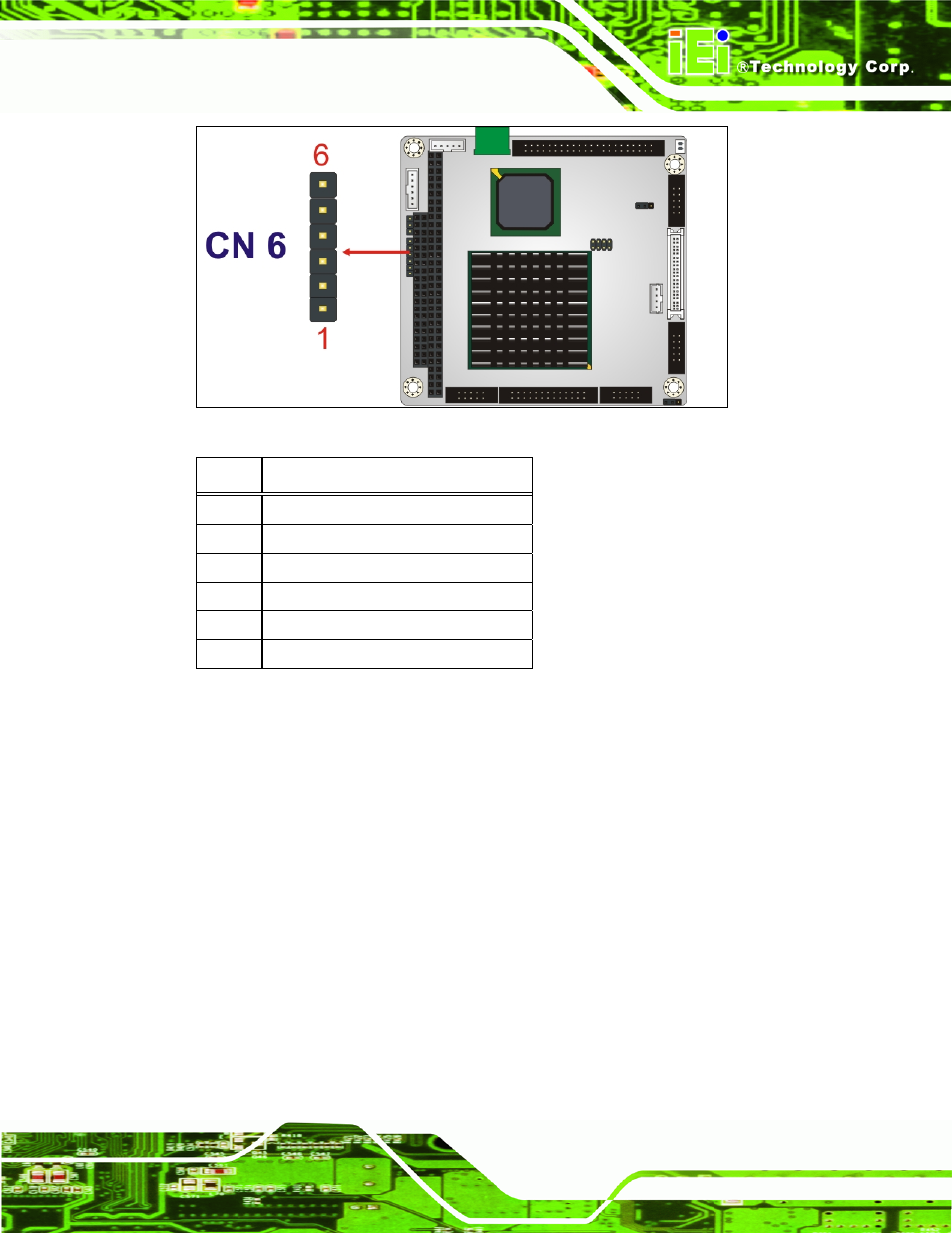

Figure 3-13: LED Connector Location
PIN NO. DESCRIPTION
1 RESET1
2 RESET2
3 VCC5 LED+
4 GND
5 HDD LED+
6 HDD LED-
Table 3-12: LED Connector Pinouts
3.2.12 Parallel Port Connector
CN Label: LPT1
CN Type: 26-pin box header
CN Location: See Figure 3-14
CN Pinouts: See Table 3-13
The 26-pin box header can be connected to a parallel port connector interface or some
other parallel port device such as a printer.
