46 IEI ® Technology, Corp.
AC’97 Audio signals are interfaced through a 10-pin flat-cable connector. These signals
include Microphone line-in, line-in stereo, and line-out stereo. An audio
10-pin-to-phone-jack adapter kit is required.
PIN DESCRIPTION PIN DESCRIPTION
1 LINE_OUT_R 2 LINE_IN_R
3 GND 4 GND
5 LINE_OUT_L 6 LINE_IN_L
7 GND 8 GND
9 MIC1 10 MIC2
Table 3-8: CN9 Connector Pinouts

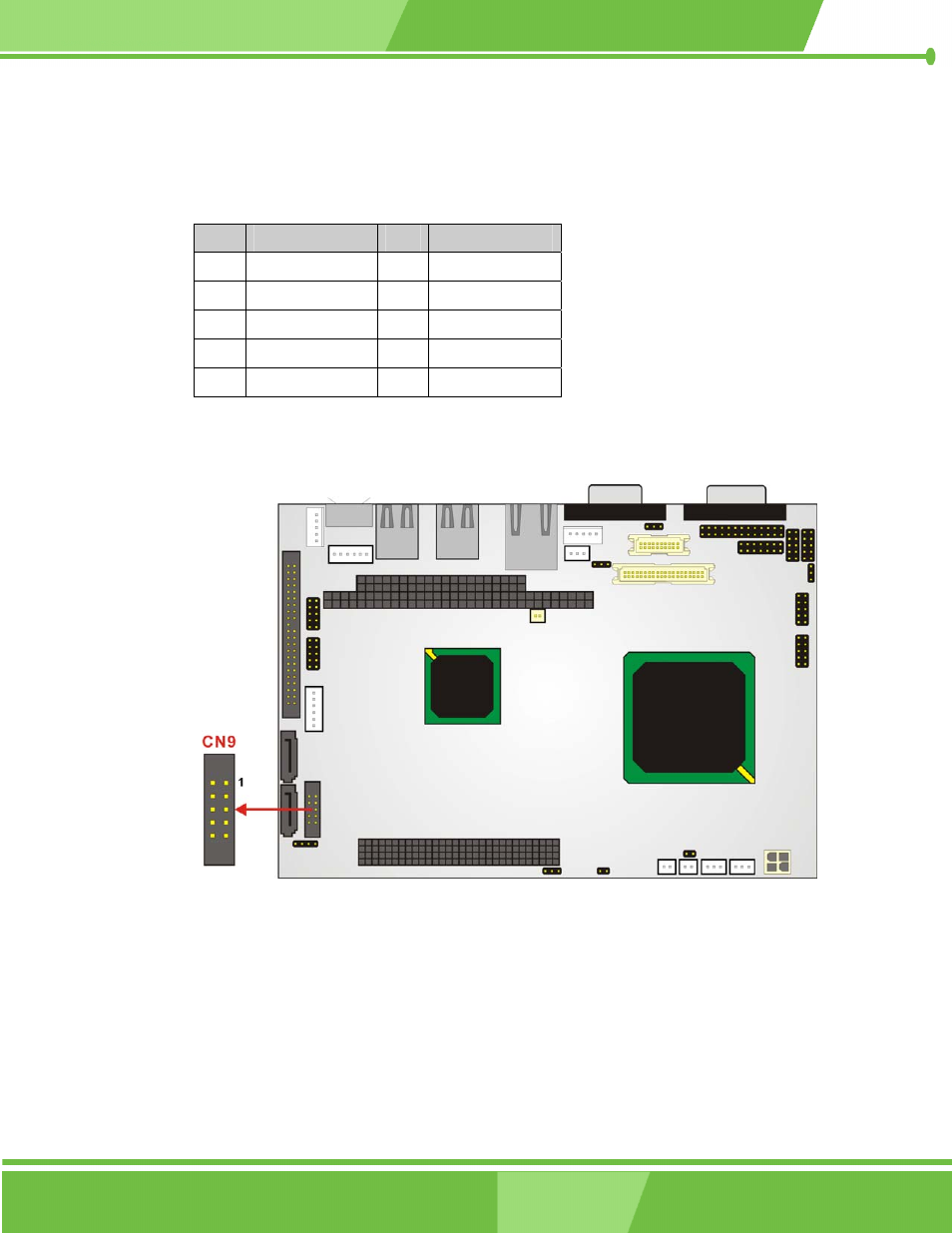

Figure 3-7: CN9 Connector Location
