with the corresponding holes on the ETX module and baseboard.
Step 4: Insert retention screws. Insert four retention screws through the heat sink and
IEM-9452 to secure them to the baseboard.
5.3.3 SATA Drive Connection
The IEM-9452 is shipped with two SATA drive cables and one SATA drive power cable. To
connect the SATA drives to the connectors, please follow the steps below.
Step 5: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 6: Insert the cable connector. Press the clip on the connector at the end of the
SATA cable and insert the cable connector into the on-board SATA drive
connector. See Figure 5-2.
Step 7: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See Figure 5-2.
Step 8: Connect the SATA power cable. Connect the SATA power connector to the
back of the SATA drive. See Figure 5-2. Step 0:

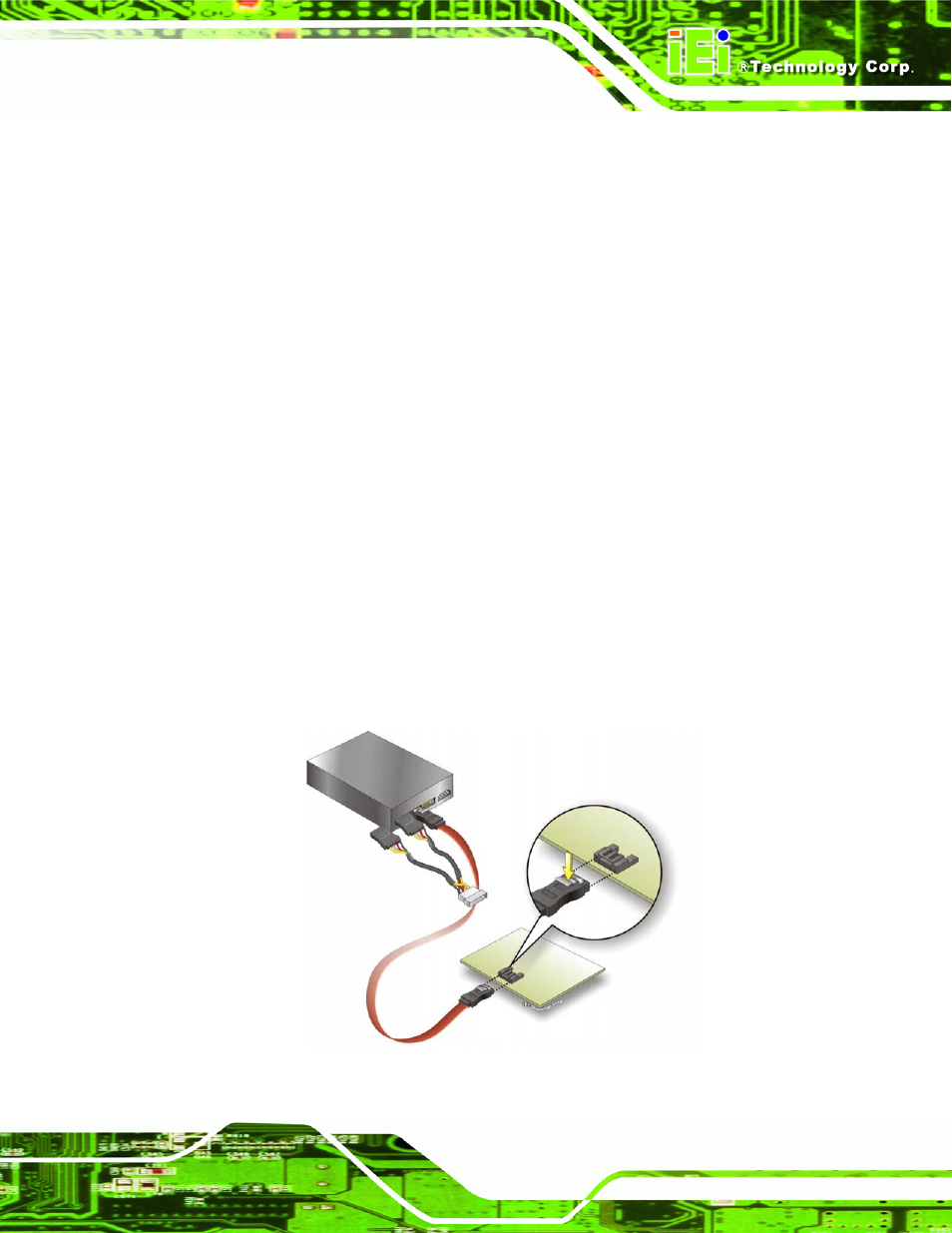

Figure 5-2: SATA Power Drive Connection
