IEM-9452 ETX Module

Page 9

2.3 Data Flow

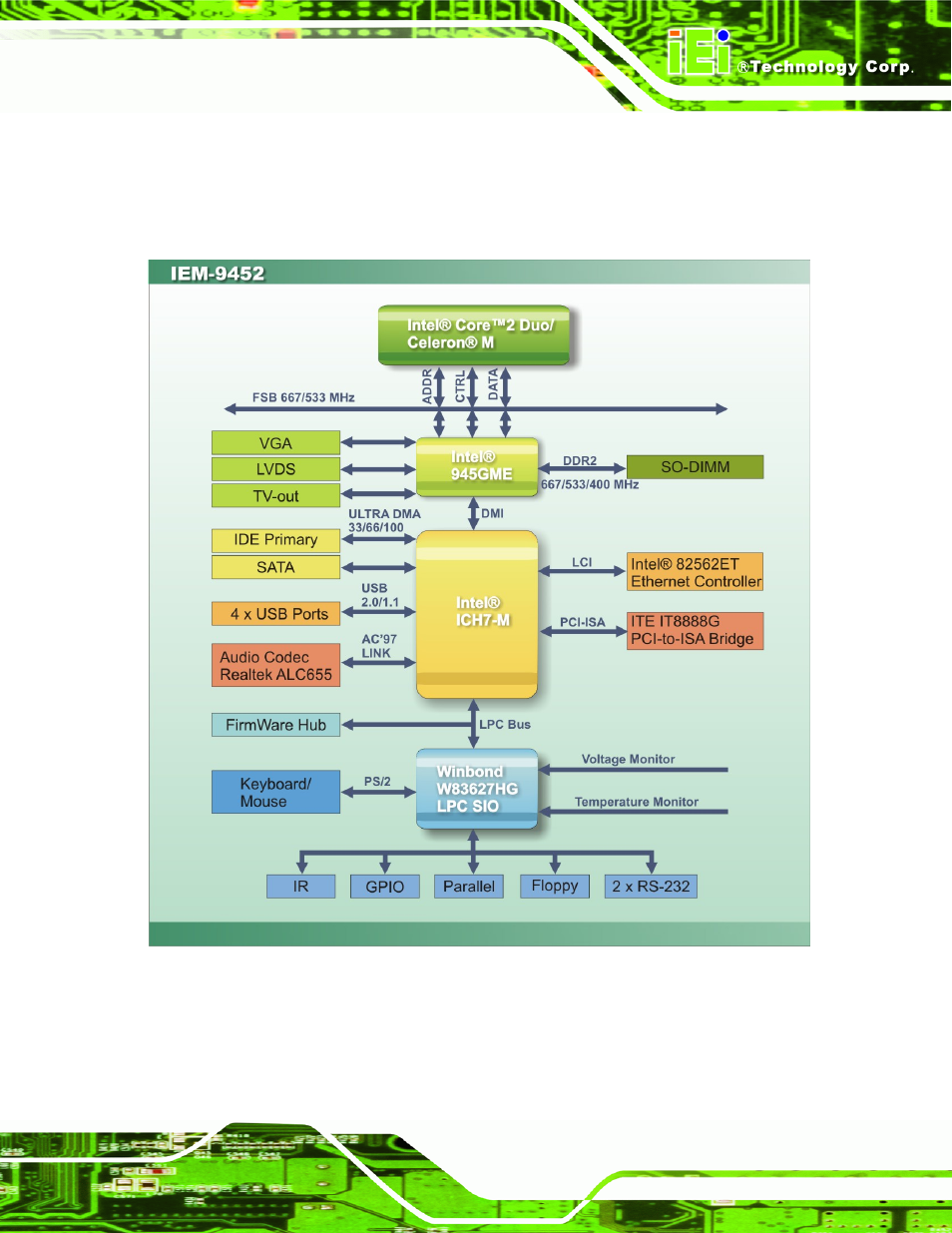

Figure 2-2 shows the data flow between the two on-board chipsets and other components

installed on the motherboard and described in the following sections of this chapter.

Figure 2-2: Data Flow Block Diagram
