IEM-9452 ETX Module
Page 25
Voltage Current
+5 V 3.81 A
Table 2-3: Power Consumption
2.10 IEM-DB-7S-RS Compatible Baseboard
The IEI IEM-DB-7S-RS compatible baseboard can be separately purchased from IEI. The

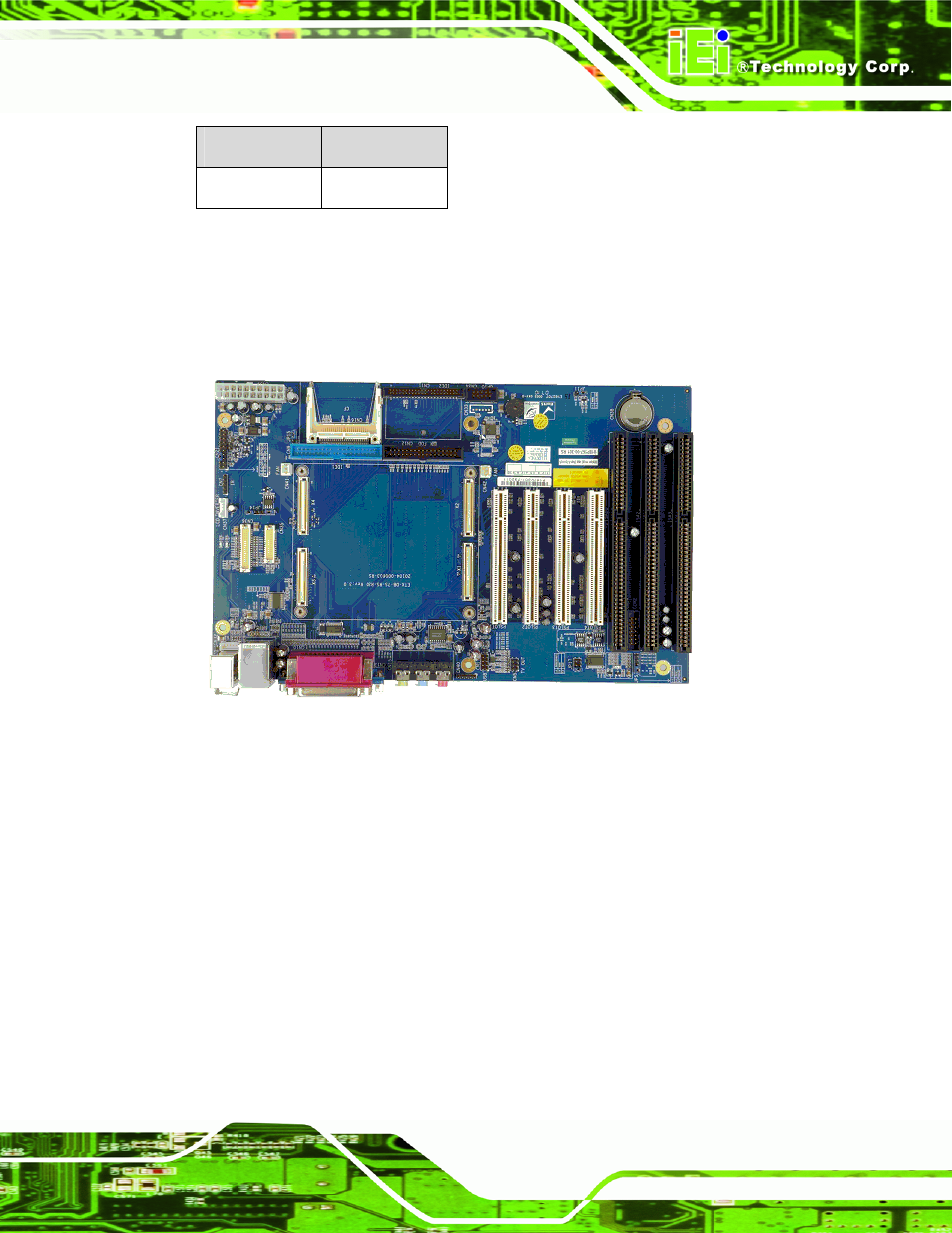

Figure 2-10: IEM-DB-7S-RS Compatible Baseboard
Some of the features of the IEM-DB-7S-RS are listed below:
Display Interfaces:
o 1 x 30-pin 48-bit DFP for LVDS
o 1 x 40-pin connector for 24-bit TTL
Expansion Interfaces:
o 4 x PCI slots
o 3 x ISA slots
External Peripheral Interface Connectors:
o 3 x Audio jacks
o 2 x PS/2 connectors (one for mouse, one for keyboard)
o 1 x RJ-45 Ethernet connector
