IEM-9452 ETX Module

Page 32

4.1 Board-to-Board Interface Connectors

Section 4.1.1 shows board-to-board interface connector locations. Section 4.1.2 lists all

the peripheral interface connectors seen in Section 4.1.2.

4.1.1 IEM-9452 Layout

Figure 4-1 shows the on-board board-to-board connectors.

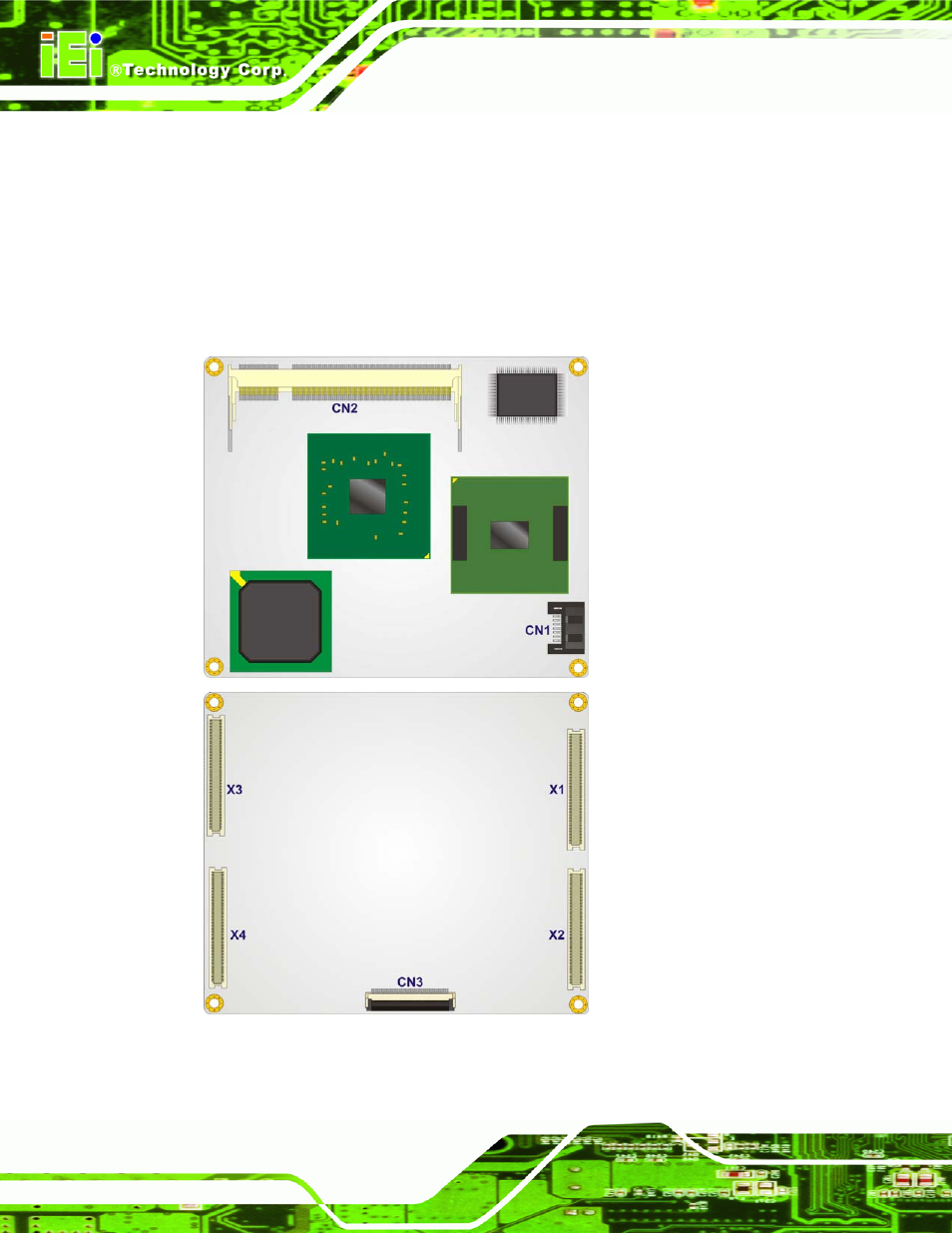

Figure 4-1: IEM-9452 Layout (Front side on the top, solder side on the bottom)
