2.6.3 Intel
®
ICH7-M Ethernet Connection
An integrated PHY on the Intel® ICH7-M Southbridge is interfaced to an Intel® 82562ET
10 Mbps or 100 Mbps Ethernet controller through the LCI bus. The Intel® 82562ET
controller is then connected to the RJ-45 connector on the baseboard through the
board-to-board connectors. See Figure 2-5.

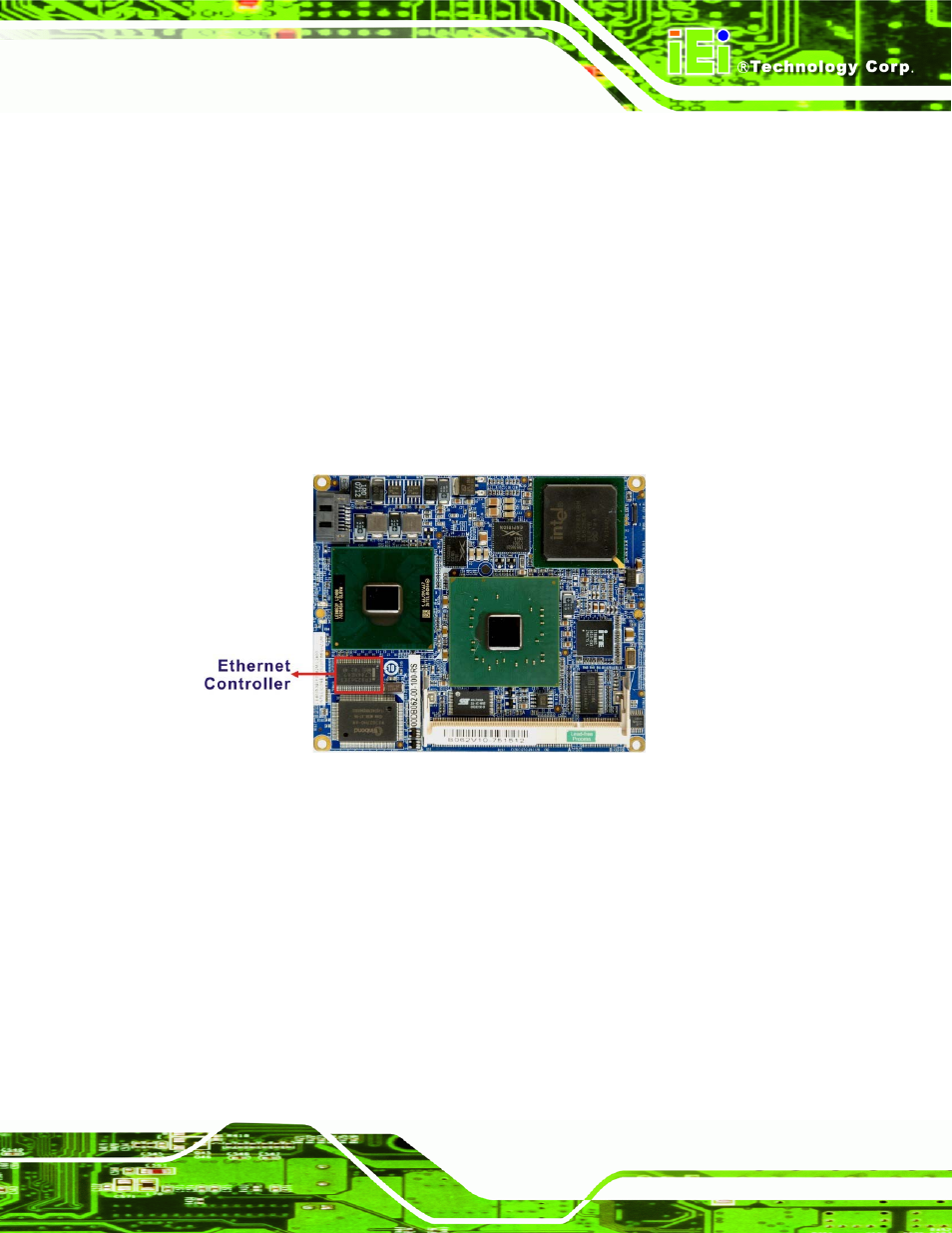

Figure 2-5: 10 Mbps or 100 Mbps LAN Controller Chipset
