IEM-9452 ETX Module

Page 11

2.5.2 Intel

945GME Memory Support

WARNING:

Only DDR2 memory module can be installed on the IEM-9452. Do not

install DDR memory modules. If a DDR memory module is installed on

the IEM-9452, the IEM-9452 may be irreparably damaged.

The Intel

945GME Northbridge chipset on the IEM-9452 supports one 200-pin DDR2

SO-DIMM with the following features:

One 200-pin SO-DIMM

DDR2 only (DO NOT install a DDR SO-DIMM)

Single-channel or dual-channel

Capacities of 256 MB, 512 MB, 1 GB or 2 GB

Transfer speeds of 400 MHz, 533 MHz or 667 MHz

64-bit wide per channel

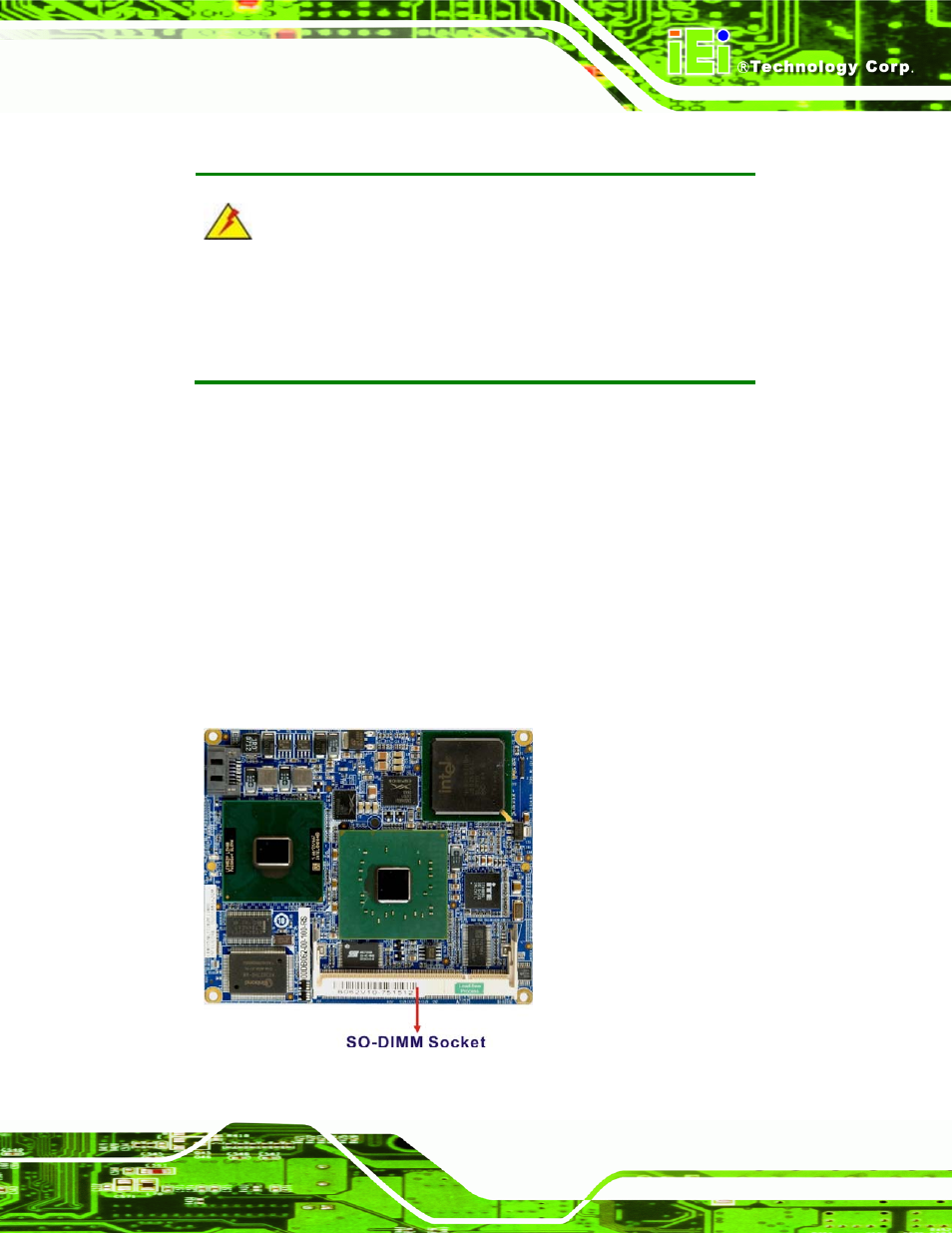

The memory socket is shown in Figure 2-3.

Figure 2-3: 200-pin DDR2 SO-DIMM Socket
