NOTE:
The IEM-9452 embedded module already has a preinstalled Intel®
CPU.
SO-DIMM module
Mount the embedded module onto a baseboard
Install the heat sink
5.3.1 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the IEM-9452. Please make sure the purchased SO-DIMM complies
with the memory specifications of the IEM-9452. SO-DIMM
specifications compliant with the IEM-9452 are listed in Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 5-1.

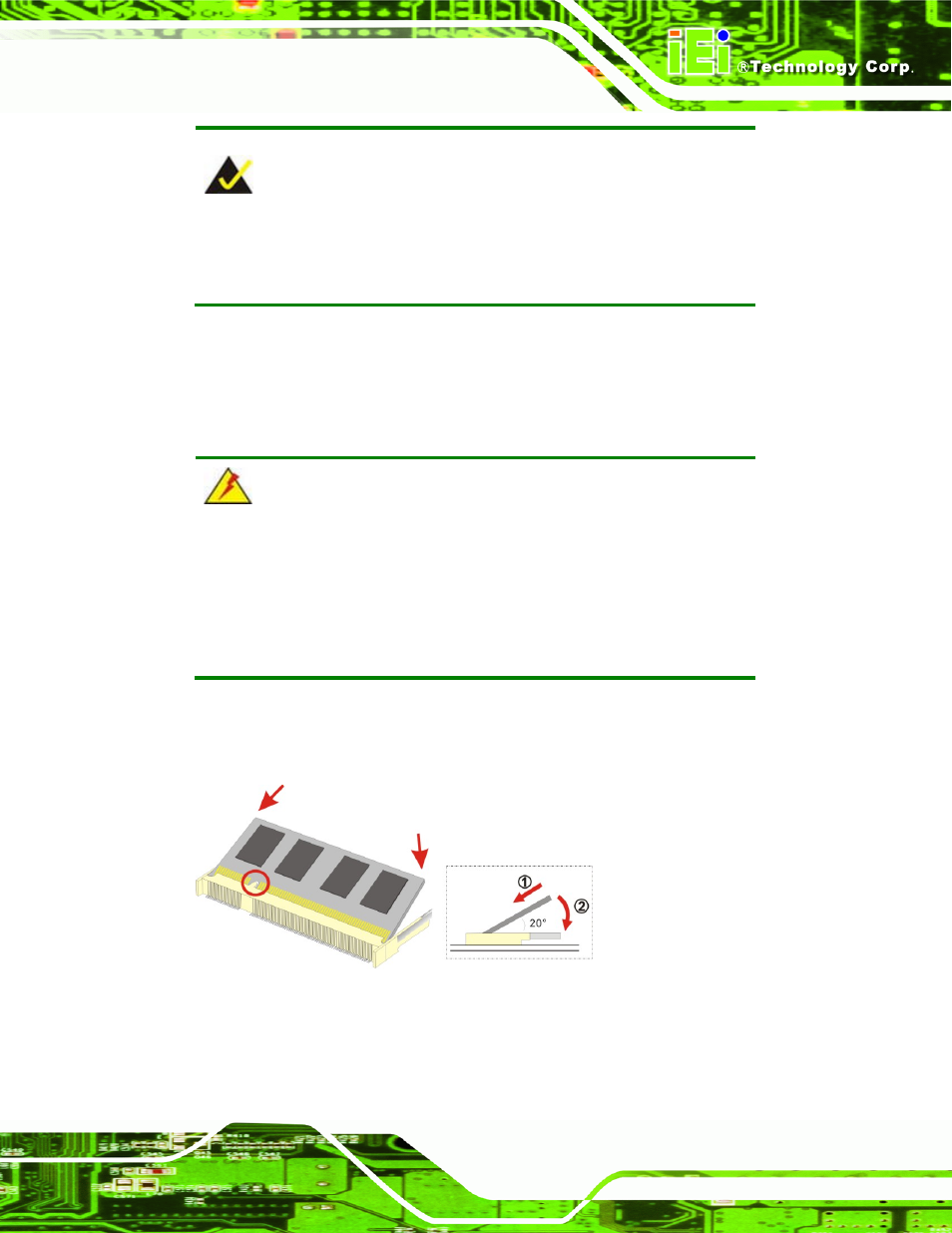

Figure 5-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the IEM-9452 on an anti-static pad.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
