IEM-9452 ETX Module
Page 37
4.2.3 ETX-X3 Connector
CN Label: X3
CN Type: 100-pin ETX connector
CN Location: See Figure 4-4
CN Pinouts: See Table 4-4
The standard ETX-X3 connector locations and pinouts are shown below.

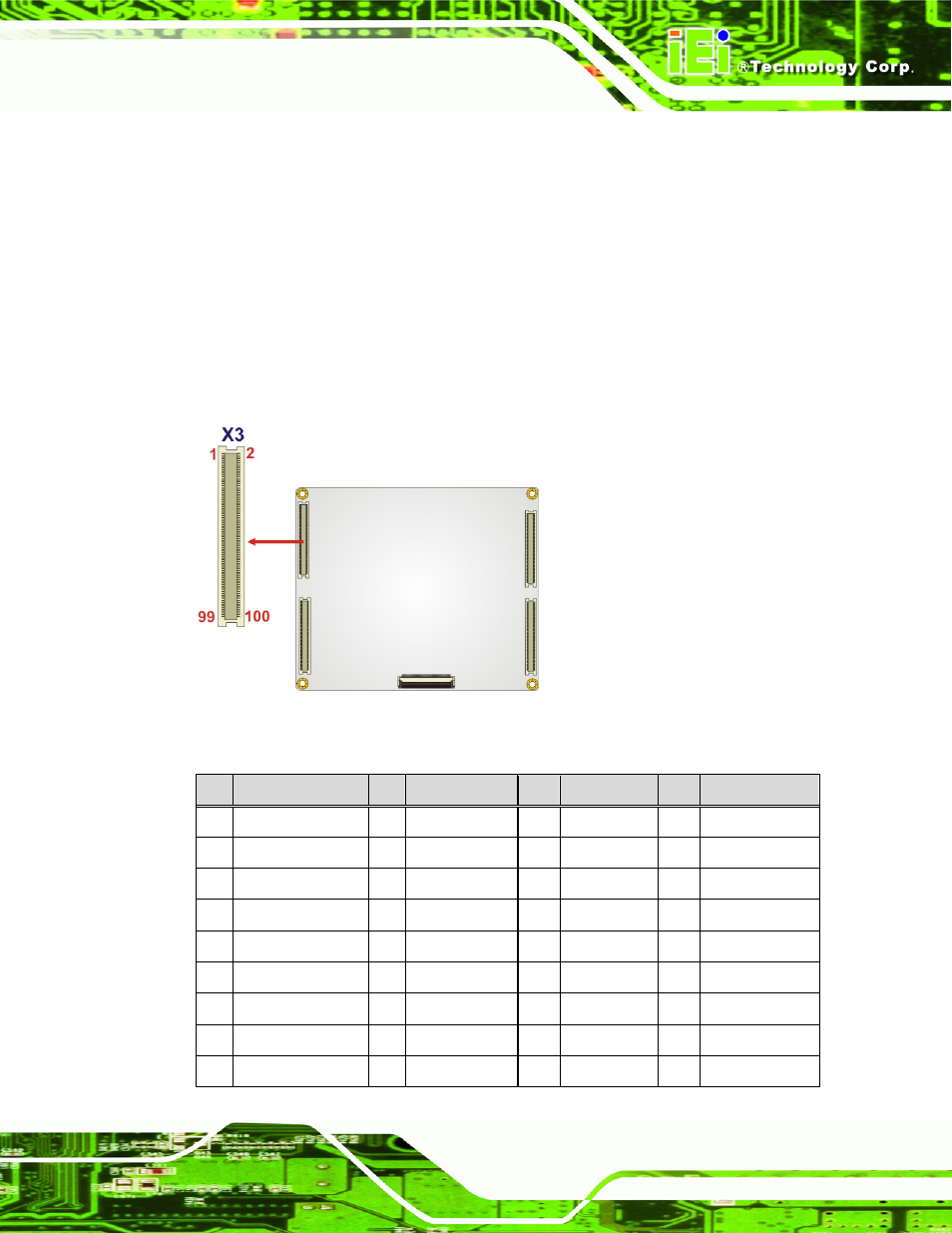

Figure 4-4: ETX-X3 Pinout Locations
Pin Description Pin Description Pin Description Pin Description
1 GND 2 GND 51 LPT/FLPY# 52 NC
3 CRT_RED 4 CRT_BLUE 53 VCC5 54 GND
5 H_SYNC 6 CRT_GREEN 55 STROBE# 56 ALF#
7 V_SYNC 8 DDCA_CLK 57 RESERVED 58 PD7
9 N/C 10 DDCA_DATA 59 IR_RX 60 ERROR#
11 LVDS_CLKB# 12 LVDS_DBN3 61 IR_TX 62 PD6
13 LVDS_ CLKB# 14 LVDS_DBP3 63 RXD1 64 PAR_IN#
15 GND 16 GND 65 GND 66 GND
17 LVDS_DBP1 18 LVDS_DBP2 67 RTS#1 68 PD5
