ZOLL Thermogard XP IVTM System Operation Manual User Manual
Page 74
Operation
43

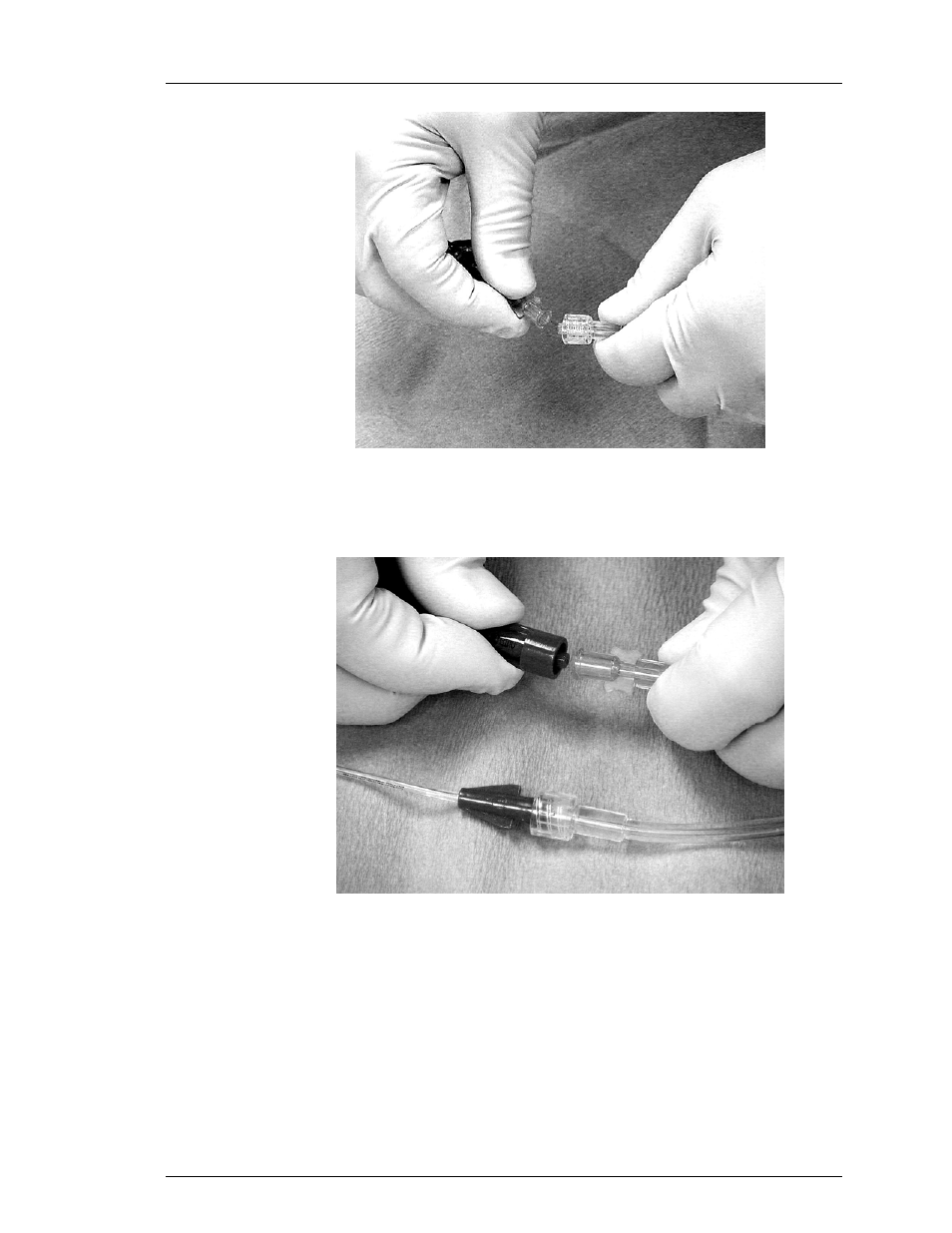

Figure 4-51. Disconnect the Connectors Using Aseptic Technique.
7.
Connect the female tubing connector to the male connector on the
catheter. The gender of the tubing connectors and the catheter
connectors assures that they cannot be connected backwards.
Figure 4-52. Connect the Tubing to the Catheter.
8.
Connect the male tubing connector to the female connector on the
catheter. Note that the return line is equipped with an inline flow-
indicator.
9.
Safely route the tubing so that it is not kinked or obstructed and cannot
be easily dislodged by a patient’s movement.
The System is now ready to begin treatment.
Once treatment has begun, confirm that saline is flowing through the tubing and
catheter circuit by observing the rotation of the inline flow indicator (see figure). If
600479-001 Rev 2 74/147
