The system display screen – ZOLL Thermogard XP IVTM System Operation Manual User Manual
Page 41
Operation
10
The System Display Screen
The System features a color display screen. The figure below shows the screen
as it appears during RUN.

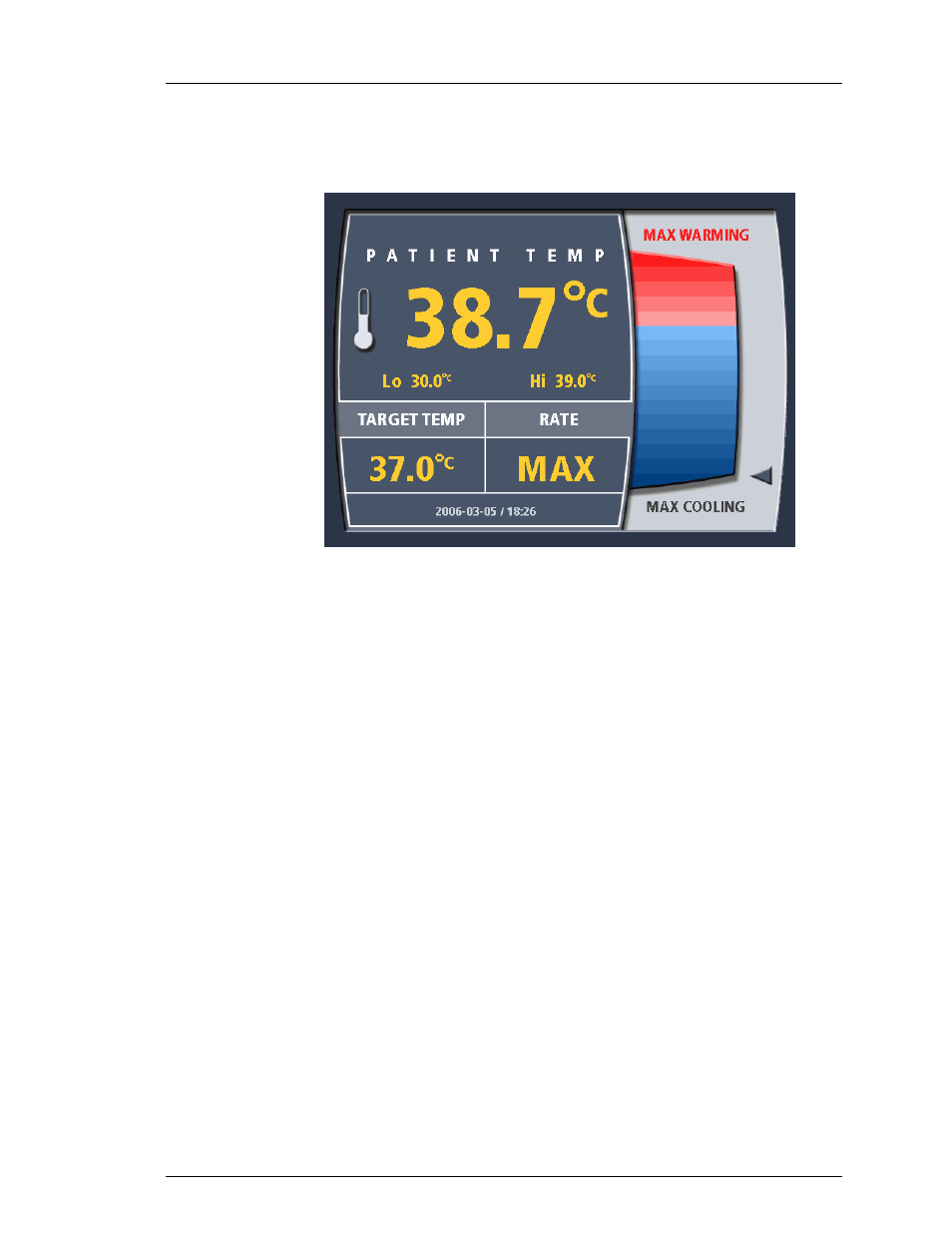

Figure 4-4. Operating Screen.
The upper left hand of the screen displays:
The patient temperature
The “Lo” and “Hi” patient temperature alarm values.
The lower left hand of the screen displays:
The programmed Target Temperature for the System
The programmed treatment mode/controlled rate value
The right hand side of the screen is used either:
To display the temperature of the coolant in the System coldwell (as
depicted above), or,
To present menu selections. The main menu of the System is
presented in the figure below.
600479-001 Rev 2 41/147
