3 Cable Testing with the FrameScope 350
Viewing Result Details
Viewing Result Details

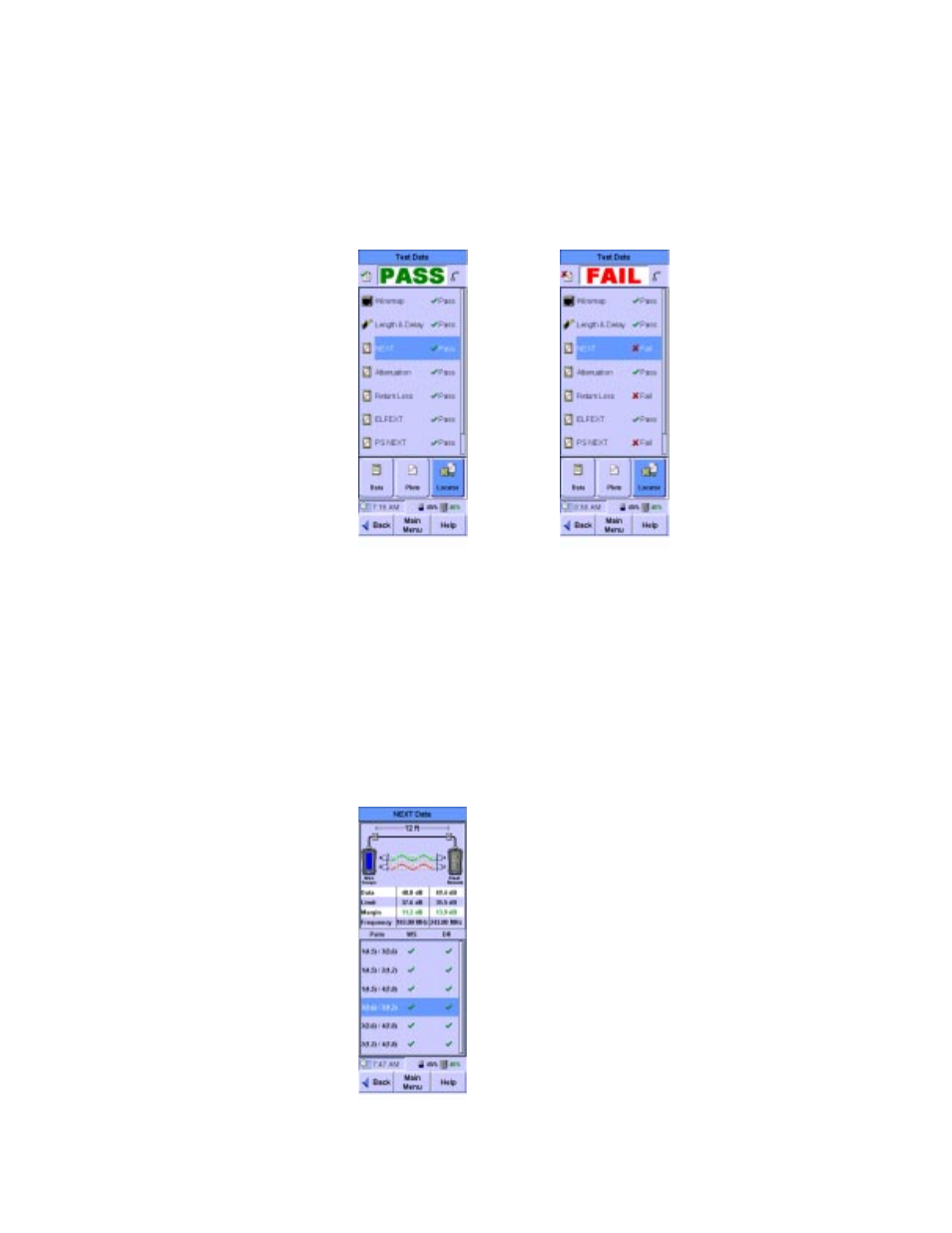

A Details button on Pass and Fail screens opens the Test Data screen.
The Test Data screen lists the test parameters and indicates passing or
failure for each.
To view detailed test data for one of the test parameters:
1 Press the name of the test parameter. The Test Data screen displays
buttons appropriate for the selected parameter.
For example, when NEXT is selected, the screen includes Data,
Plots
, and Locator buttons, while pressing Wiremap shows only the
Data button.
2 To view the Data screen for the selected test parameter, press Data.
The Data screen displays.
