152 Agilent FrameScope 350 User’s Manual
6 Expert Fiber Testing

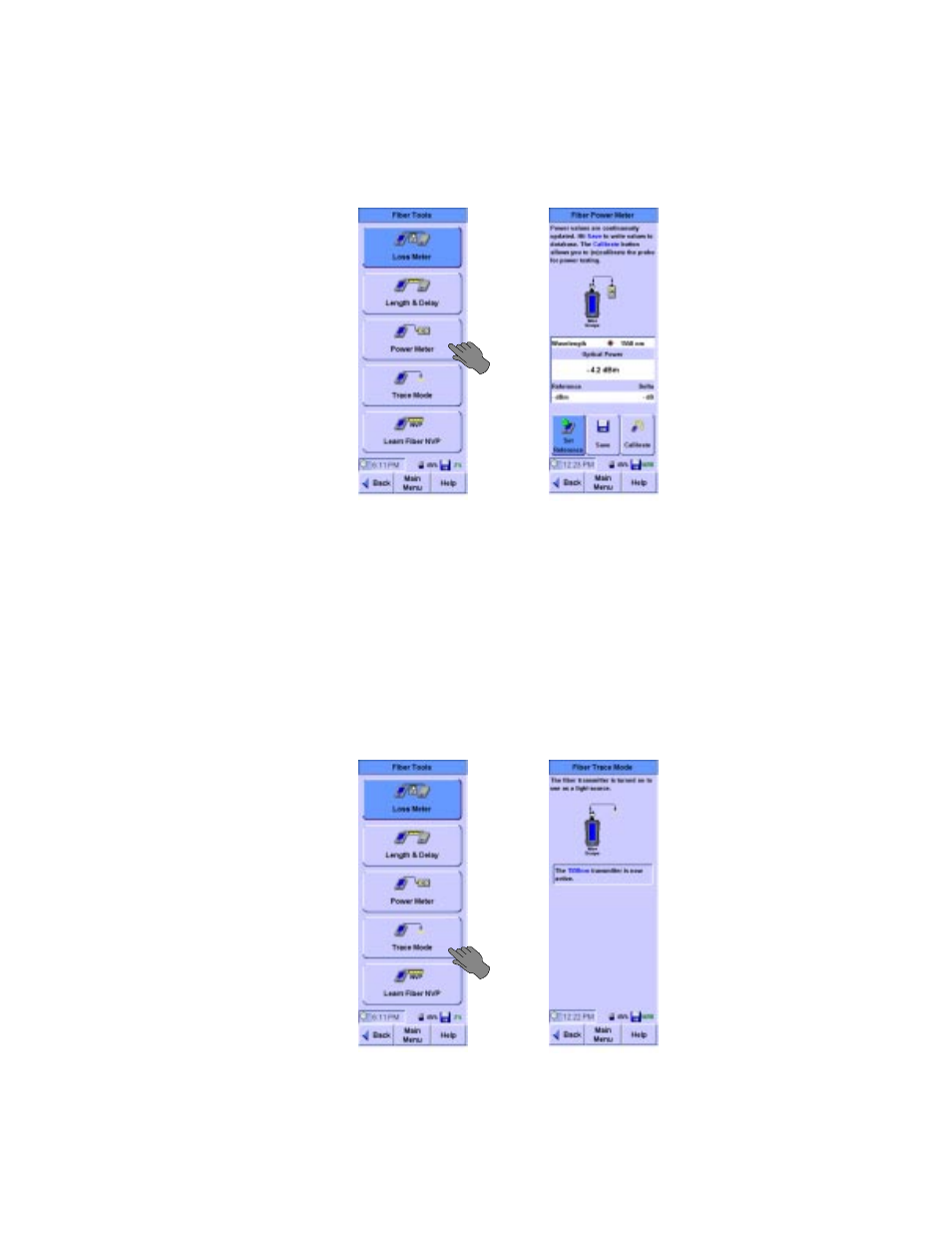

The Fiber Tools Menu
the one used for testing. This calibration is just for the Fiber Power
Meter. After calibration the Fiber Power Meter displays.
2 To set the current power value as a reference, press Set Reference.
The difference is shown in the Delta field. The actual measurement is
shown in the Optical Power field.
3 To write the current data table to the results database, press Save.
4 To calibrate the Power Meter, press Calibrate.
Using Trace Mode
To turn on the Fiber SmartProbe’s transmitter:
• On the Fiber Tools menu, press Trace Mode. The FIber Trace
Mode screen displays and indicates that the transmitter is active.
