Fiber Testing 4
Calibrating the Tester
Agilent FrameScope 350 User’s Manual 99
7 When the message below the diagram reads, “Ready to Calibrate,”
press OK. The Calibration window opens.
8 When the window reads, “Calibration Successful,” press OK in the
window. The Fiber Main Menu displays. Remove the reference
jumper to start testing.
Calibrating for Single-Ended Testing
1 Insert a Fiber SmartProbe
+
in the FrameScope,.
I‚‡r) Tvtyr€‚qrÃAvir ÃT€h ‡Q ‚ir†Ãˆ†rÃhÃyh†r Ãyvtu‡Ã†‚ˆ prÇuh‡Ã r„ˆv r†Ãh €vtȃÃirs‚ rÃ
ˆ†rÃ7rs‚ rÃphyvi h‡vtГ‚ Г‡r†‡vtÐv‡uÆvtyr€‚qrÃsvir à ‚ir†Ãhyh’†Ãp‚rp‡Ã‡urÃ
ƒ ‚ir†Г‡ˆ Г‚Г‡urÃA h€rTp‚ƒrÃhqÃ9ˆhySr€‚‡rÃvsȆrqÃhqÐhv‡Ãsv‰rÀvˆ‡r†
2 Connect a test jumper to the Fiber SmartProbe
+
.
3 Connect the two ends of the test jumper to each other, using a
coupler.
4 Turn on the FrameScope.

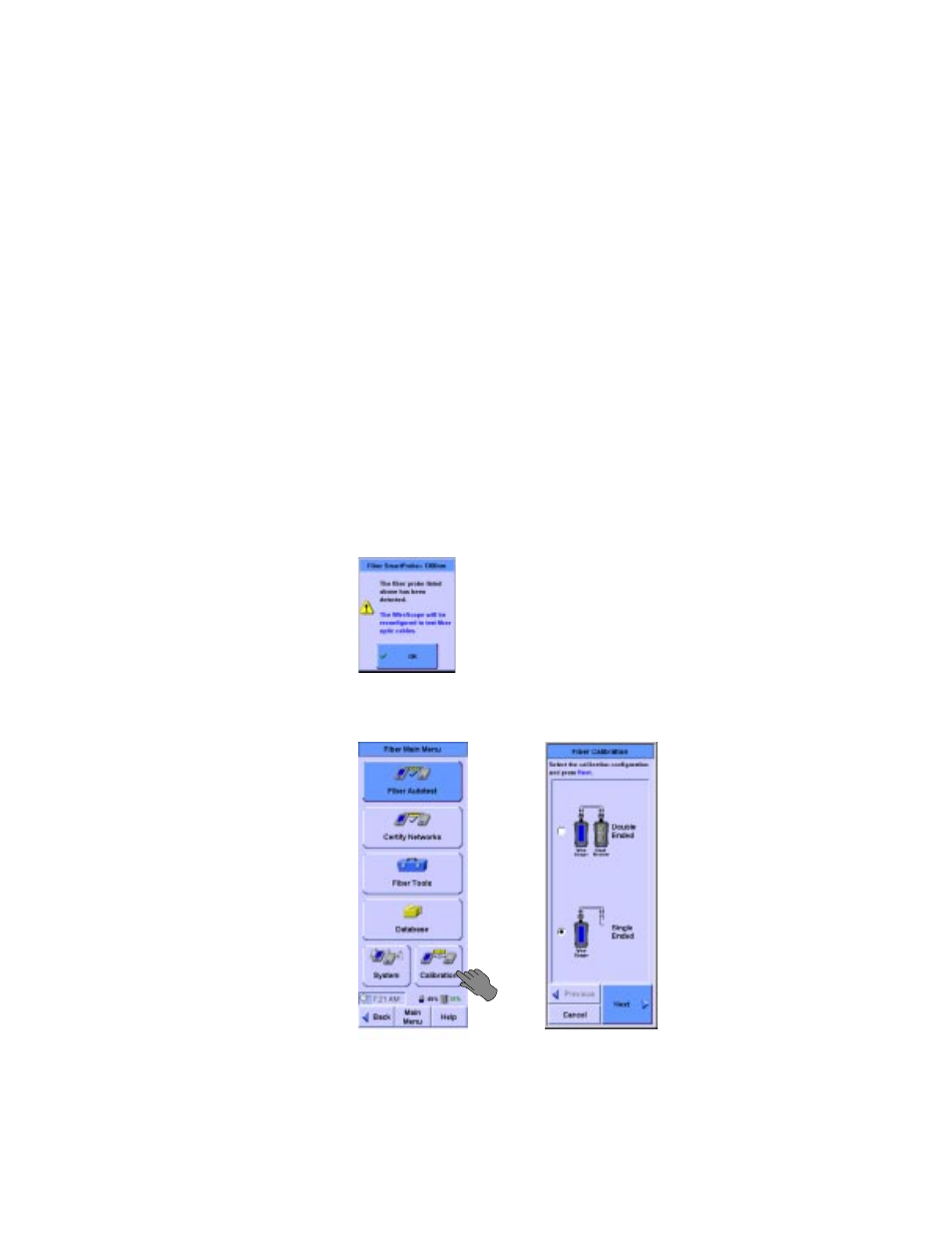

The FrameScope detects a Fiber SmartProbe
+
, and displays the
following window:
5 On the Fiber Main Menu, press Calibration. The Fiber Calibration
screen displays.
