Cable Testing in Expert Mode
The Expert Autotest Setup
3

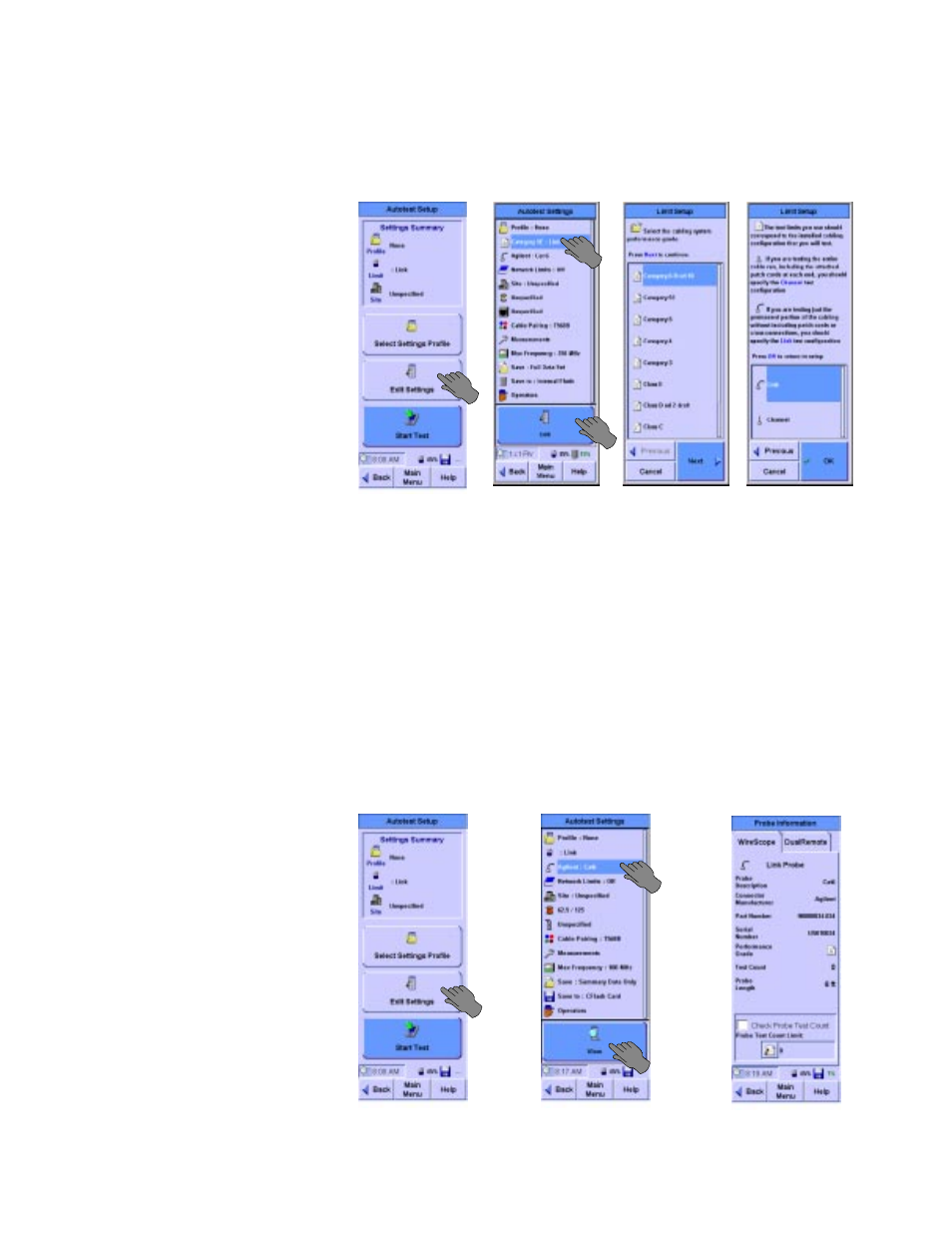

Then on the Limit Setup screen, select the desired cabling system
performance grade.
Ir)
UurÃp yyÃih ГГurГ vtuÃsÃurÃp rrÃuÃurÃyphvÃsÃurÃqhhÃuÃhqГvГГ
hГspvhyÃp yyÃih ГUГp yyÃrÃurÃp yyà pxr ГhГurÃyr à vtuÃsÃurÃ
A hrTpr
4
Then press Next. The next Limit Setup screen allows you to select
Link
or Channel test configuration.
Viewing Probe Information
The FrameScope can display details about the probes inserted
in the tester. If the probes are SmartProbes, the information
includes the number of tests the probes have performed.
To view detailed information on the probe currently inserted:
1
In Expert mode, press Autotest on the Main Menu. The Autotest
Setup screen displays.
