42 Agilent FrameScope 350 User’s Manual
2 Network Testing with the FrameScope 350
Generating Network Traffic

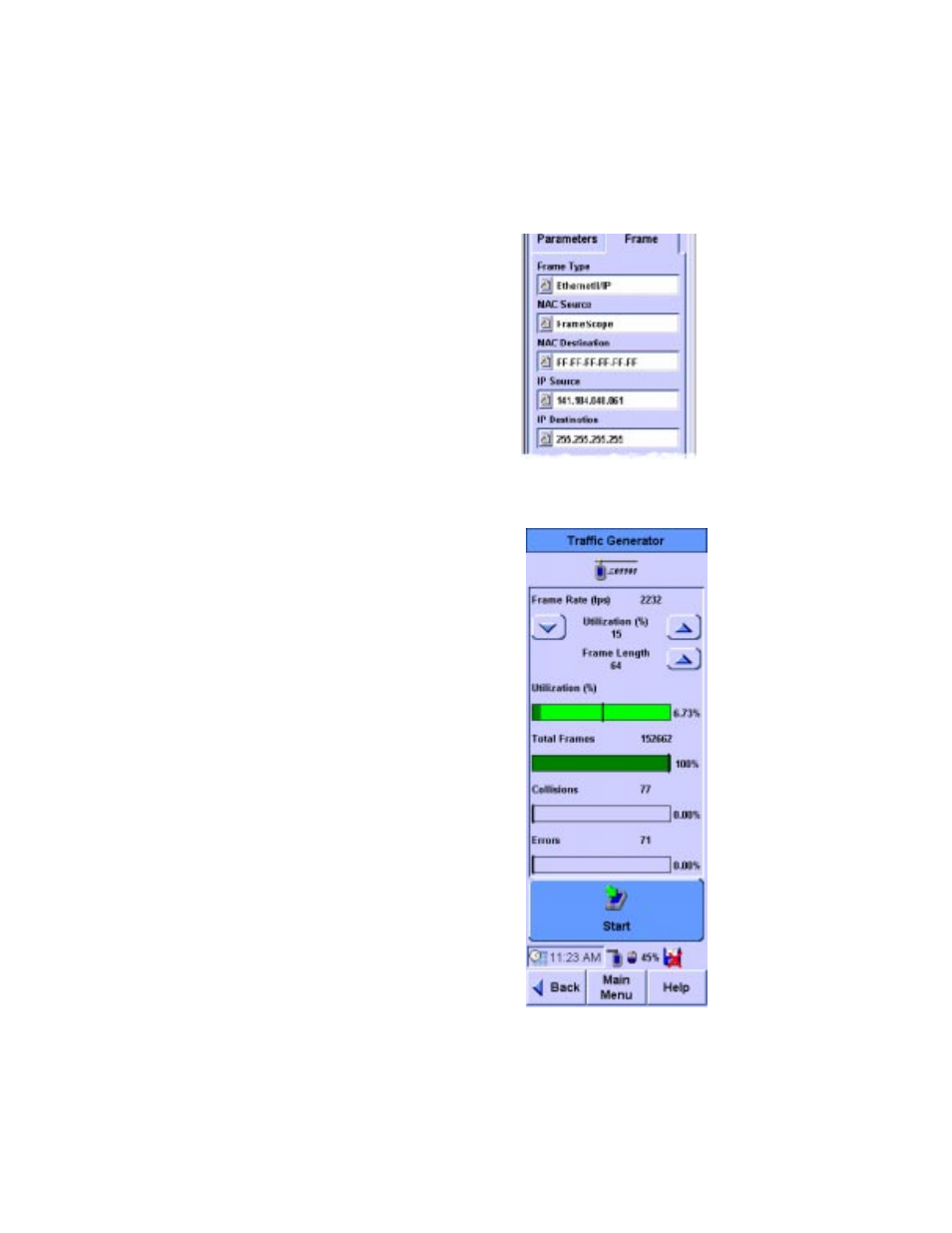

6 Press the box buttons to enter the Frame Type, MAC source,
and MAC Destination. See
“Traffic Generation” on page 206.
Note that if you select an IP type frame, you will get
additional selections for IP Source and IP Destination.
7 Press the Start button to begin generating traffic.
The Traffic Generator activity screen is displayed.
8 Observe the traffic statistics. For more information on the
results, see
“Traffic Generation” on page 206.
9 If you want to change traffic parameters press the Back key
to return to the Parameters and Frame tabs. To restart the
test press Start.
